█ General Output Circuit
Interface Type Applicable Signals Specication
B
[JP4-5] COM
[JP4-6] ONPOS
[JP4-7] SRDY
[JP4-18] ALM
- Max 30VDC, 50mA
- Recommended +24VDC or +5VDC

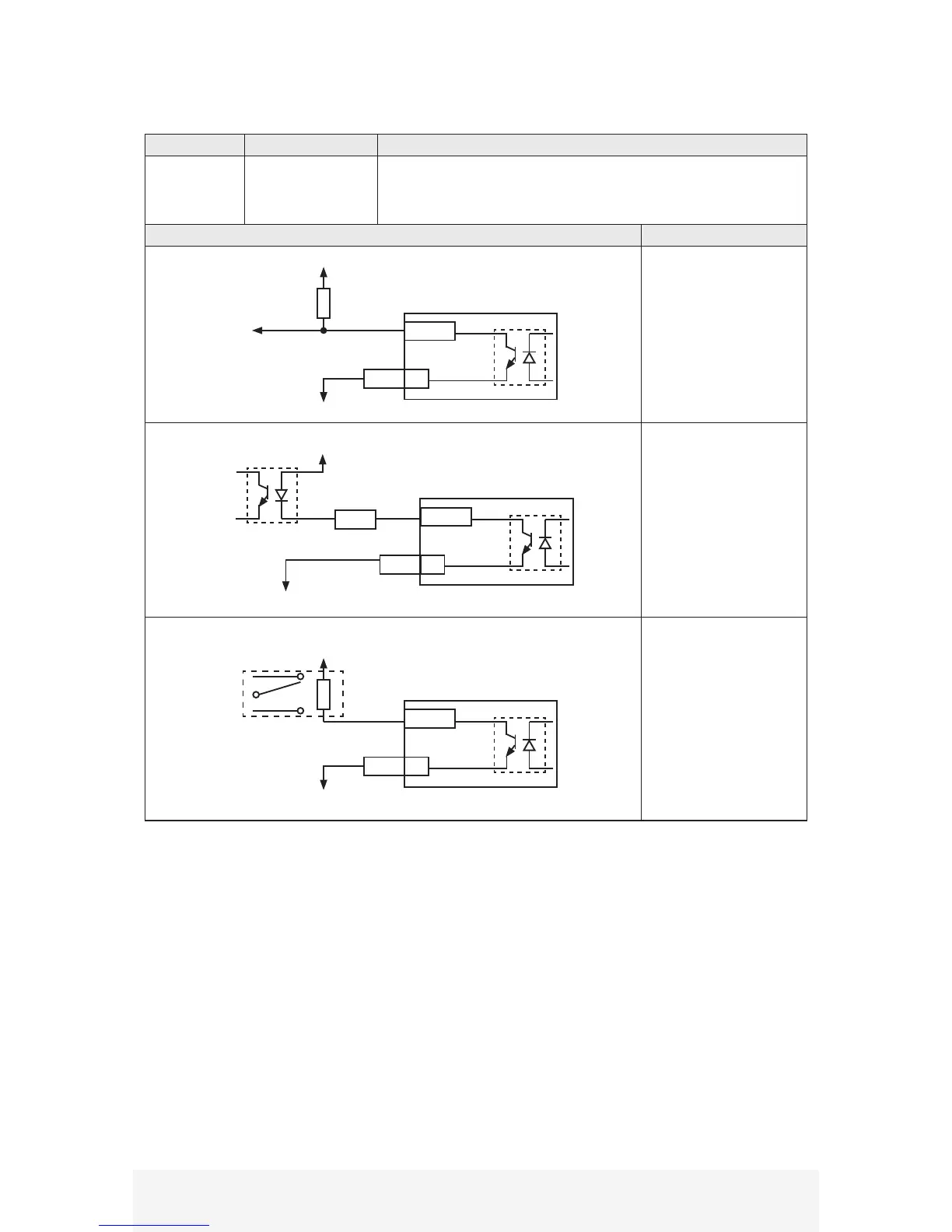

Circuit Example Notes
Collector
Photocoupler
Relay
5,6,7,18
COM 5
1kΩ
+5VDC
5,6,7,18
COM 5
+5VDC
1kΩ
5,6,7,18
COM 5
5~24VDC
