5-4
EN
ENGINE
MANUFACTURER
YEAR MODEL ACTUATOR NOTE
YAMAHA
2010 TO DATE F150—F300 4.2L V6 EA1000 See below
VF150-VF250 SHO EA1300 Bass boat applications
*
F350 5.3L V8 EA1000 See below
MERCURY
2019 TO DATE ALL 150+ as CMS EA1000 See below
ALL 150 PROXS—250 PROXS EA1300 Bass boat applications
*
HONDA
2010 TO DATE BF150—BF250 EA1200 See below
SUZUKI
1996 TO DATE DF100—DF140 EA1100 See below
DF150—DF350
DF250SSTL
EA1400 Bass boat applications
*
*
Contact Dometic for use of the bass boat actuator with engines not listed here.

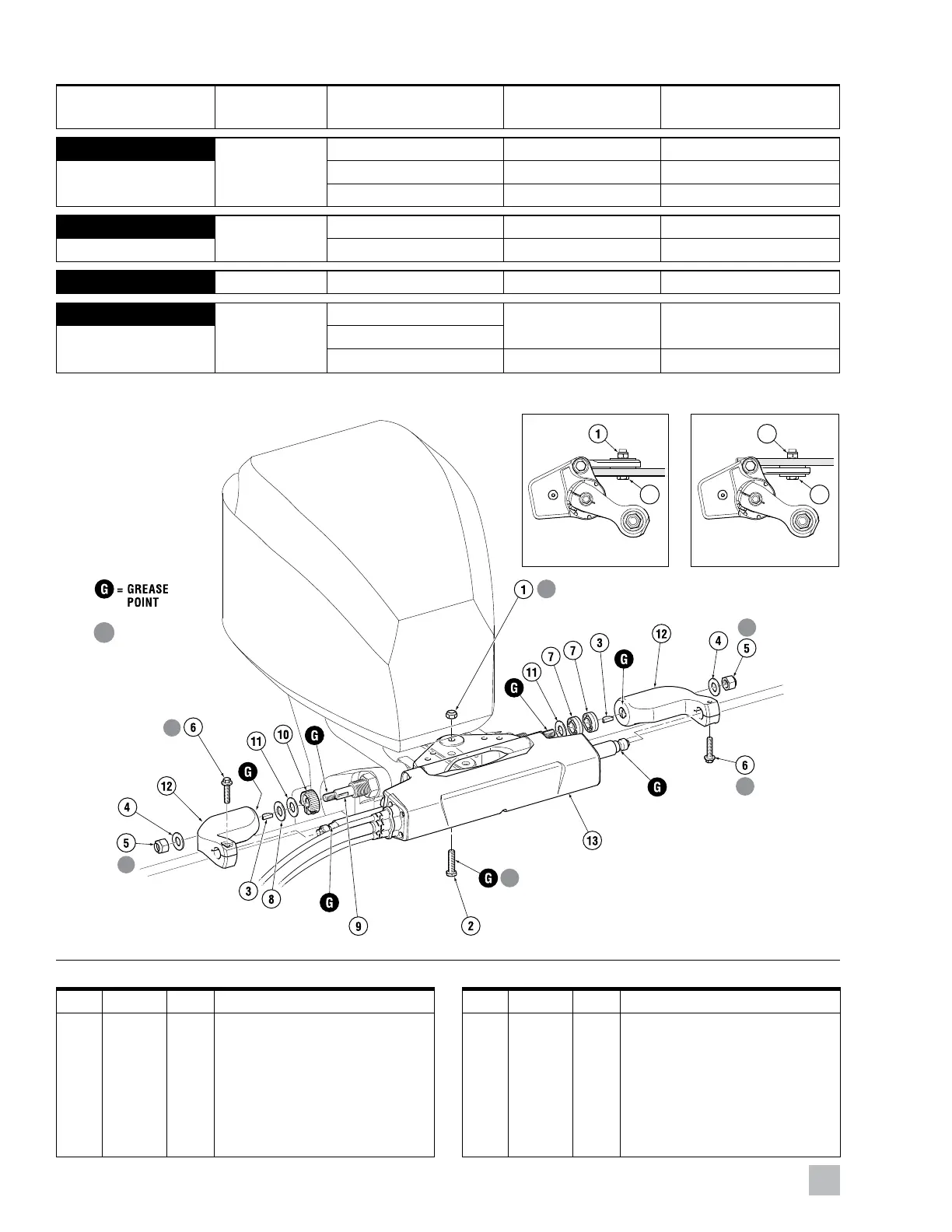

Figure 5-1.
ITEM PART # QTY DESCRIPTION
1 113529 1 Nut, 3/8” NF Nylok
®
SS
2 113225 1 HHCS 3/8” UNJFX 1.35 HSS
3 260130 2 Key, Support Rod
4 202027 2 Washer, Flat, 1/2” SS
5 192126 2 Nut, 1/2” NF Nylok
®
NI Plate Br
6 351166 2 Screw, flange, 5/16”
7 995876 2 Spacer, Thick
ITEM PART # QTY DESCRIPTION
8 996689 1 Spacer, Thin
9 351154 1 Support Rod
10 828085 1 Adjusting Nut & Screw, SS, Teflon
Coated
11 202300 2 Washer, Flat, 5/8” SS
12 351167 2 Support Brackets
13 EA1XXX 1 Electric Actuator
T
= TORQUE
POINT
T
TORQUE to
22 ft.lb.
T
T
TORQUE to
45 ft.lb.
TORQUE to
22.5 ft.lb.
T
TORQUE to
22 ft.lb.
TORQUE to
22.5 ft.lb.
T
T
TORQUE to
45 ft.lb.
MERCURY/YAMAHA/HONDA
SUZUKI
1
22
IN REAR HOLEIN REAR HOLE
MOUNT UNDER TILLER ARM AND MOUNT OVER TILLER ARM AND
SEE WARNING ON PAGE 5-2
