5.3.3 Harness protection
The actuator harness consists of three cables terminated at a single molded
connector at the actuator end. For a tidy and reliable installation, the three
cables must be properly bundled together in the splashwell. There are two
methods you can use:
1. Use tie wraps to secure the cables together every 6” (150 mm) along
the harness from the actuator to the bulkhead fitting.
2. For a cleaner looking installation, you can use a braided plastic cable
sleeve (Techflex or similar). The harness connector has a molded
feature for securing the sleeve with a tie wrap. At the bulkhead fitting
you can either route the sleeve through the fitting or use a tie wrap to
secure it.

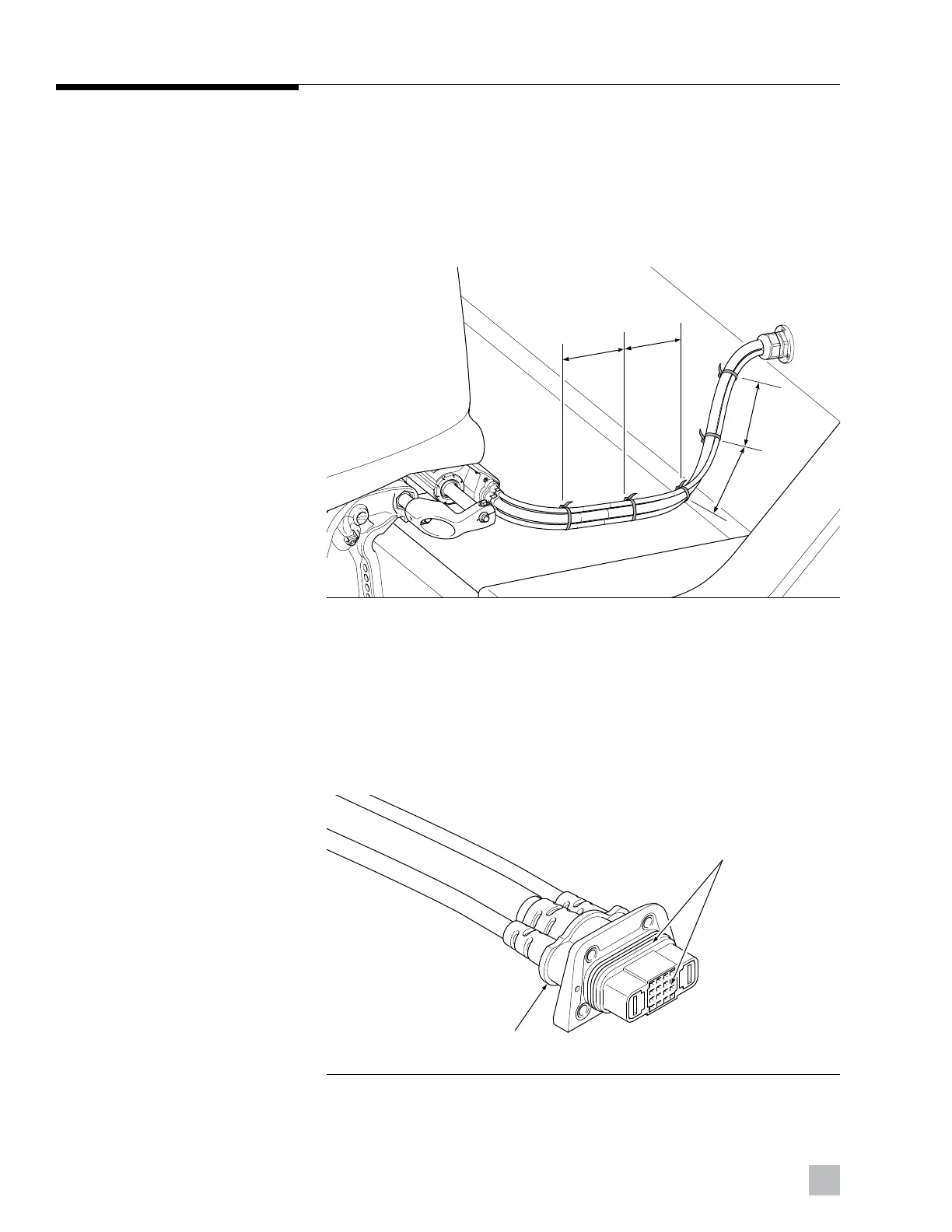

Figure 5-9.
Figure 5-10.
SECURE SLEEVE HERE
DIELECTRIC GREASE
PRE-APPLIED HERE
6"
(150 mm)
MAX
6"
(150 mm)
MAX
6"
(150 mm)
MAX
6"
(150 mm)
MAX
