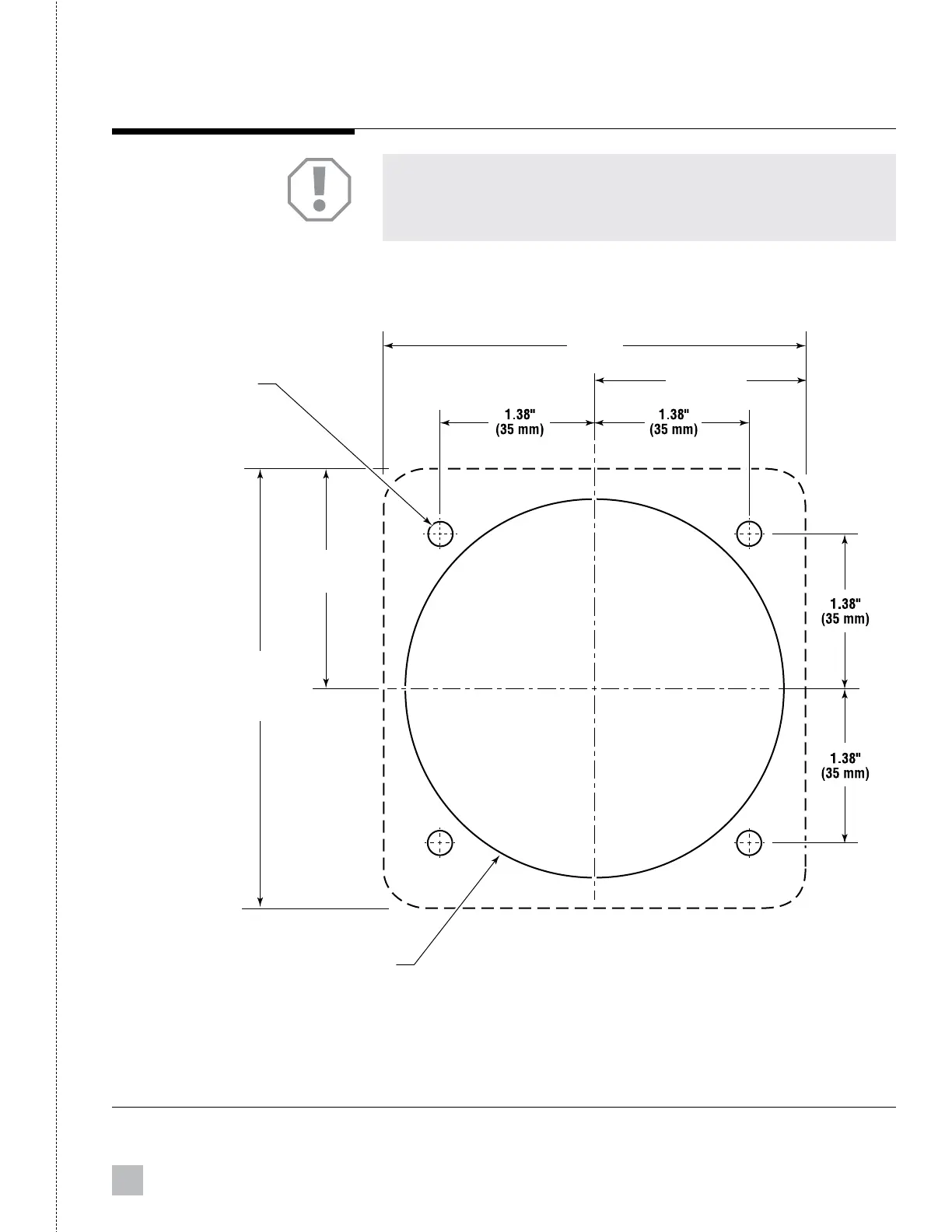

Figure A-5. Color CANtrak Display Mounting Template.
A.2 CANtrak display template
NOTICE!
If this template has been downloaded electronically or copied from
another document, please verify all template dimensions prior to cutting.
Print/copy reproductions may be scaled differently.
3.38" – 3.5" DIA.
(86 –89 mm)
OVERALL NOMINAL
3.775"
(96 mm)
OVERALL
NOMINAL
3.937"
(100 mm)
1.97"
(50 mm)
1.88"
(48 mm)
0.22" DIA.
(5.6 mm)
4 PLACES
✁
