5-7
EN

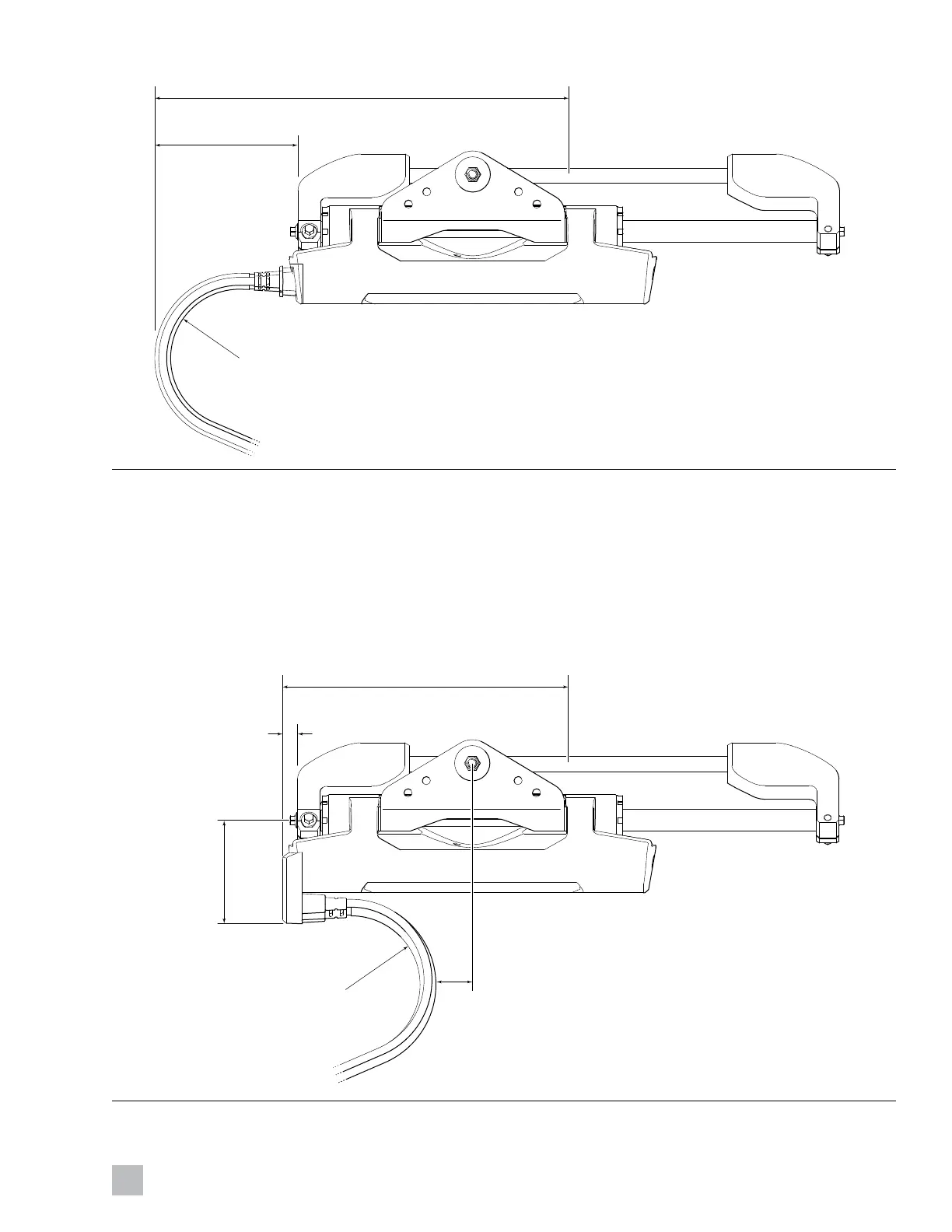

Figure 5-5. Minimum clearance for straight actuator harness.
Figure 5-6. Minimum clearance for 180° actuator harness.
(421 mm)
5.5"
(140 mm)
R3.5" (89 mm) MIN.
(298 mm)
1.125" (29 mm)
11/16"
(17 mm)
4.22"
R3.5"
(89 mm)
MIN.
The 180° actuator harness exits out toward the port side of the actuator,
wrapping around the front of the actuator housing. This is useful for boats
with limited splashwell side clearance. Be sure to check for adequate
splashwell depth when using the 180° harness as it protrudes farther out
from the front of the actuator.
