Specifications RV So Start Accessory
qq
ww
ee

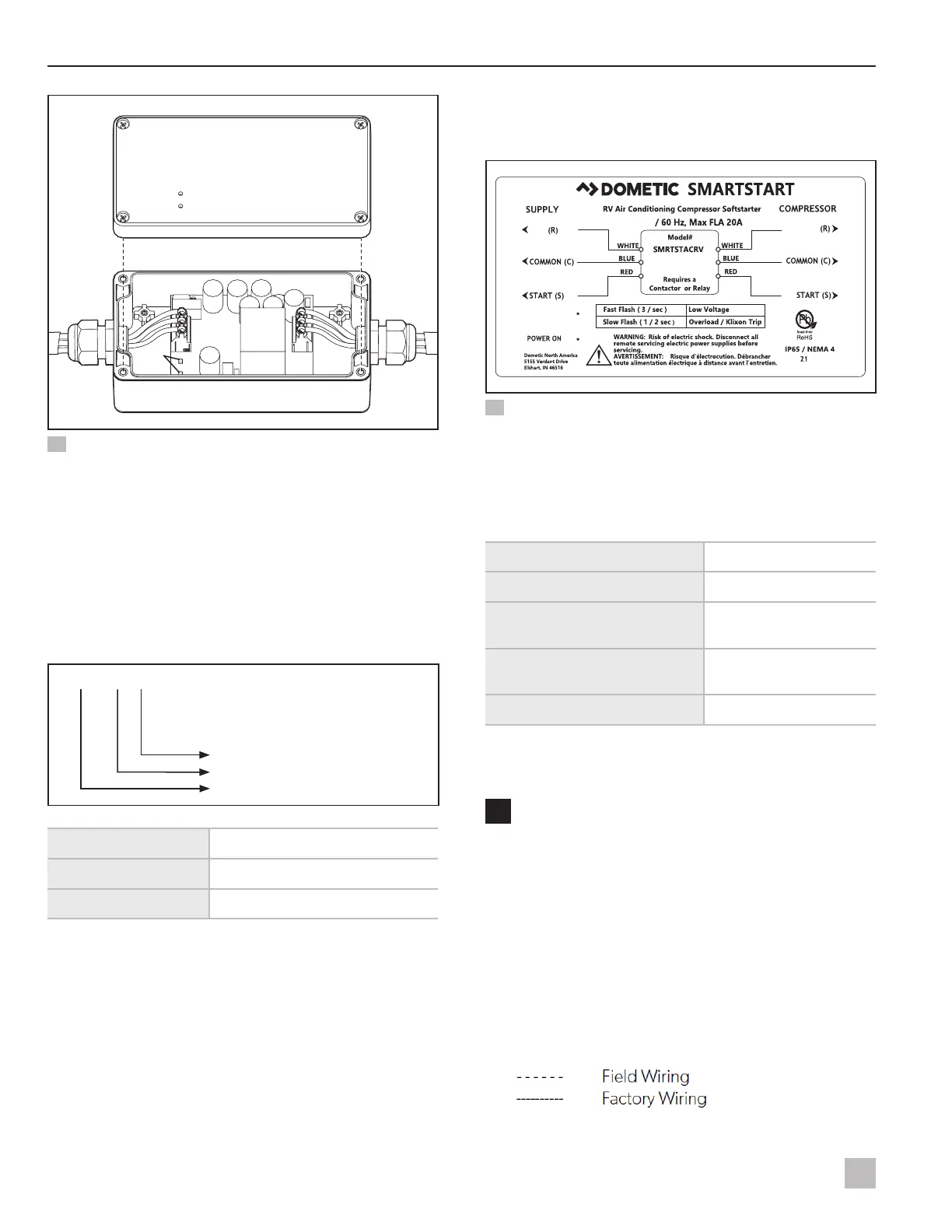

10 Device components
q
Device cover
screws
e
LEDs (indicate supply
side of device)
w
Device cover
4.4 Model identification
This section describes the breakdown of a model
identification number.
SMRTST - AC - RV
Application
Appliance
Product
Product SMRTST - Smart Start
Appliance
AC - Air Conditioner
Application
RV - Recreational Vechicle
Product
SMRTST - Smart Start
Appliance
AC - Air Conditioner
Application
RV - Recreational Vehicle
4.5 Data plate
This section describes the device data plate.
RUN
© 20
Design Protected
RUN
FAULT LED
Item# 9610002970
120VAC
11 Device data plate
The device data plate provides information specific to
the device and is located on the device cover.
5 Specifications
Full load current
<20 A
Frequency range
60 Hz ±3 Hz
Maximum duty cycle at rated
ambient temperature
15 starts per hour
Maximum operating
ambient temperature
140 °F (60 °C)
Enclosure rating
IP65/NEMA4
6 Wiring diagrams

WARNING: Electric shock hazard.
Turn the power off before performing any electrical
installation or maintenance activities. Failure to
obey this warning could result in death or serious
injury.
This section shows examples of the product wiring.
The AC and ADB Wiring Diagram definitions:
• 120 VAC; 60 Hz 1 PH
• Copper conductors only

Dometic SmartStart SMRTSTACRV Specifications

General

Brand	Dometic
Model	SmartStart SMRTSTACRV
Category	Controller
Language	English
