Maintenance Section
-186-
Fuses, Bulbs, Circuit Breaker &
Relay - Change, Reset
Fuses
NOTE: If a fuse filament separates, use only the
same type and size fuses for replacement.
If the filament in a new fuse separates,
have the circuits and instruments checked.
NOTICE
Always replace fuses with ones of the correct
ampere rating.

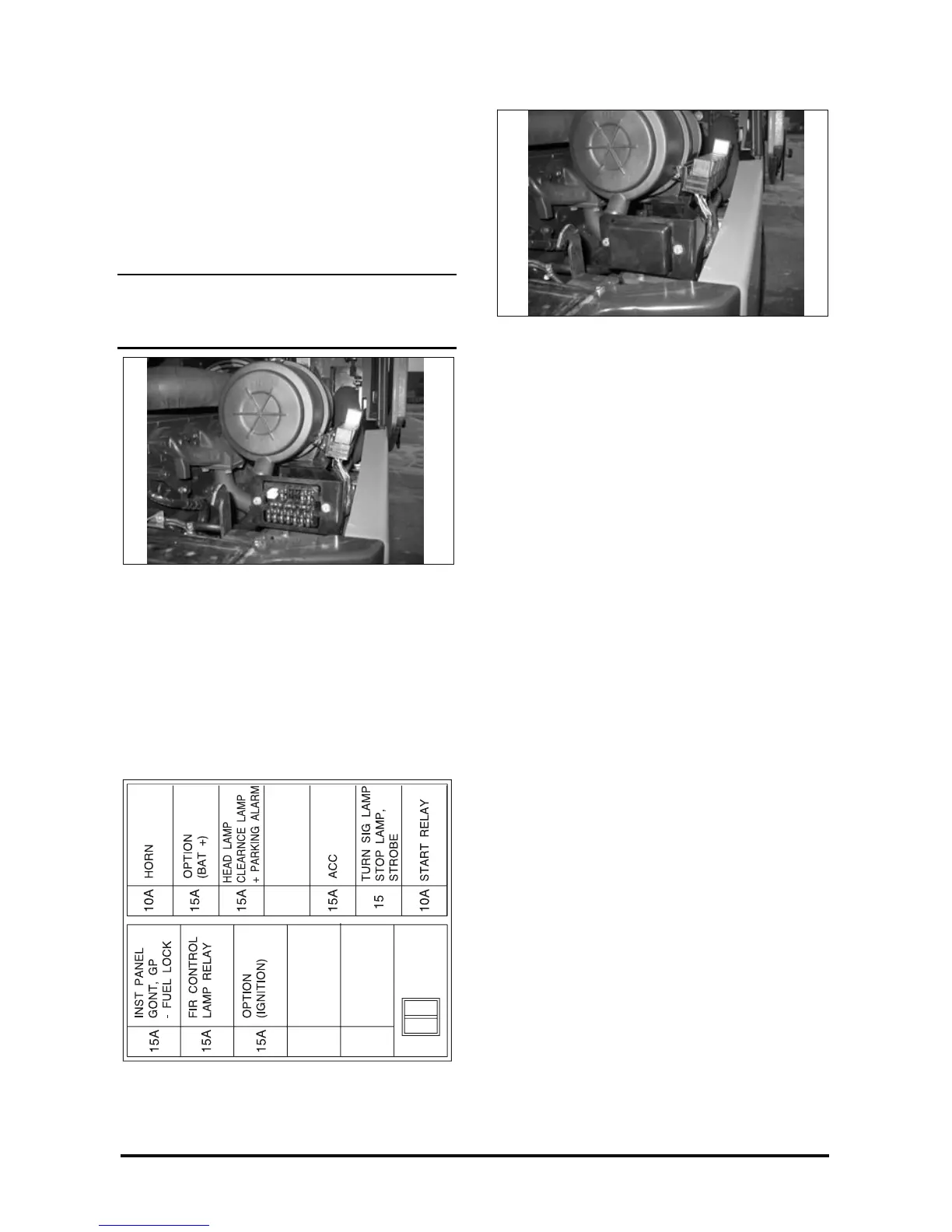

Typical Example
Check the fuses. Use a flashlight, if necessary.
Fuses are identified as follows:
1. Horn - 10 amps.
2. Head/Rear Lamp - 15 amps.
3. Fwd./Rev. Solenoid, lamp Relay & Back-up
Lamp/alarm - 10 amps.
4. Instrument Panel & Fuel Shutoff - 15 amps.
5. Turn Signal Lamp, Stop/Strobe Lamp & C.S.D.
6. Start Relay - 5 amp.
Check the fuses. Use a flashlight, if necessary.
Remove the front cover from the fuse box located
under the cowl.
Fuse - Protects an electrical circuit from an
overload. Opens (filament separates) if an overload
occurs.
Bulbs
Bulbs are identified as follows:
1. Bulb-head lamp halogen (12V-35W)
*2. Bulb-back up (12V-10W)
*3. Bulb-turn signal (12V-23W)
*4. Bulb-stop & tail (12V-23/8W)
*Optional lamp or light
