Operation Section
-75-

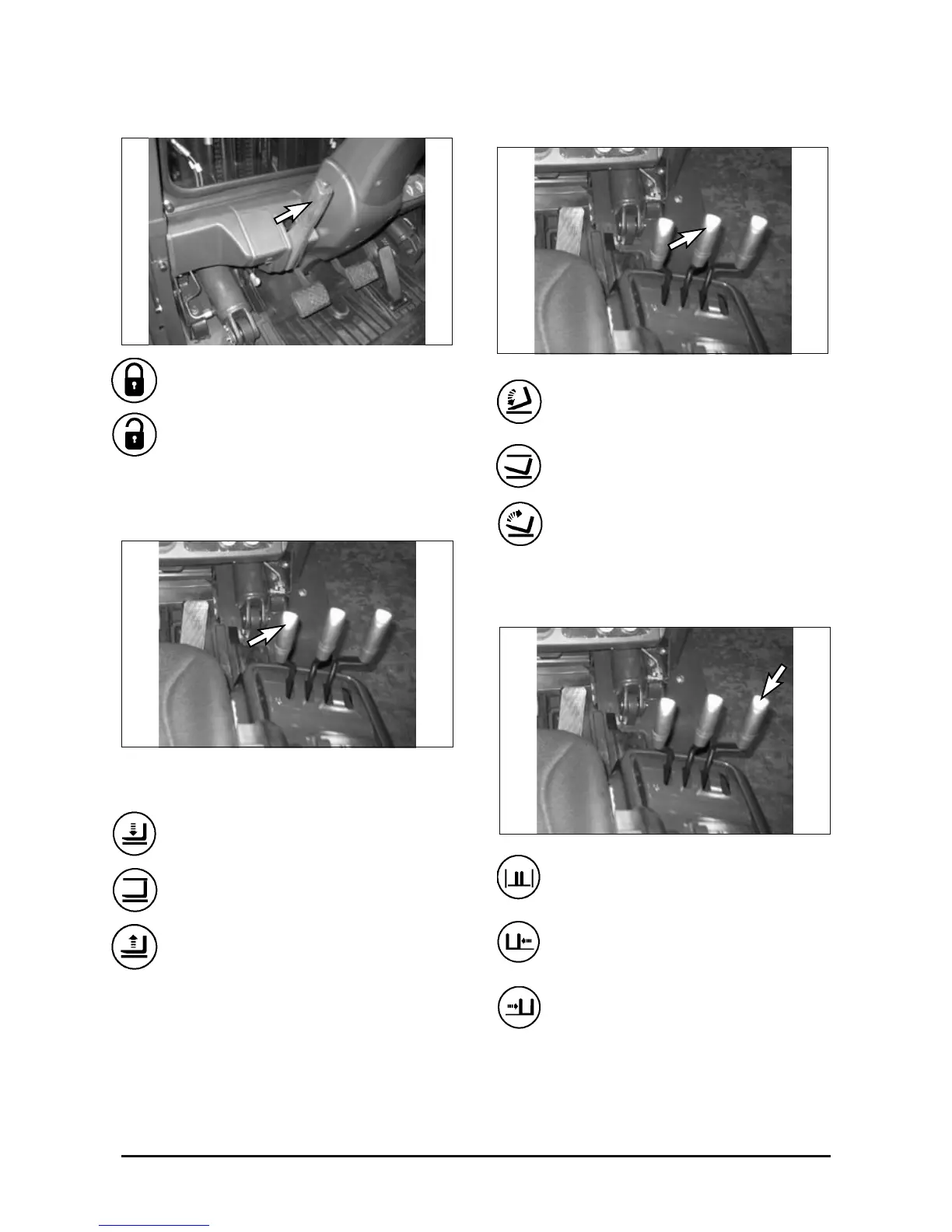

Parking Brake Lever
Pull the lever BACK to engage the parking
brake.
Push the lever FORWARD to release the
parking brake.
Lift Control
NOTE: To prevent a sudden change of position of
the load, operate all lift, tilt and attachment
controls smoothly.
1. Lower Position - Push the lever
FORWARD smoothly to lower the load.
2. Hold Position - When the lever is
released it will return to the HOLD or center
position. Lifting or lowering action will stop.
3. Lift Position - Pull the lever BACK
smoothly to lift the load.
Tilt Control
1. Mast Tilt Forward - Push the lever
FORWARD smoothly to tilt the mast
forward.
2. Mast Hold - When the lever is released
it will return to the HOLD or center position.
Tilting action will stop.
3. Mast Tilt Back - Pull the lever BACK
smoothly to tilt the mast backward.
Sideshift Attachment (If Equipped)
1. Sideshift Left - Push the lever
FORWARD to shift the carriage to the left.
2. Sideshift Hold - When the lever is
released it will return to the HOLD or
center position. Sideshifting action will
stop.
3. Sideshift Right - Pull the lever BACK to
shift the carriage to the right.
