DV11
Operation and Maintenance
105
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

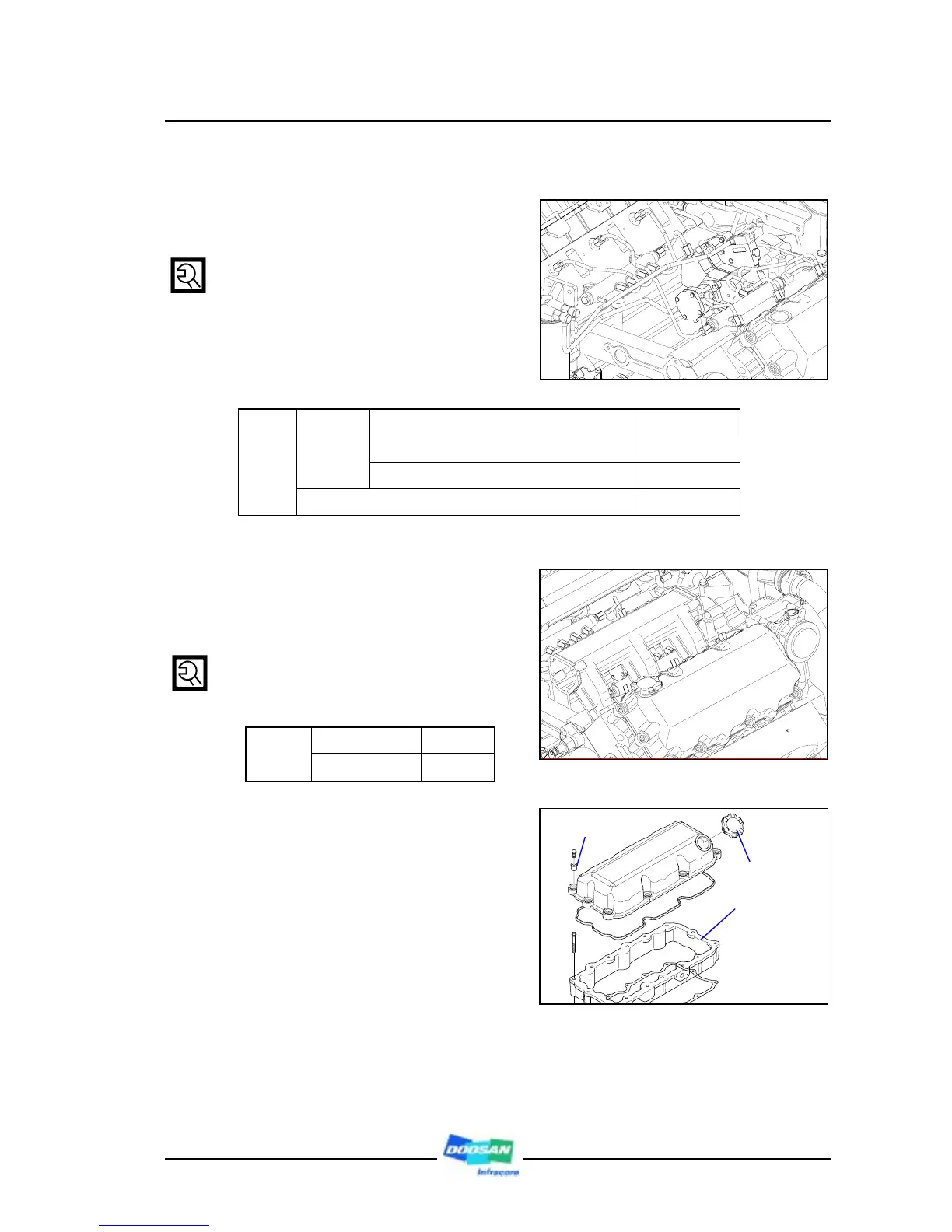

3.3.22. Common rail & high pressure pipe
z Assemble the common rail on the
cylinder block.
z Install the fuel high pressure pipe
between the common rail and the
fuel high pressure connector, then
tighten the cylinder by cylinder with
specified torque.
Side of common rail 3.0 kg.m
Side of fuel high pressure connector 3.0 kg.m
Fuel high
pressure
pipe
Common rail from fuel high pressure pump 3.0 kg.m
Tor que
Common rail fixing bolt 2.2 kg.m
3.3.23. Cylinder head cover
z Attach a new gasket on the surface
of cylinder head where the cover is
to be installed.
z Assemble the cylinder head cover
by tightening the fixing bolts.
Middle cover 3.6 kg.m
Tor que
Cylinder head
cover
2.2 kg.m
z Insert the oil filler cap.
Oil filler cap
