DV11
Operation and Maintenance
106
Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A

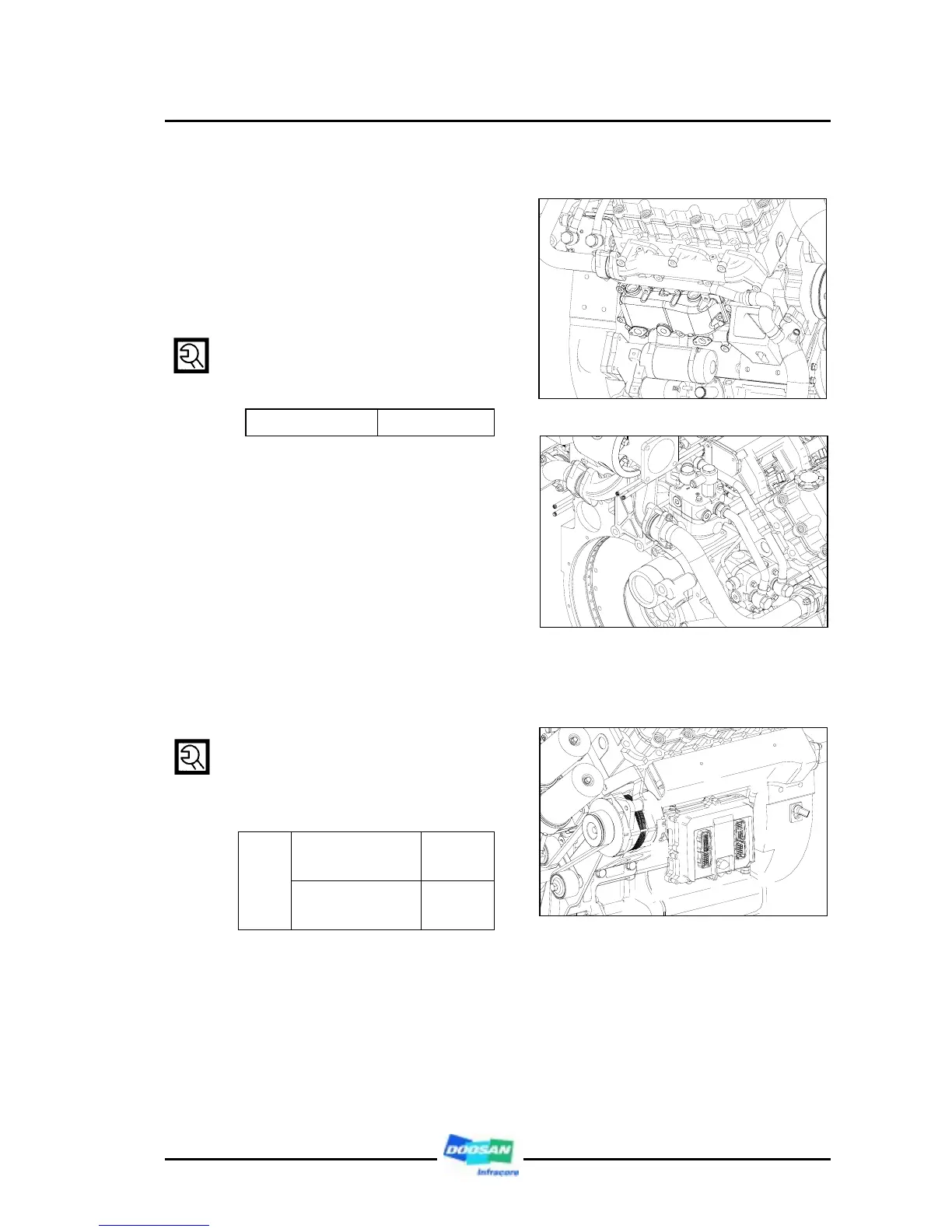

3.2.24. Exhaust manifold
z Attach a new gasket to the exhaust
manifold.
z Fix the pipe that is connected
exhaust manifold by tightening the
fixing bolts.
z Assemble both sides in the same
method as above.
Torque 8.0 kg.m
3.3.25. Electric control unit
z Install the electric control unit fixing
bracket on the cylinder block, then
assemble the electric control unit.
Bracket fixing bolt
4.5 kg.m
Tor que
Electric control
unit fixing bolt
10±2 N.m
z Assemble the electric control unit
(ECU) according to the right figure
order.
1
1
2
4
3
6
5
8
7
