DV11
Operation and Maintenance
94

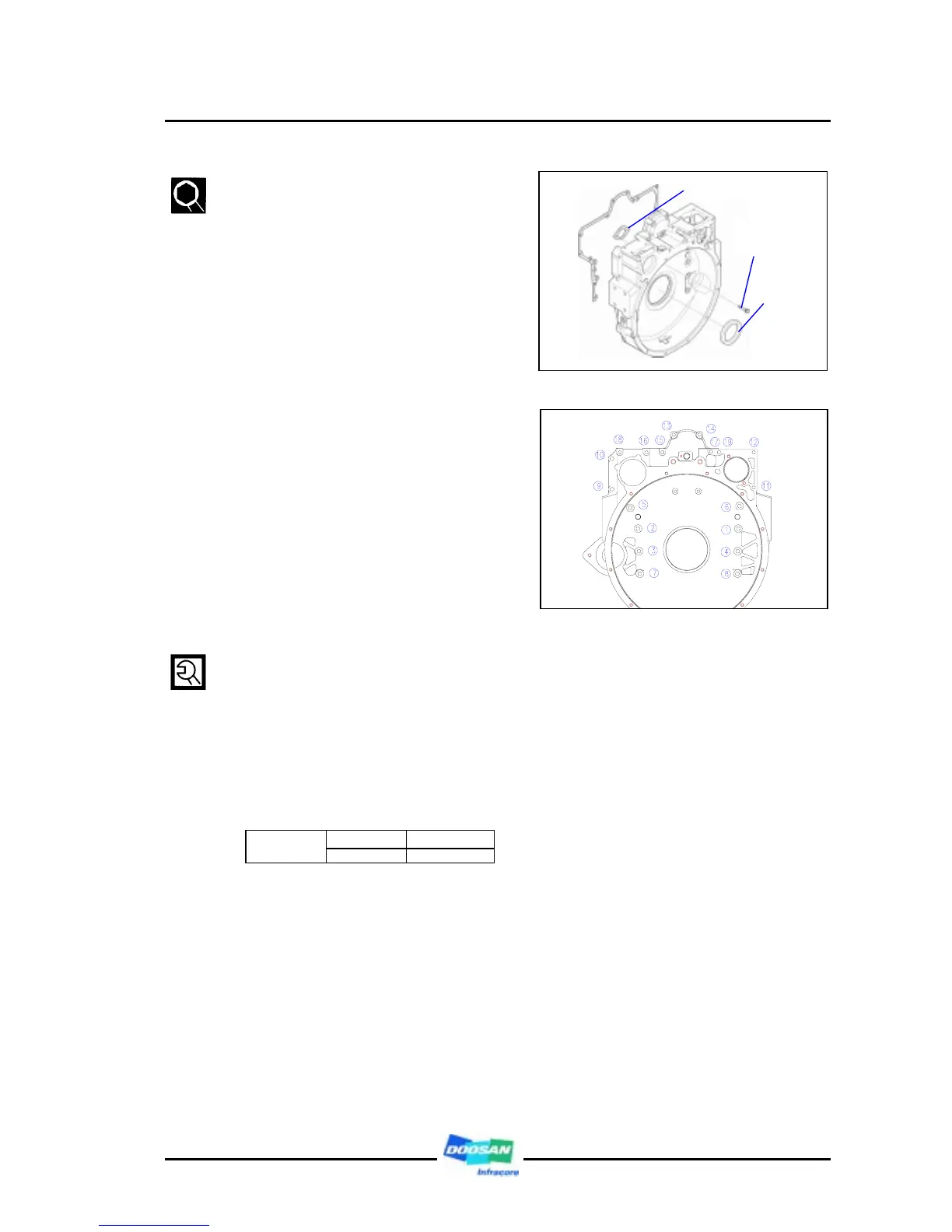

Engine Reassembly
Printed in Mar. 2005 PS-MMA0608-E1A
z Coat the oil seal (P.T.F.E.) with
lubricating oil and assemble the oil
seal carefully for it not to deviate or
be damaged by means of special
tool. (Mandrel for assembling.)
z Attach the gasket on the surface of
cylinder block where the flywheel
housing is to be installed. (In order
to prevent the gasket slip down,
coat a grease on the cylinder block
surface.
z Temporarily assemble 2ea of guide
bolts for installing the flywheel
housing to the cylinder block.
z After fitting the flywheel housing
holes to the guide pins and engage
temporarily 2 ∼ 3 threads of fixing
bolts, and according to the
tightening order (zigzag method)
tighten them in the specified torque.
M10 7.5 kg.m
Tor que
M12 11.2 kg.m
Thrust washer
Thrust washer
fixing bolt
Oil seal
To Next Page
