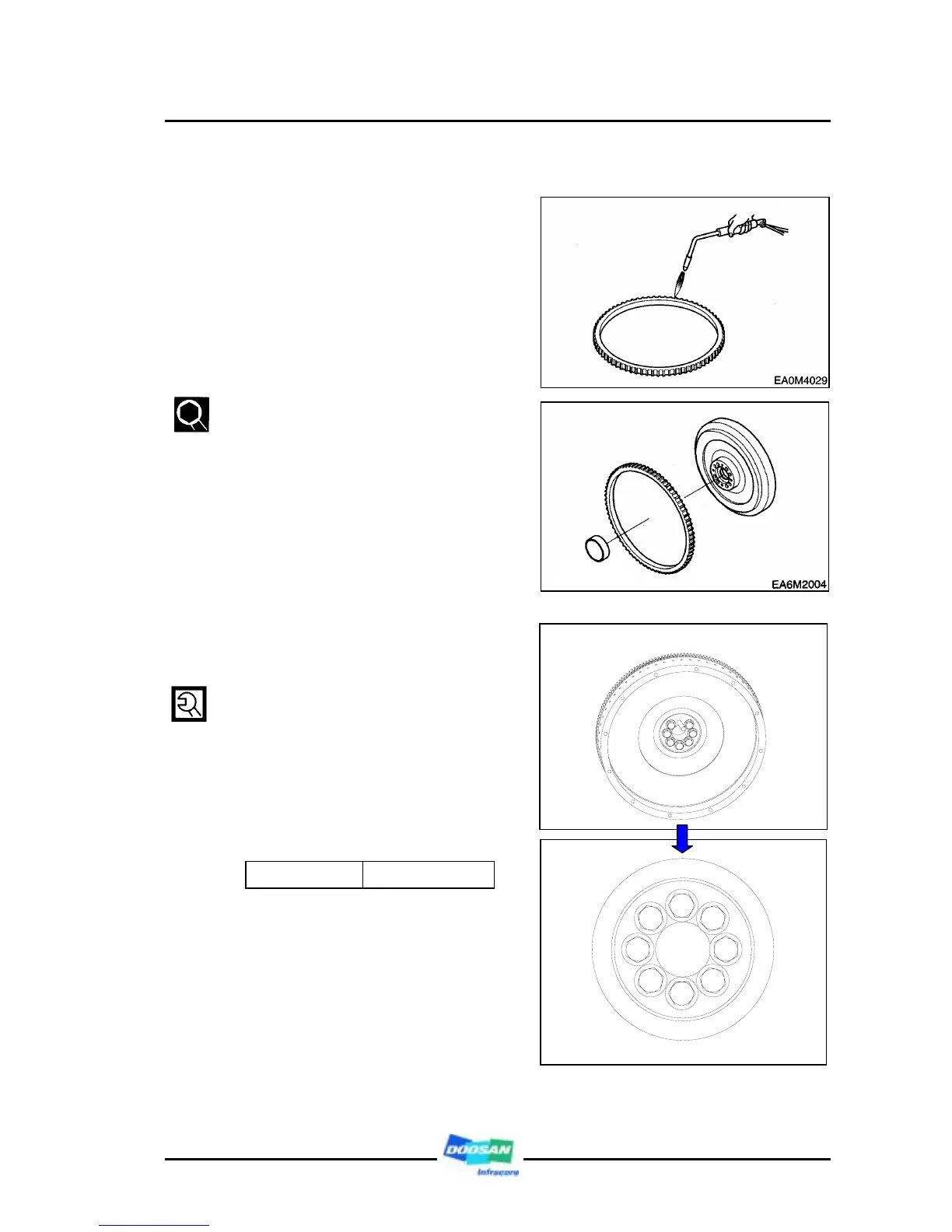

3.3.8.. Fly wheel
z Installation of flywheel ring gear
with a gas burner, heat the ring
gear evenly until heat expansion
takes place, then install it using a
hammer.
z Do not allow the temperature of the
ring gear to exceed 200°C (392°F).
z By means of mandrel, assemble
pilot bearing to the flywheel.
z By means of mandrel, press in the
wear ring at the backward face.
(Apply mounting face with #262
loctite.)
z Install two guide bolts for installing
the flywheel to the crankshaft.
z After letting the guide pin insert
through the flywheel holes and
engaging the fixing bolts by 2～3
threads temporarily, tighten them to
the specified torque according to
tightening order. (Zigzag order)
Torque 26 kg.m
Wear ring
Ring gear
1
8
3
5
2
7
4
6
