G643 (E) Service Manual Chapter 3. Engine Mechanical System 108
Engine Flywheel Installation
Figure 12-93
Install or Connect
1. Flywheel.
2. Flywheel bolts.
Tighten
• Bolts to 100 N•m (74 lb· ft.).
3. Check flywheel runout using a dial indicator. If
runout is excessive, remove flywheel, check and
clean mounting surfaces and install flywheel.
Check runout again.
Measure
• Maximum flywheel runout: 0.20 mm (0.008 in.)

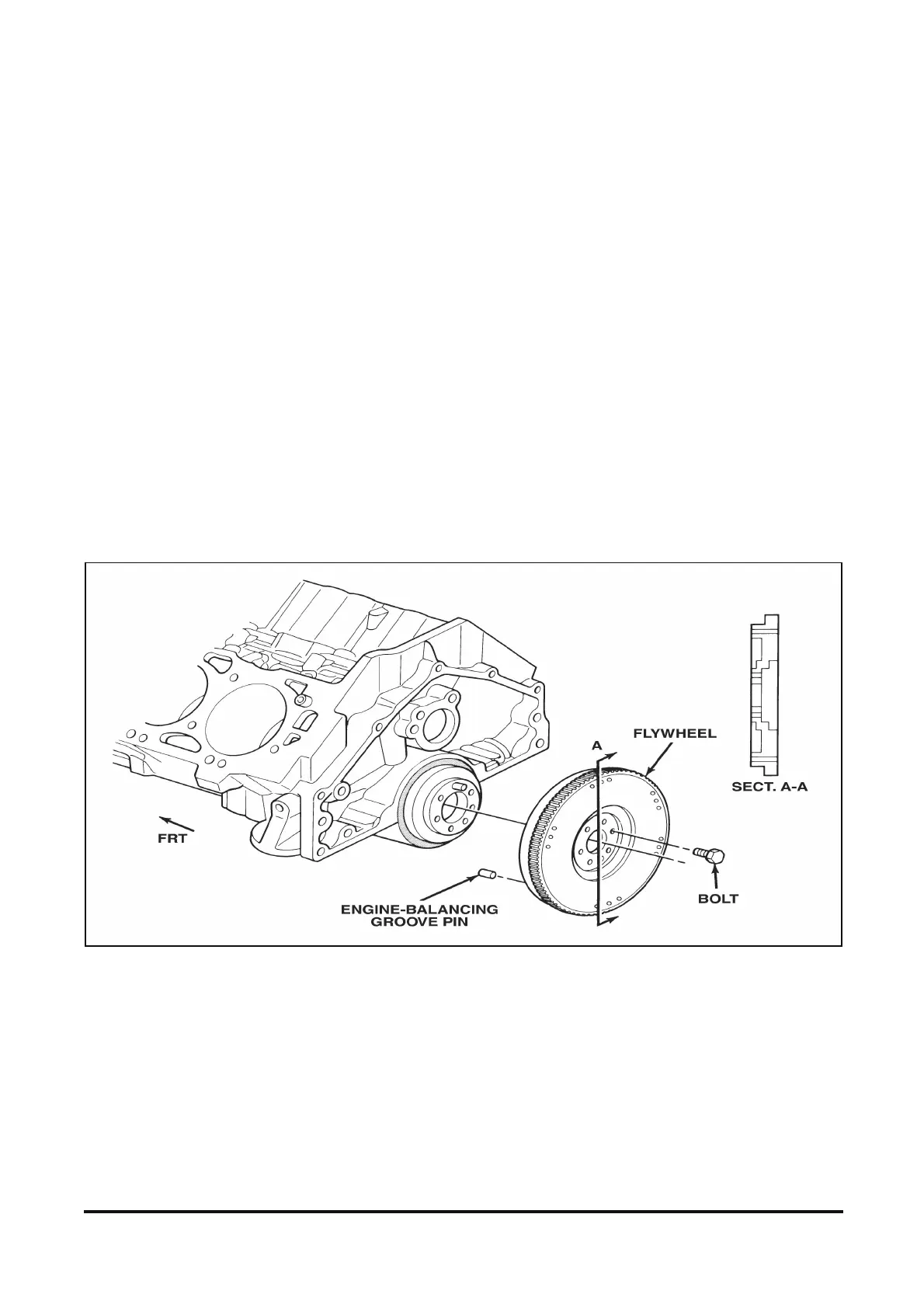

Figure 12-93 Engine Flywheel
