G643 (E) Service Manual Chapter 3. Engine Mechanical System 65

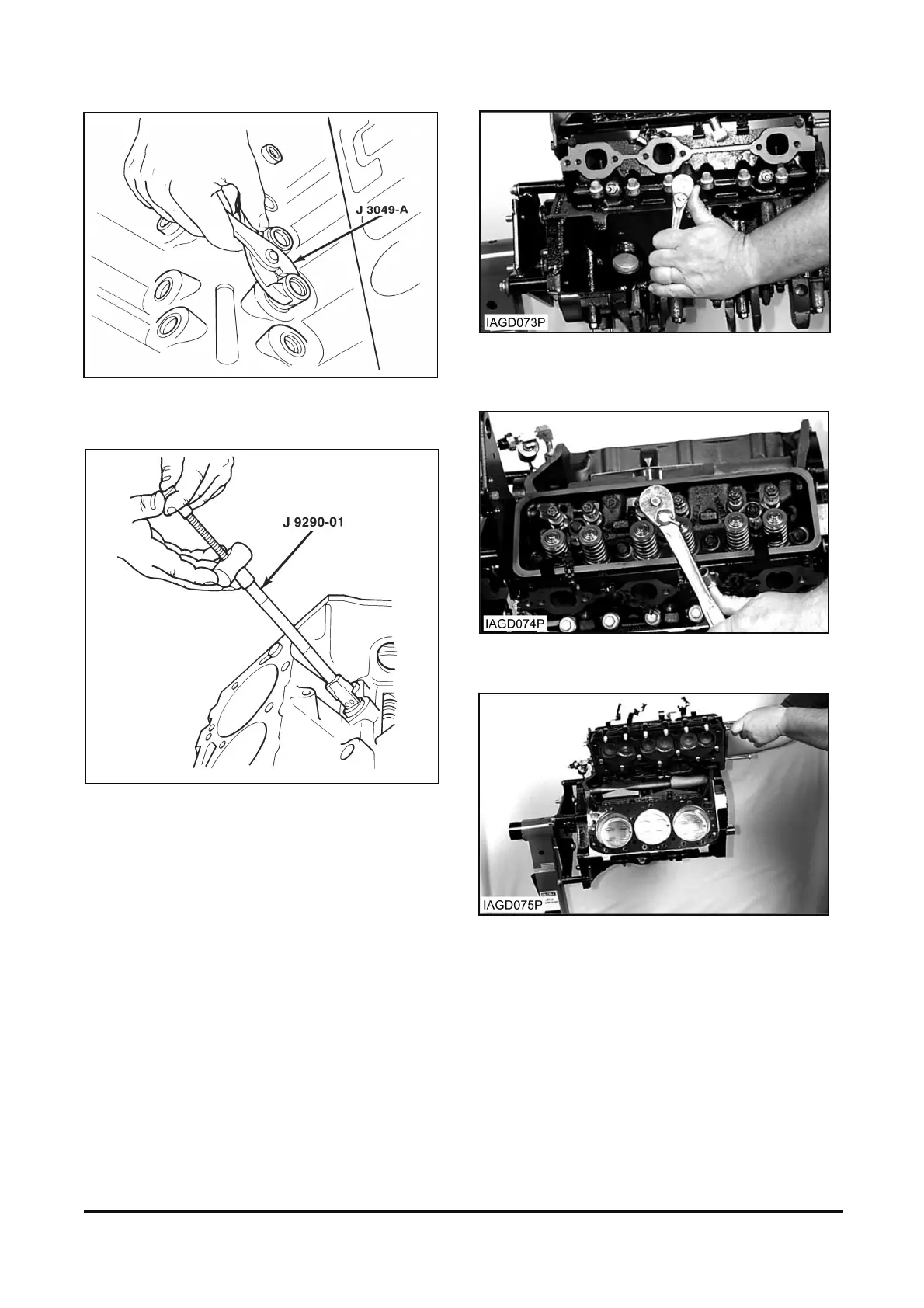

Figure 12-7 Removing Valve Lifter
Figure 12-8 Removing Valve Lifter
Cylinder Head Removal
Remove or Disconnect
Start By:
a. Removing high mounted fan bracket.
b. Remove distributor from intake manifold.
c. emove intake manifold assembly.
d. Remove exhaust manifold assemblies.
e. Remove rocker arm assemblies.
1. Remove spark plugs from cylinder head
assemblies.
2. Remove bolts from cylinder head.
3. Remove cylinder heads from block.
To Next Page
