G643(E) Service Manual Chapter 6. LPG FUEL DELIVERY SYSTEM 220

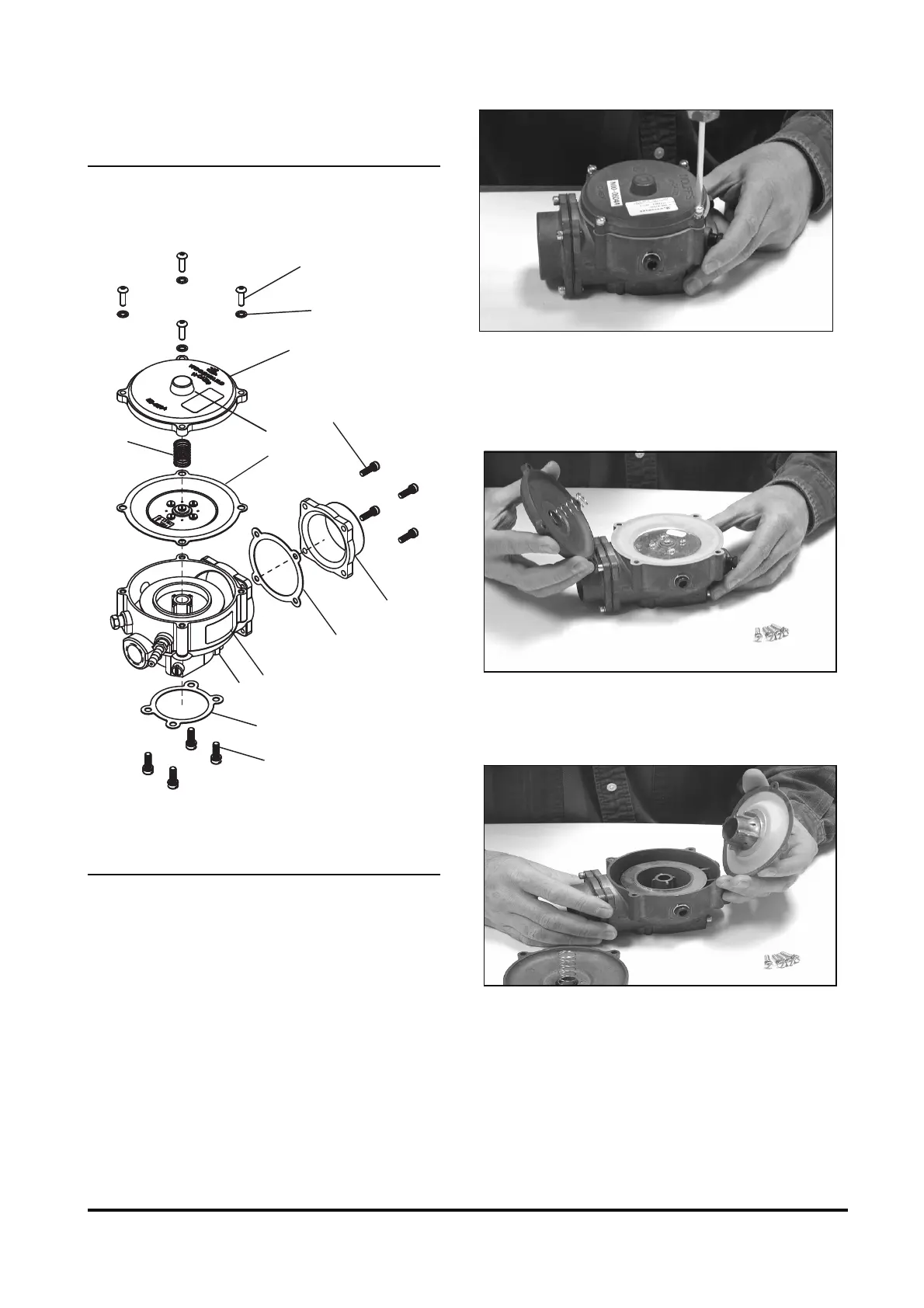

CA100 Disassembly and Service
(1) BODY (2) VALVE (3) SPRING (4) COVER
(5) WASHER (6) SCREW (7) GASKET (8) ADAPTER
(9) SCREW (10)GASKET (11) SCREW
1. With the mixer/adapter assembly removed from the
engine, and the throttle adapter removed from the
mixer, remove the four cover retaining screws from
the top of the mixer (Figure M4).
2. Gently remove the diaphragm cover from the top of
the mixer. Take care not to loose the air-valve
spring shown in (Figure M5).
3. Remove the air-valve assembly from the mixer as
shown in (Figure M6).
Figure M5
Figure M6
3
6
5
4
14
9
2
8
7
15
1
10
11
Figure M4
