G643 (E) Service Manual Chapter 3. Engine Mechanical System 37

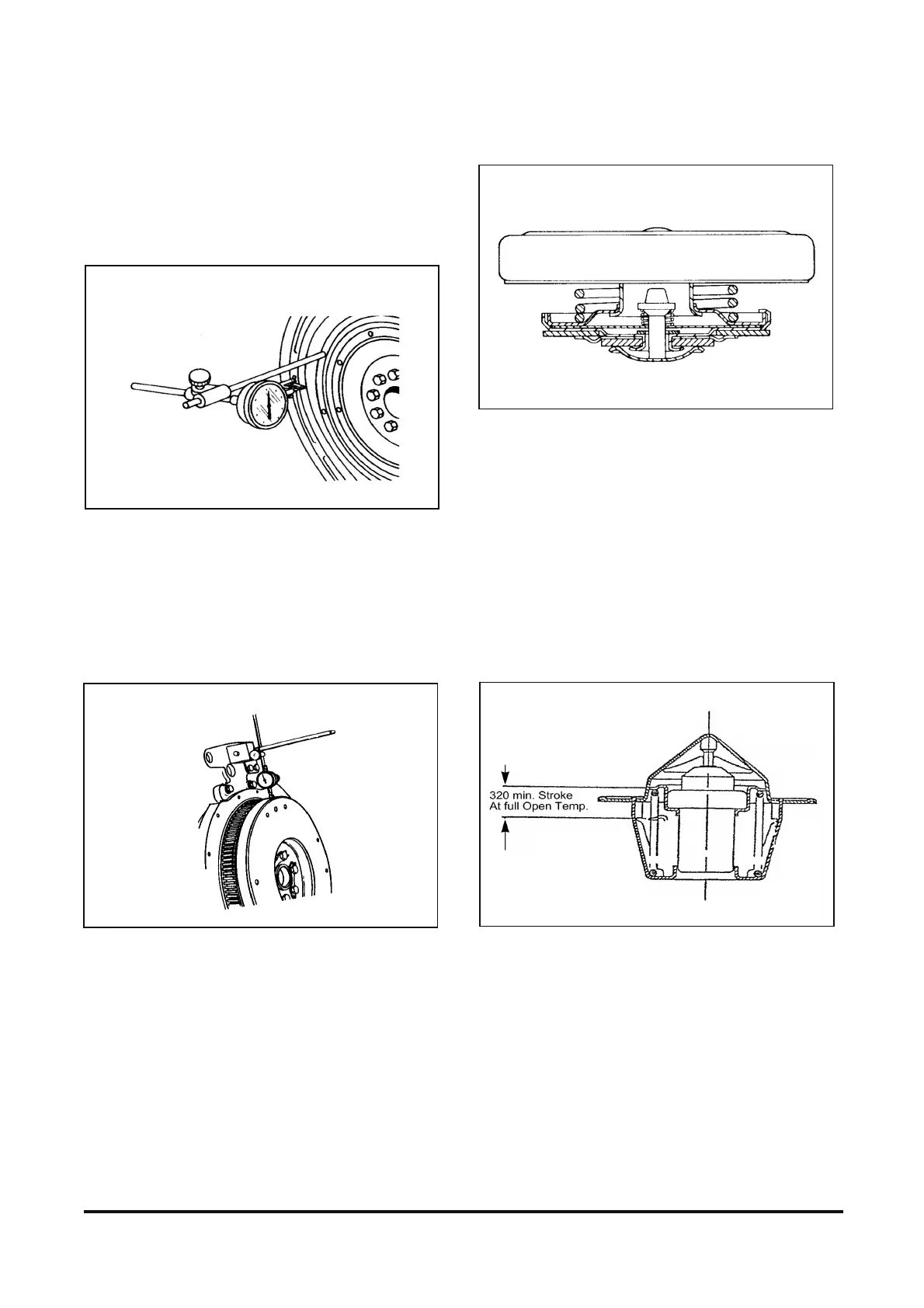

Flywheel Runout
For checking procedure, see Flywheel And Flywheel
Housing in the Testing And Adjusting section.
Face Runout (Axial Eccentricity).
Maximum permissible face runout of the flywheel
................................................0.19 mm (.0075 in)
Outside Diameter Runout (Radial Eccentricity)
Outside Diameter Runout Check
Maximum permissible outside diameter runout of the
flywheel .......................................... 0.1 mm (.004 in)
Pressure Cap
For testing procedure, see Cooling System Tests in
the Testing And Adjusting section.
Pressure valve opening pressure
.....................................85 to 110 kPa (12 to 16 psi)
Vacuum valve opening pressure
........................................... 0 to 5 kPa (0 to 0.7 psi)
Thermostat
Full open temperature...... 85 to 95 (185 to 195)
