G643 (E) Service Manual Chapter 3. Engine Mechanical System 62

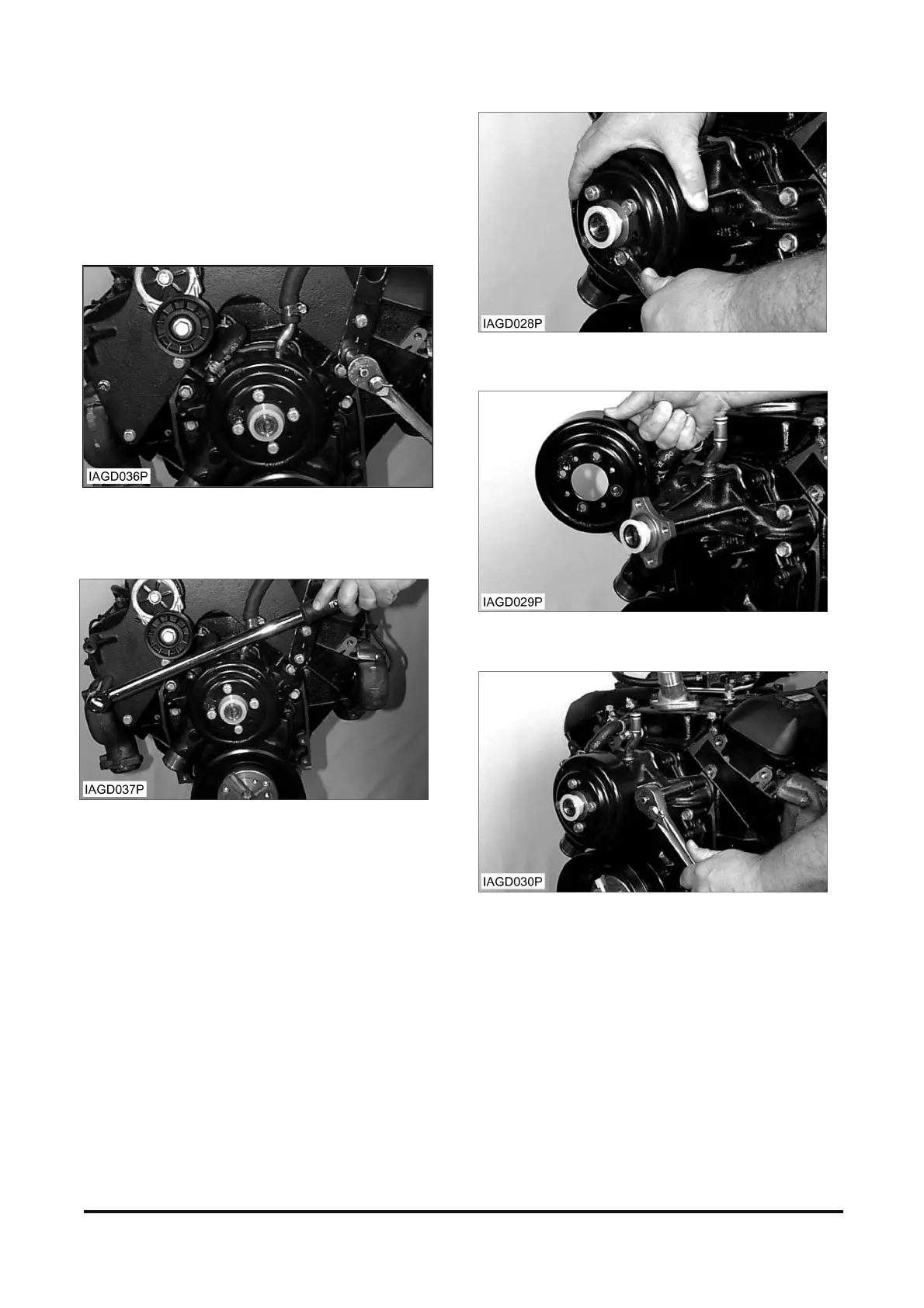

High Mounted Fan Bracket Removal
Start By:
a. Remove fan belt.
b. Remove wires from alternator.
1. Remove (5) Bolts from bracket.
2. Remove the bracket assembly.
Note: For installation of the fan bracket, reverse the
removal steps and torque mounting bolts to 50 N·m
(37 lb·ft.).
Coolant Pump Removal
Remove or Disconnect
Start By:
a. Draining coolant from radiator.
b. Remove by-pass hose and
c. LP hose from pump.
d. Remove fan belt.
1. Remove bolts from pump pulley.
2. Remove pulley from pump.
3. Remove bolts from pump.
