Dorma CS 80 MAGNEO Technical Documentation

DORMA CS 80 MAGNEO
23
43

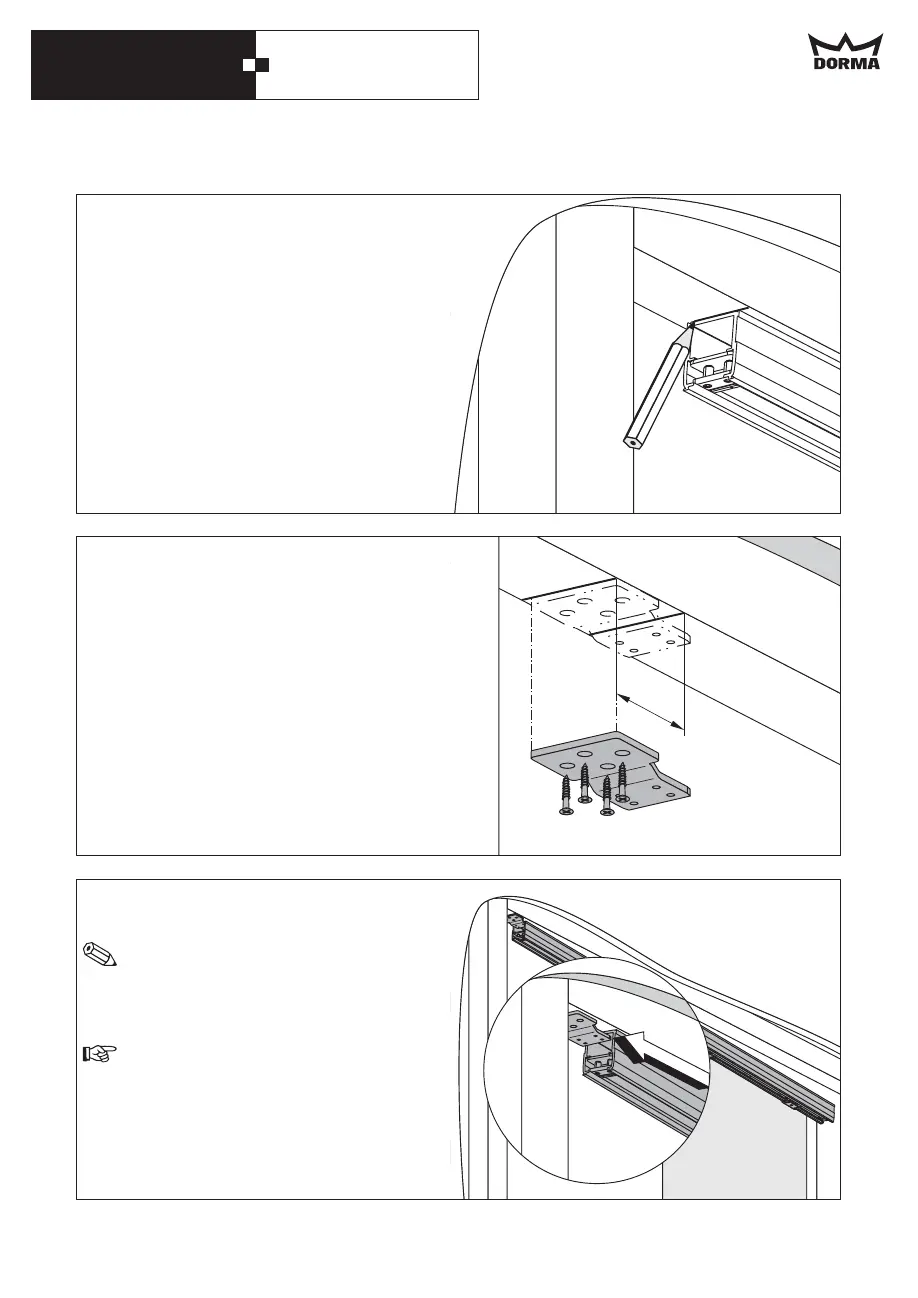

Then move the operator over the fixing
bracket as far as it will go.
Align the operator so that it is parallel to the
wall.
Make sure to position the operator
correctly, i.e. the side with the
connections must be opposite the fixing
bracket.
Never leave the operator on the fixing
bracket without holding it in position as
this would deform the fixing bracket.
Draw a further line at a distance of 43 mm.
Then position the fixing bracket at the
second line and mark the drill holes.
Drill the holes and fix the fixing bracket with
adequate screws.
Hold the operator in the desired position and
mark the end of the operator on the side
opposite the connections.

Dorma CS 80 MAGNEO Specifications

General

Brand	Dorma
Model	CS 80 MAGNEO
Category	Door Opening System
Language	English
