DORMA CS 80 MAGNEO
24

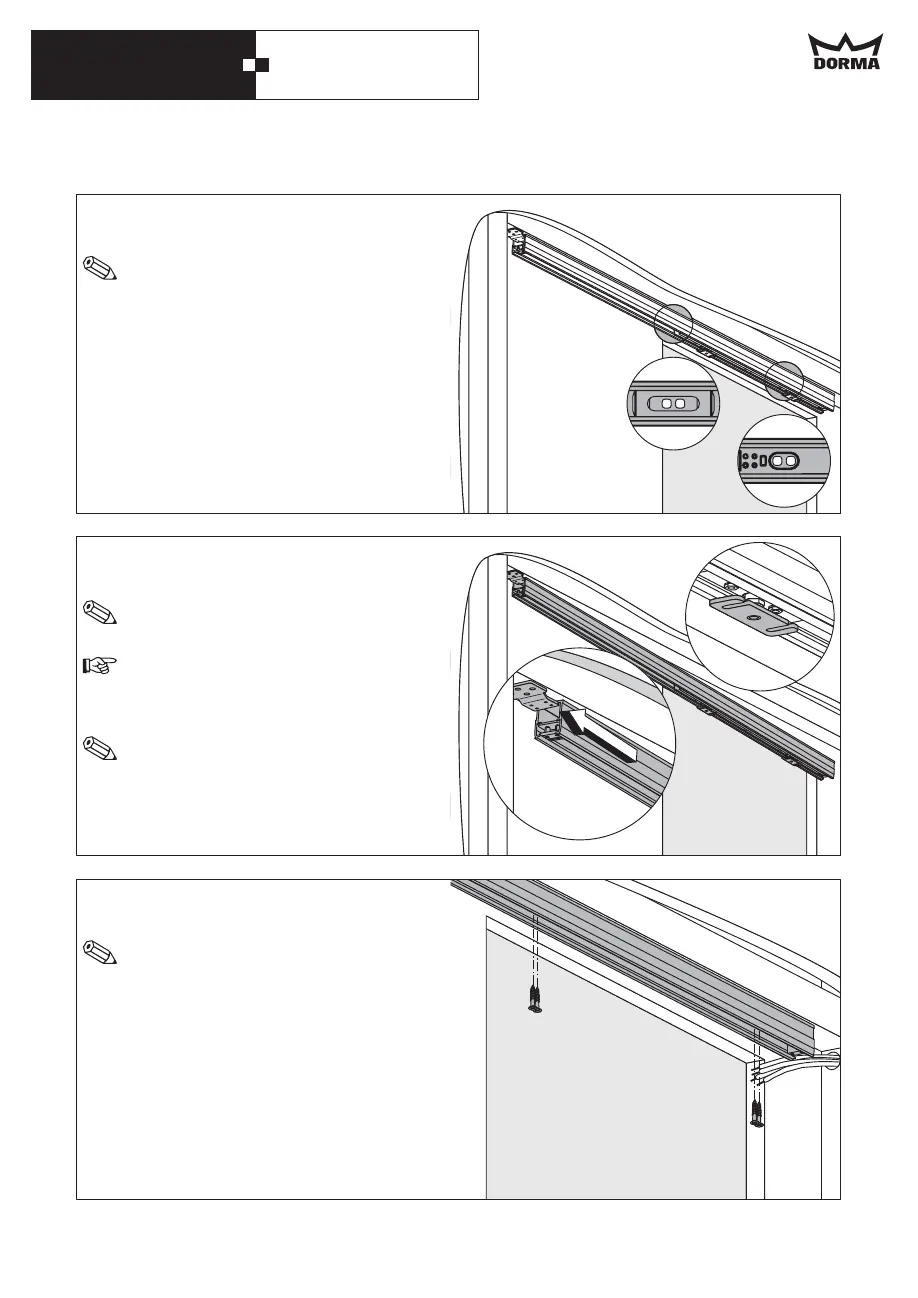

Then mark the fixing holes through the holes
in the operator.
Remove the operator and drill fixing holes
with a diameter of 4.2 mm for the supplied
sheet metal screws.
The sheet metal must at least be 2 mm
thick and the subconstruction must at least
carry 240 kg.
In order to reach all 4 holes, you have to
move the carrier.
Fix the operator under the cross girder with
the selected screws.
The operator has to be fixed so that it is
exactly level and parallel to the wal.
All connection cables have to be laid in
the close range of the operator at this
point.
The holes for the cables must be
sufficiently big and must not have sharp
edges.
Then move the operator over the fixing
bracket as far as it will go.
The side with the connections must be
opposite the fixing bracket.
Never leave the operator on the fixing
bracket without holding it in position as
this would deform the fixing bracket.
The openings of the door panel
suspension have to point to the front as
you cannot turn them following the
installation of the system.
