DORMA CS 80 MAGNEO
25
1.
2.
3.
L1
N
35 mm
6mm
6mm
150 mm
L1
N

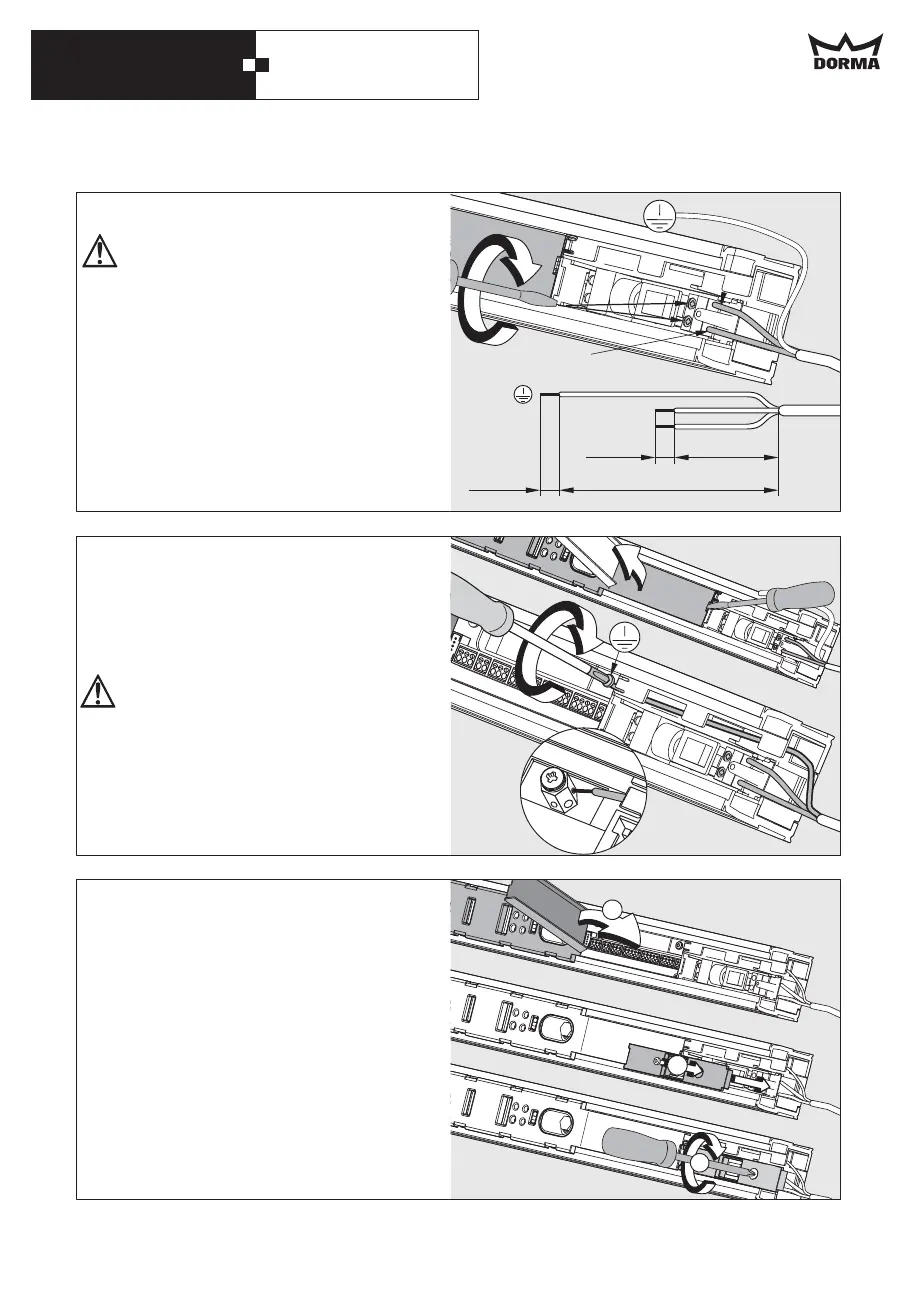

Connection of 230 V permanent power supply
Work on electrical equipment may only
be performed by properly qualified staff
(electricians).
Before starting with the installation,
make sure that the power supply line is
dead (de-energized).
Relax the end stop and move it to the centre
of the system (see page 12, picture in the
middle).
Cut the leads to length, dismantle them and
connect L1 and N to the connection
terminals of the power supply.
Close the cover of the control unit housing.
Fix and screw down the cover of the power
supply housing.
Move the end stop to the end of the channel
and screw it down thoroughly (see page 13,
picture at the bottom).
Lever out the cover at the control unit
housing with the aid of a screwdriver.
Lay the grounding line through the housing
of the operator as shown in the picture and
connect it to the grounding terminal (PE).
Connect all external accessories but the
safety sensors.
Please refer to the instructions for the cable
channel on page 29.
The grounding (PE) has to be connected
in any case.
