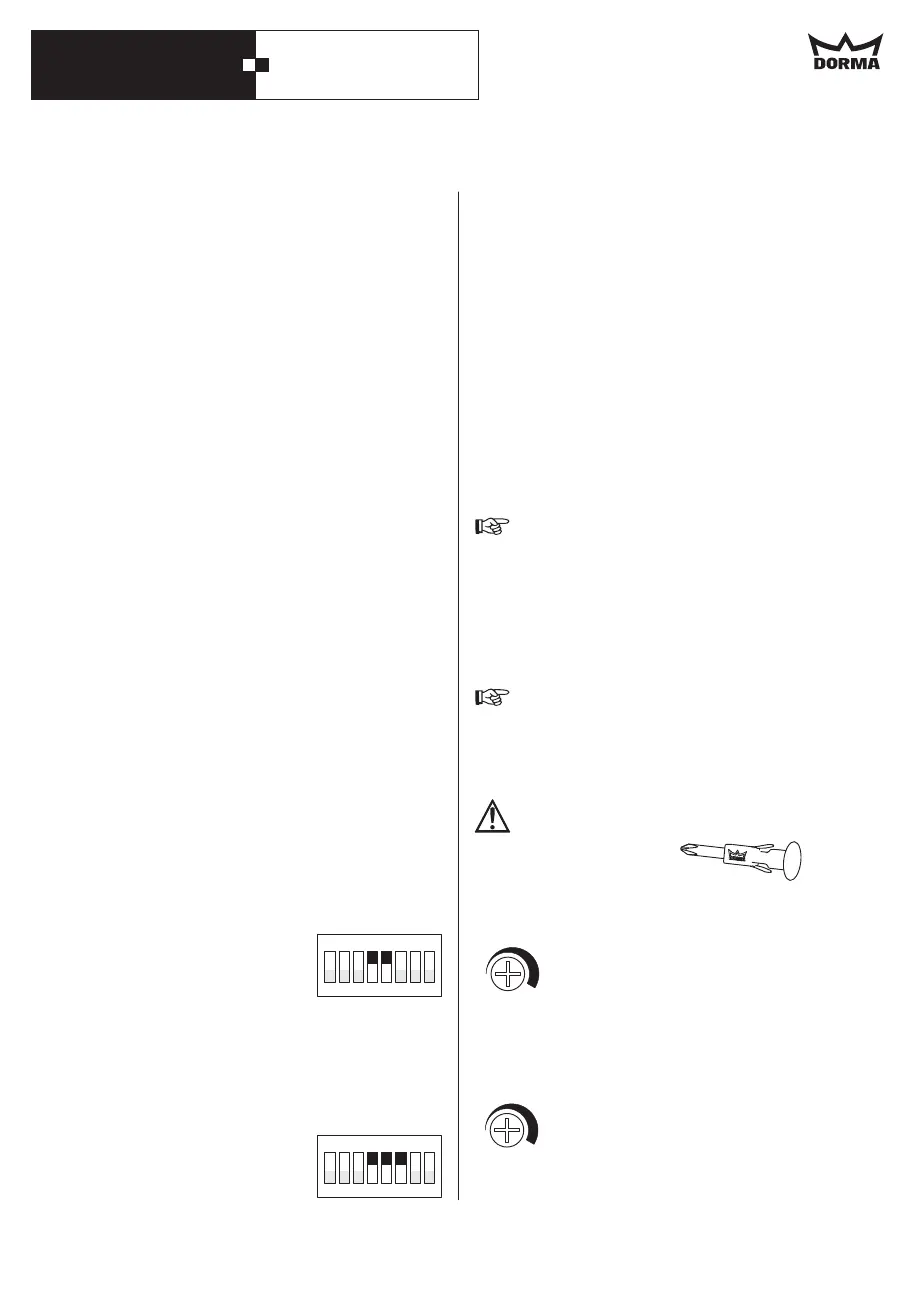

1. Opening the door in AUTOMATIC
Function
CS 80 MAGNEO
Push & Go
Pushbutton:
Sensors:
PERMANENT OPEN via double-click
Opening/Closing via pushbutton
When the system is delivered, the
is adjusted to AUTOMATIC
Function. Depending on the installed
accessories, the door can be opened in
different ways.
As soon as the door is moved manually into
opening direction by approximately 10 mm,
the operator automatically moves the door
panel further in the desired direction.
The door closes automatically.
Following the activation of the pushbutton
(e. g. wall-mounted pushbutton or radio
transmitter) the operator opens and closes
the door.
Where presence sensors (radar motion
detectors or similar) are connected, the door
opens automatically as soon as a person
approaches the door system.
The door closes automatically.
When this function is activated, the door can
be opened permanently by double-clicking
the pushbutton. In order to close the door,
a further double-click on the pushbutton is
required.
To activate this function
set
As soon as you push the button or move the
door manually the door will open. When you
push the button for a second time or move
the door panel by hand, the door will close.
DIP switch
to position.
To activate this function
set DIP switch
to position.
4 and 5
ON
4, 5 and 6
ON
Express-Function
2. In the event of a power failure
3. Adjustments
Speed adjustment
Adjustment of hold-open time
The door can be moved manually along its
operational path without extra resistance.
When the maximum speed is exceeded, the
operational resistance will increase in line
with the speed by which it is exceeded.
As soon as the user has released the door
panel, the operator will softly slow it down to
maximum speed. This function is activated
during all opening and closing cycles.
In the event of a power failure, the door can
be opened and closed by hand.
However, in this case the system does
not brake the door panel, which means
that the user has to move (hold) it all
the way by hand.
As soon as the voltage returns, the operator
will automatically perform a position
initialization.
During this position initialization, the
movement range of the door has to be
free of obstacles.
Only use the enclosed red screwdriver
to perform potentiometer adjustments!
The maximum speed depends on
the weight of the door panel. You
can reduce the speed with the aid
of the potentiometer (infinitely
variable).
The door will close automatically
on expiry of the adjusted hold-
open time following it has
reached open position. You can
adjust the hold-open time
infinitely from 5 to 30 seconds
with the aid of the potentiometer.
12. Operating instructions
