Dorma CS 80 MAGNEO Technical Documentation

DORMA CS 80 MAGNEO
27
max. 8 mm max. 8 mm
Y
3.
Y
2.
1.
Y
4.
3.
3.
2.
Y
4.
1.
Y

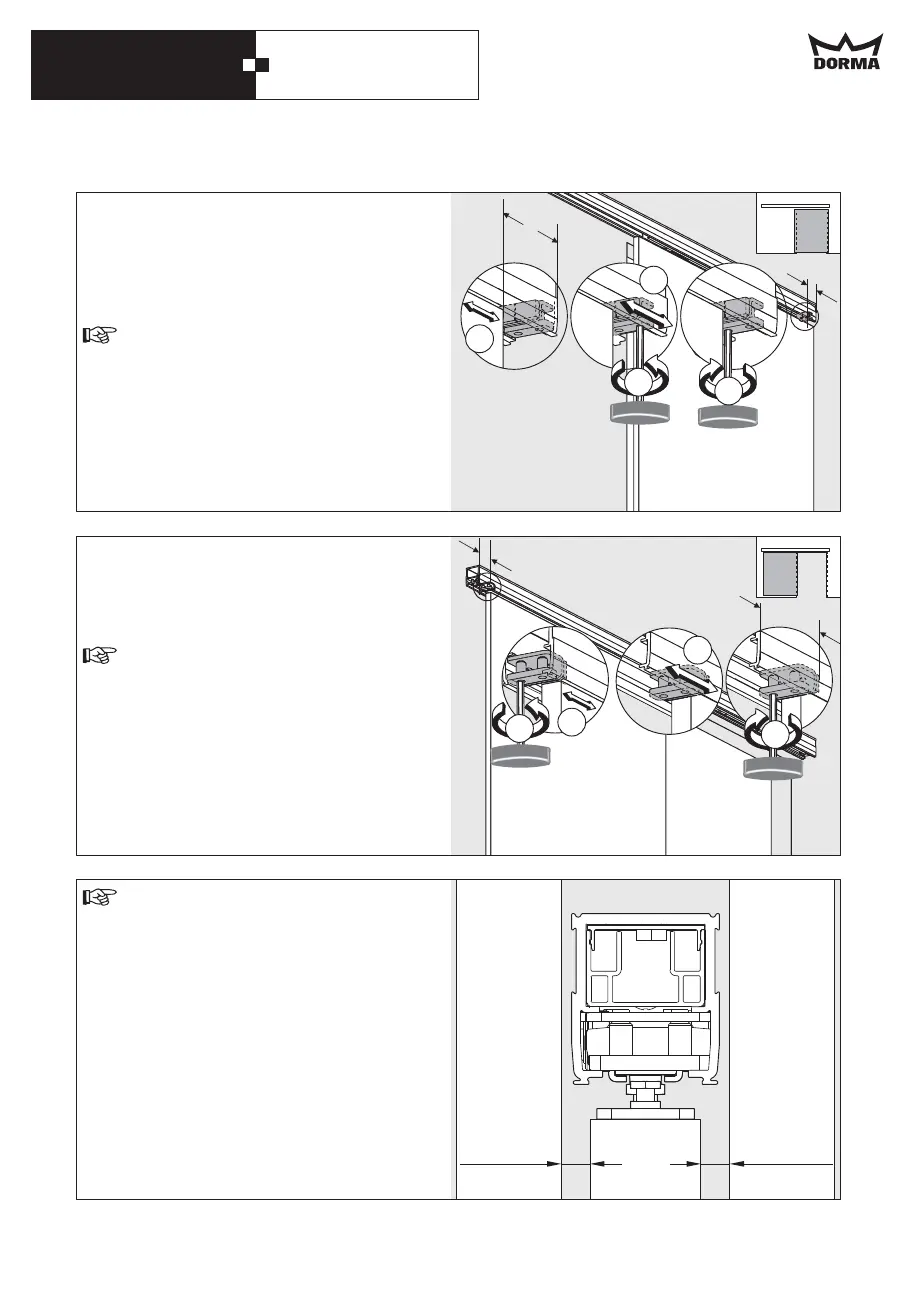

The distance between door panel and
wall must not exceed 8 mm.
The clearance has to be covered with
brushes or similar, if required.
Please install radio receivers, program
switches and/or sensors and lay the cables
as indicated in the enclosed instructions.
Continue with the commissioning of the
system as indicated starting from page 31.
Relax the screws of end stop on the other
side and move the door to the desired
open position. Move the end stop next to
the door panel and screw down tight (5 Nm).
The end stop may only be moved to the
inside by a certain dimension.
The end stop must not overlap at the outer
edge.
875 mm operator => max. 200 mm
1000 mm operator => max. 250 mm
1125 mm operator => max. 300 mm
Relax the screws of the end stop on the side
where the connections are and move the
door to the desired closed position. Move
the end stop next to the door panel and
screw down tight (5 Nm).
The end stop may only be moved to the
inside by a certain dimension.
875 mm operator => max. 200 mm
1000 mm operator => max. 250 mm
1125 mm operator => max. 300 mm
The end stop must not overlap at the outer
edge.
