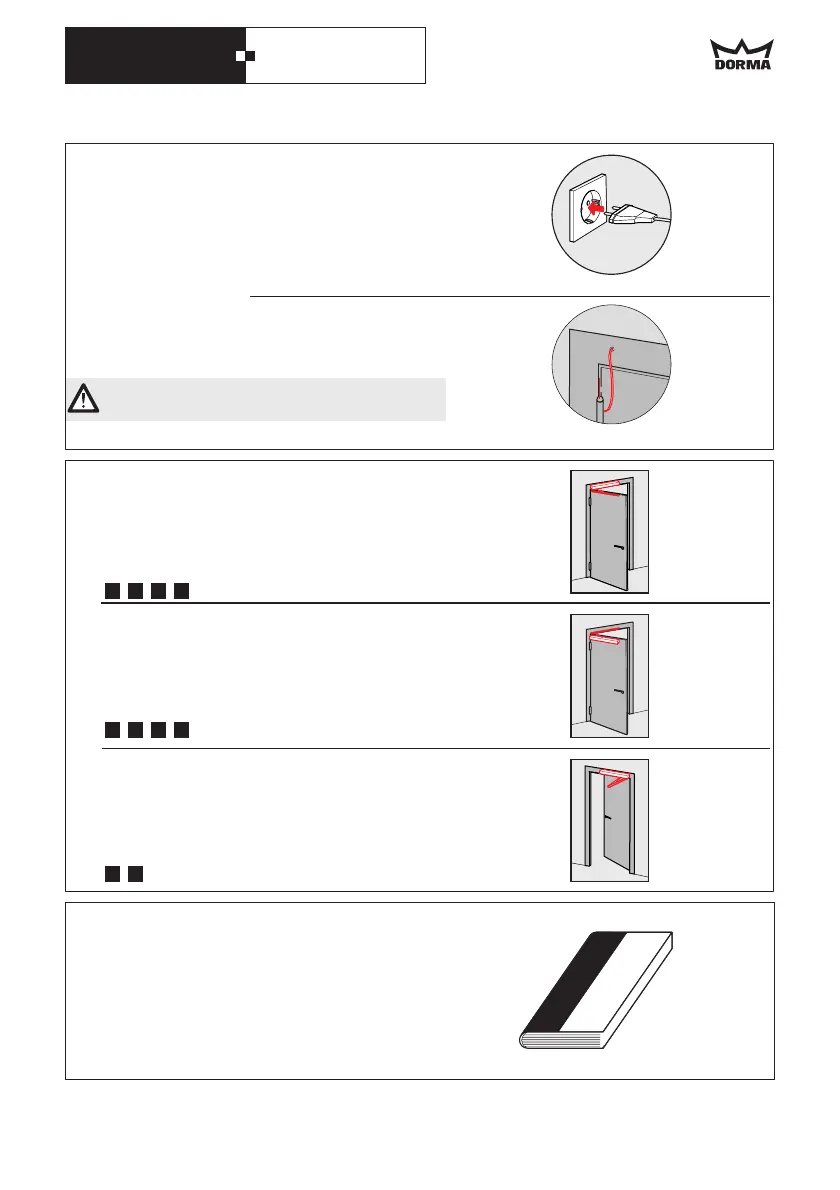

Approach to installation and commissioning
A B C D
230 / 110 VAC
1. Determine the power connection, either:
or
This connection version may only be performed
by a properly qualified company.
Plug&Go (power connection via power plug)
Power supply straight through the wall
page 26.
2. Perform the mounting with the aid of the
enclosed installation drawings.
Select the appropriate installation drawing for
your way of mounting.
Lintel mounting with
slide channel (standard).
Door leaf mounting with slide channel
Lintel depth mounting. with projecting arm
(option).
3. Following the installation, commission the
PORTEO door assistant.
standard commissioning
extended commissioning
Either with , see
operating instructions on page 14 and 15
or
with , see operating
instructions on page 16 to 19.
