10.2.3 Disassemble pressure releasing valve

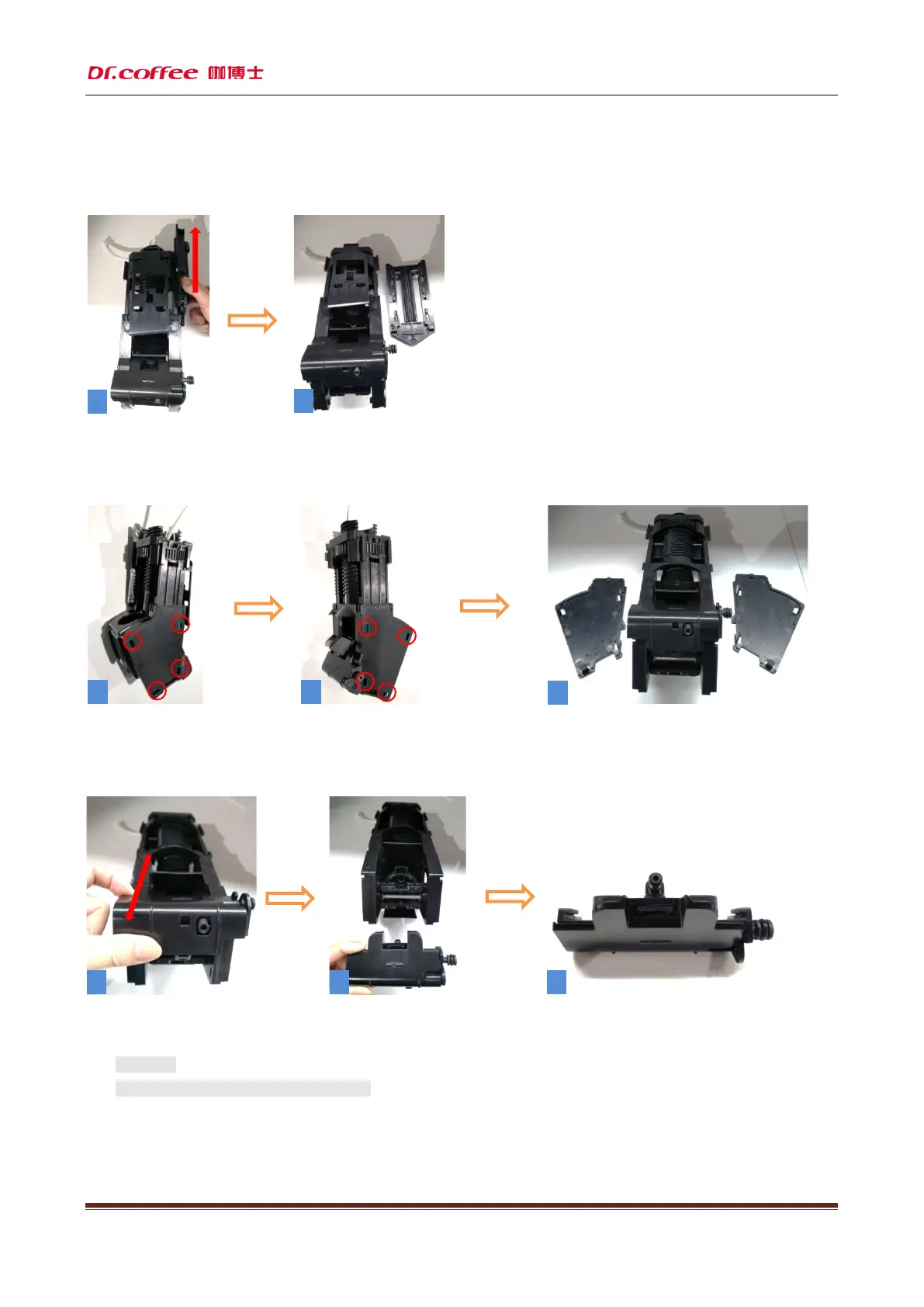

Step1：First (as shown in Figure 1), hold the gear lever bracket and remove the gear lever set in the direction of the arrow.
Step2：Press with a flat-blade screwdriver (as shown in Figure 1, 2), eight red circles indicate the position of the buckle, and release the buckle to
remove the two side panels (Figure 3)
Step3：Grasp the pressure relief valve block with your hand and pull out the pressure relief valve group in the direction indicated by the arrow (Figure
1). Disassemble the group.
★ Attention：
1、Unplug the coffee machine before doing this！
