10.2.11 Disassemble control board

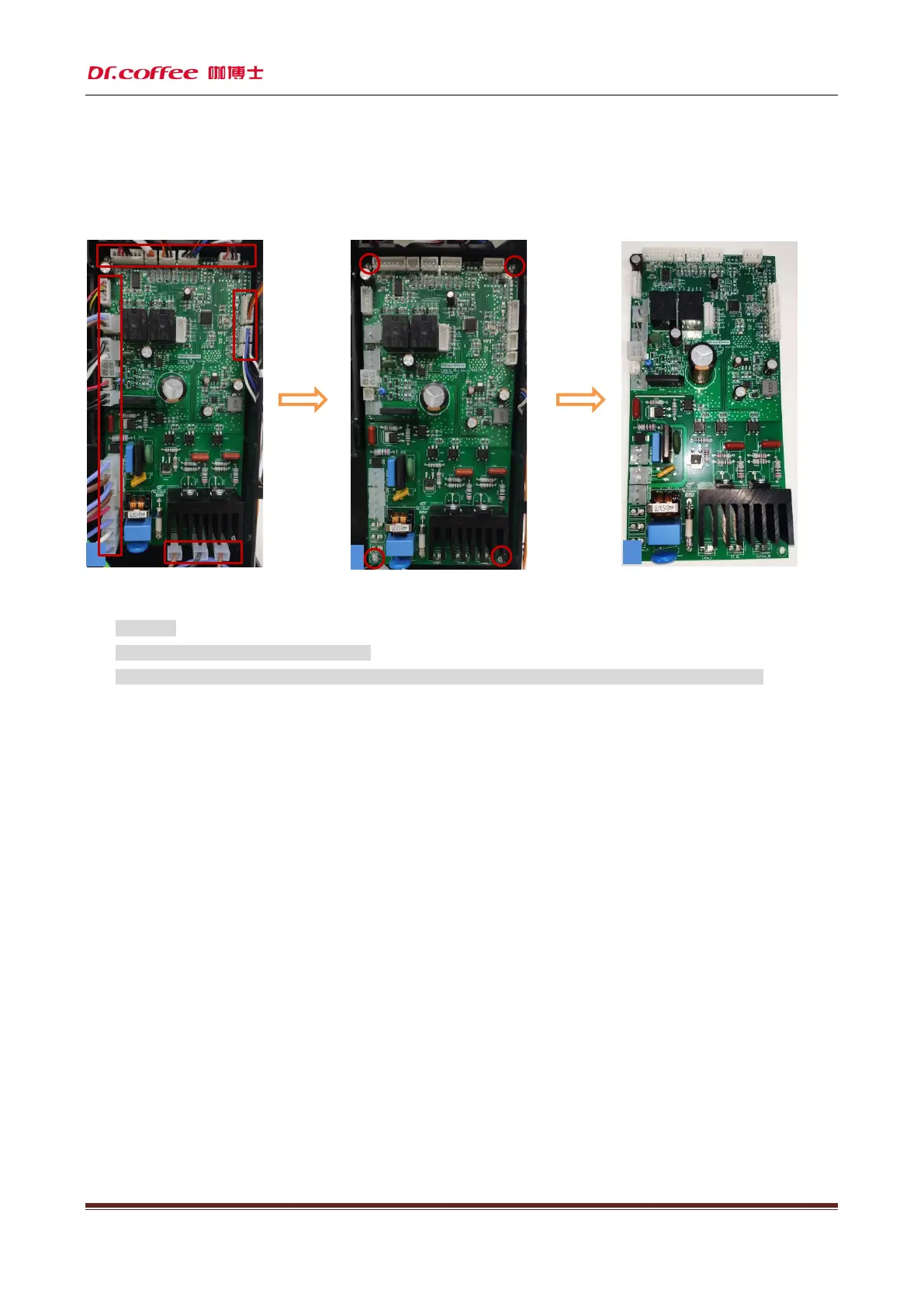

Step：First unplug all the wiring plugs on the main control board, then remove the four screws that fix the main control board, and finally remove the
main control board.
★ Attention：
1、Unplug the coffee machine before doing this！
2、When pulling the cable plug, please press the buckle first and then pull the plug to prevent the terminal from being broken！
