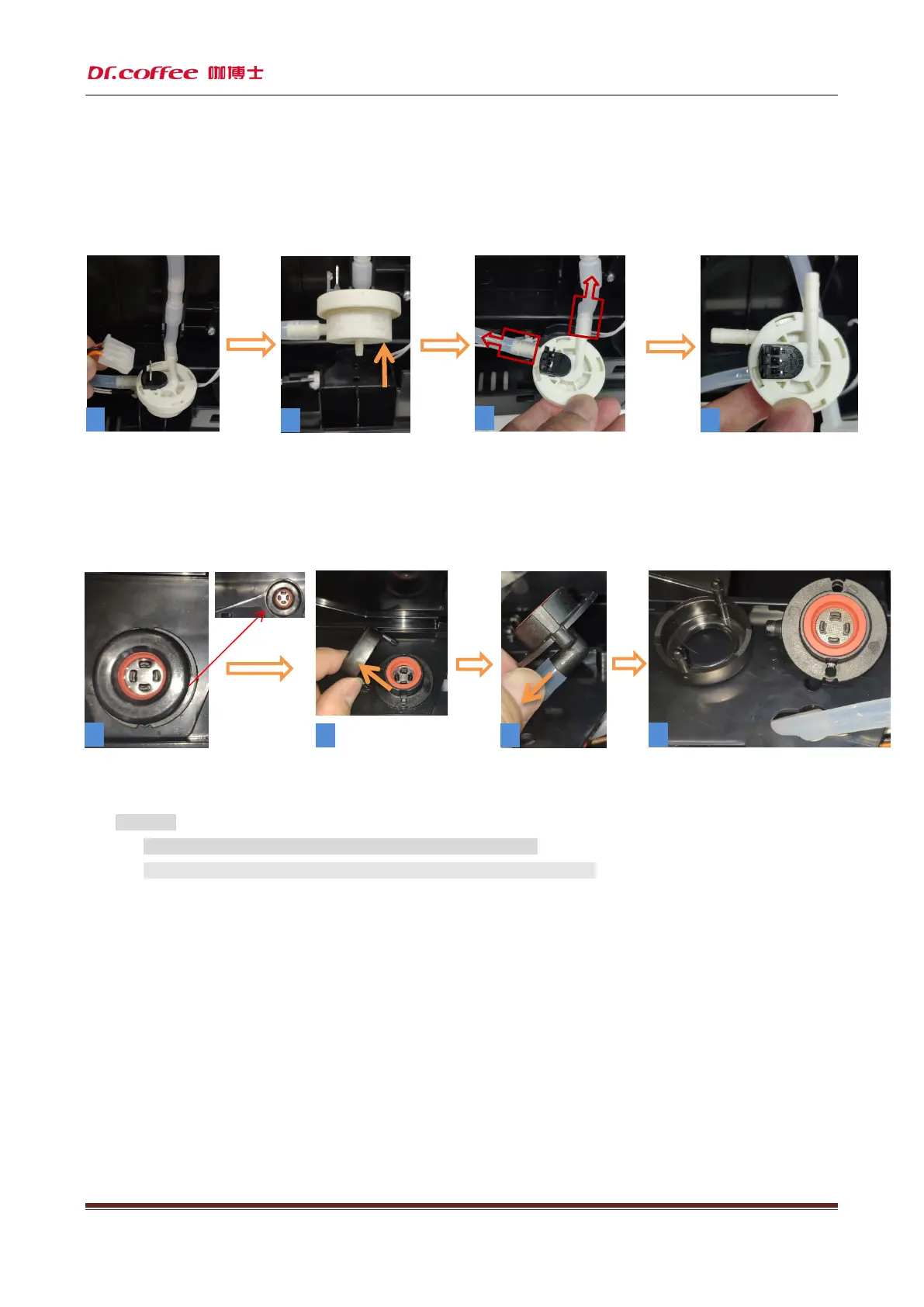

10.2.7 Disassemble flowmeter
First unplug the wiring plug on the flowmeter, then pull up the flowmeter (can be picked up with a screwdriver as shown in Figure 3), and finally unplug the
connected water pipe to take out the flowmeter and disassemble the flowmeter.
10.2.8 Disassemble water inlet valve
First pull out the water guide cover (can be picked up with a screwdriver), then pull up the water guide and unplug the connected water pipe. Disassemble the
water inlet valve
★ Attention：
1、 Be careful during the disassembly process to prevent scratching your fingers！
2、 There may be residual water in the pipe. Please prepare the water container in advance！
4
3
2
1
4 1
2 3
Pull out
