10.2.6 Disassemble pump

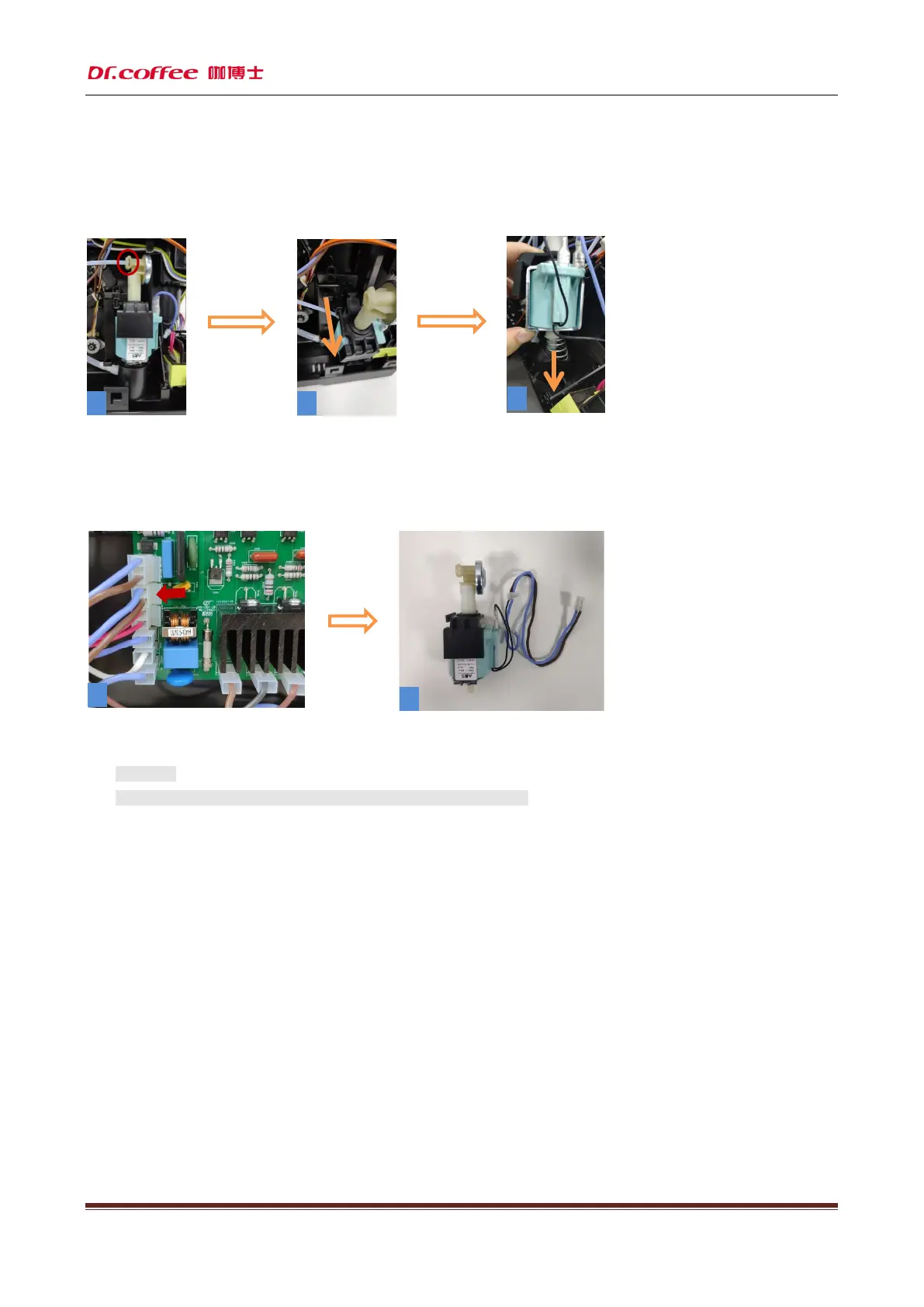

Step1：First unplug the plug (as shown in Figure 1), then remove the small spring clip (as shown in Figure 2) and pull out the water pipe. Then press the water
pump to remove the water pump.
Step2：According to the position shown by the arrow), pull out the silicone water pipe connected to the pump, and finally take out the pump set and remove
the pump set.
★ Attention：
1、Be careful during the disassembly process to prevent scratching your fingers！
