Dr.coffee F10 - Disassemble Grinder Group

Rev 0.0
Dr.coffee 产品维修手册 49
10.2.9 Disassemble grinder group

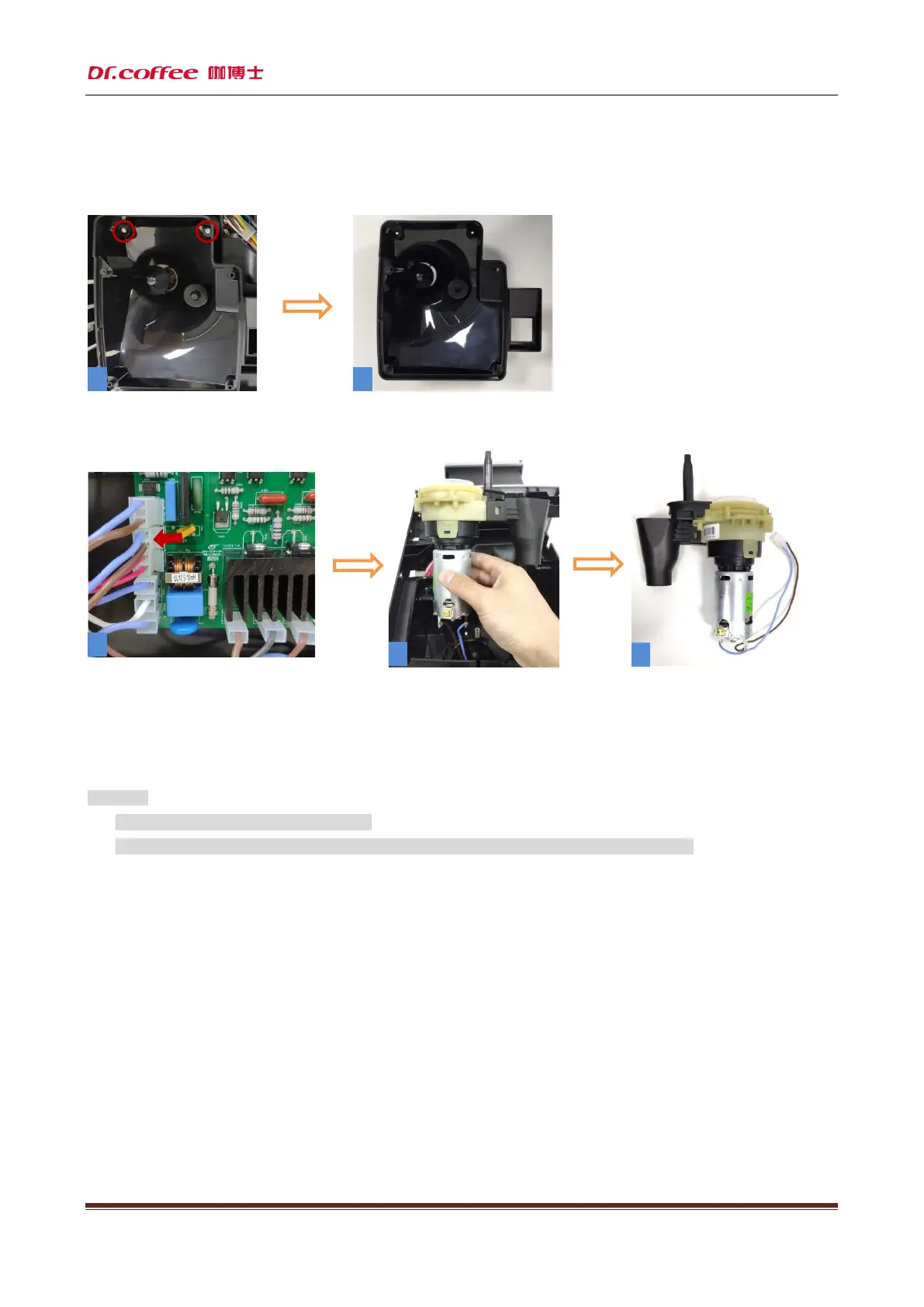

Step1： First remove the bean holder, then press the buckle marked with the red circle to remove the Hall sensor group, and then unplug the wiring plug on
the power board.
Step2： Grab the parts of the grinder by hand, take out the whole grinder group upwards, and disassemble the grinder group.
Attention：
1、Switch off the machine before disassembling！
2、Before removing the grinder group, please empty the residual coffee beans and coffee powder in the grinder！
2 1
3
5
4
