Configuration
82
Instructions for Use Oxylog 3000 SW 1.n

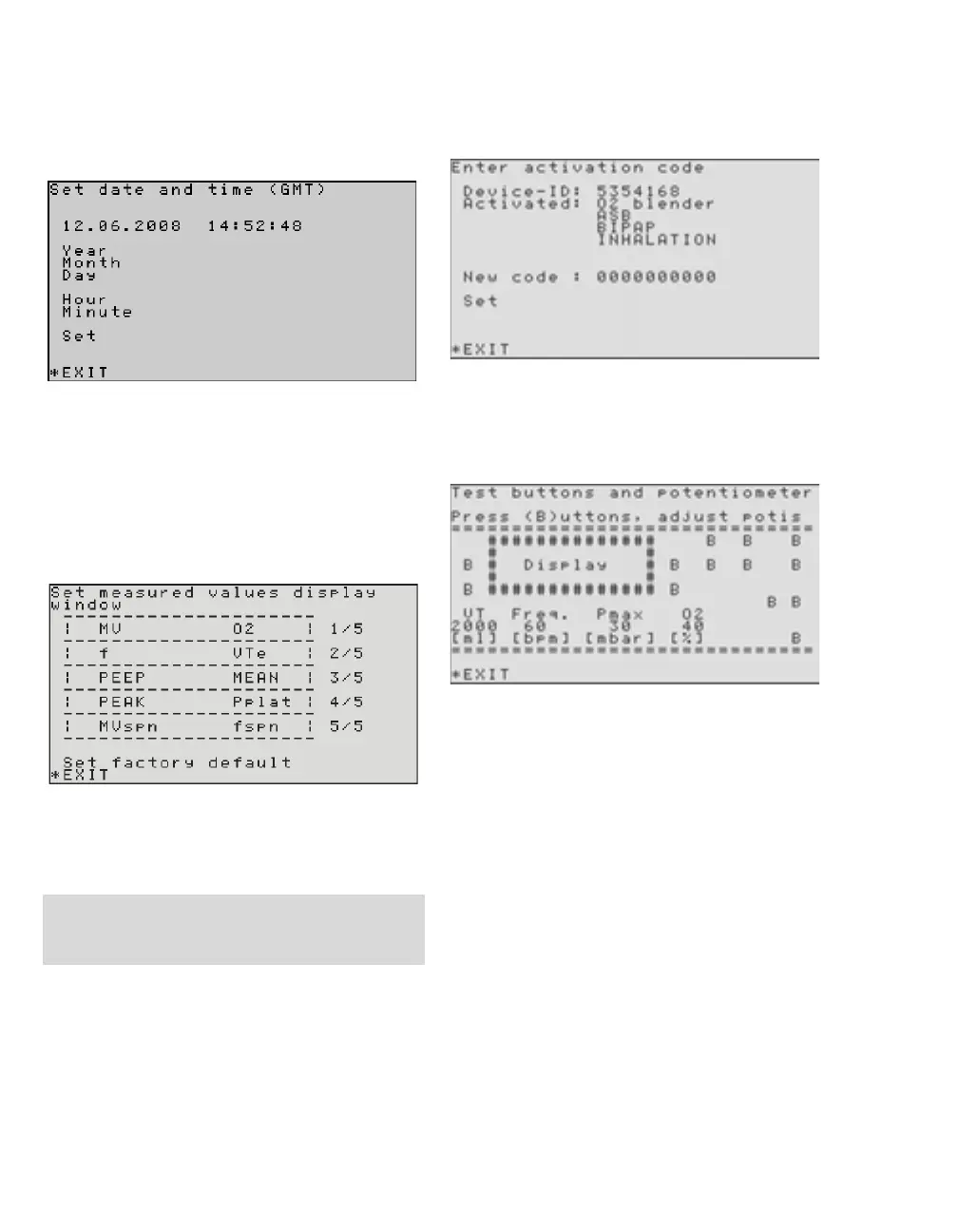

Set date and time
The date and time can be set.
1 Set the current date and time with the positions
Year, Month, Day, Hour and Minute and confirm.
2 The date and time can be confirmed with »Set«.
Set the measured values display window
In the measured values window five pairs of differ-
ent values can be displayed.
The arrangement of measured value pairs on the
individual pages of the measured values window
can be varied.
Each measured value can be freely selected in any
position and is only displayed at that position.
To define the five values to be displayed:
z Start configuration on page 1/5 and continue
through to 5/5.
Enter activation code
The activation codes for options can be entered.
The activated options are then displayed.
Test buttons and potentiometer
The operating elements on the front panel are
displayed schematically on the screen.
– Display = screen
– B = buttons
Set the controls accordingly for the test:
– VT to 500 mL
– Freq. to 20 /min
– Pmax to 40 mbar
– O
2 to 40 %
These settings are displayed on the screen.
To test the buttons:
1023717011637170
NOTE
It is recommended that you have the O2 value as
a displayed value.
1143717009437170
