Dräger X-AM 5000 Technical Manual

8

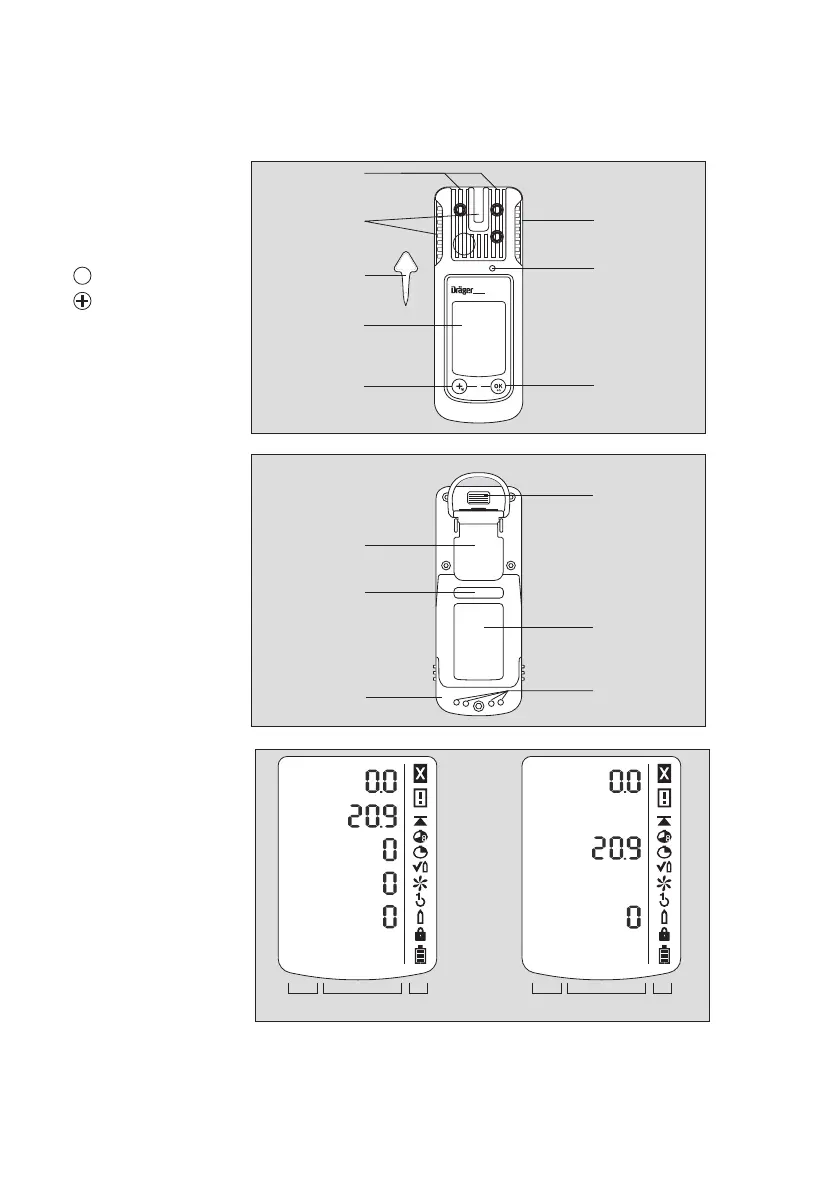

What is What
What is What
Front panel
Rear panel
Display
for 5 measuring channels
only:
other:
The following only shows the device version with 5 measuring channels.
1 Gas entry
2 Alarm LED
3 Buzzer
4 key
5 key
6 Display
7 Tool for replacing
the sensor
1 IR interface
2 Fastening clip
3 Type plate
4 Charging contacts
5 Power pack
6 Serial no.
1 Measured gas
display with unit
2 Measured value
display
3 Special symbols
4 Measured gas
display
5 Measured gas
display with unit
6 Special symbols
00223999_02.eps
0
1
2
6
5
4
3
2
X-am 5000
7
OK
00323999_02.eps
2
1
4
6
3
5
00423999_02_en.eps
456
CH4
O 2
CO
%LEL
Vol%
ppm
123
CH4
%LEL
O 2
Vol%
CO
ppm
H
2 S
ppm
NH
3
ppm

Dräger X-AM 5000 Specifications

General

Ingress Protection	IP67
Operating Humidity	10 to 95% RH, non-condensing
Detection Principle	Electrochemical, Catalytic, Infrared
Gases Detected	O2, CO, H2S, NO2, SO2, H2
Number of Gases	Up to 5
Display	Graphical LCD with backlight
Alarm Indicators	Audible, visual, and vibration alarms
Operating Temperature	-20 °C to +50 °C
Data Logging	Yes
Certifications	ATEX, IECEx, CSA
Response Time	T90 < 15 seconds (sensor dependent)
