www.dragino.com
LoRa Gateway User Manual ---Update:2017-02-21 26 / 44

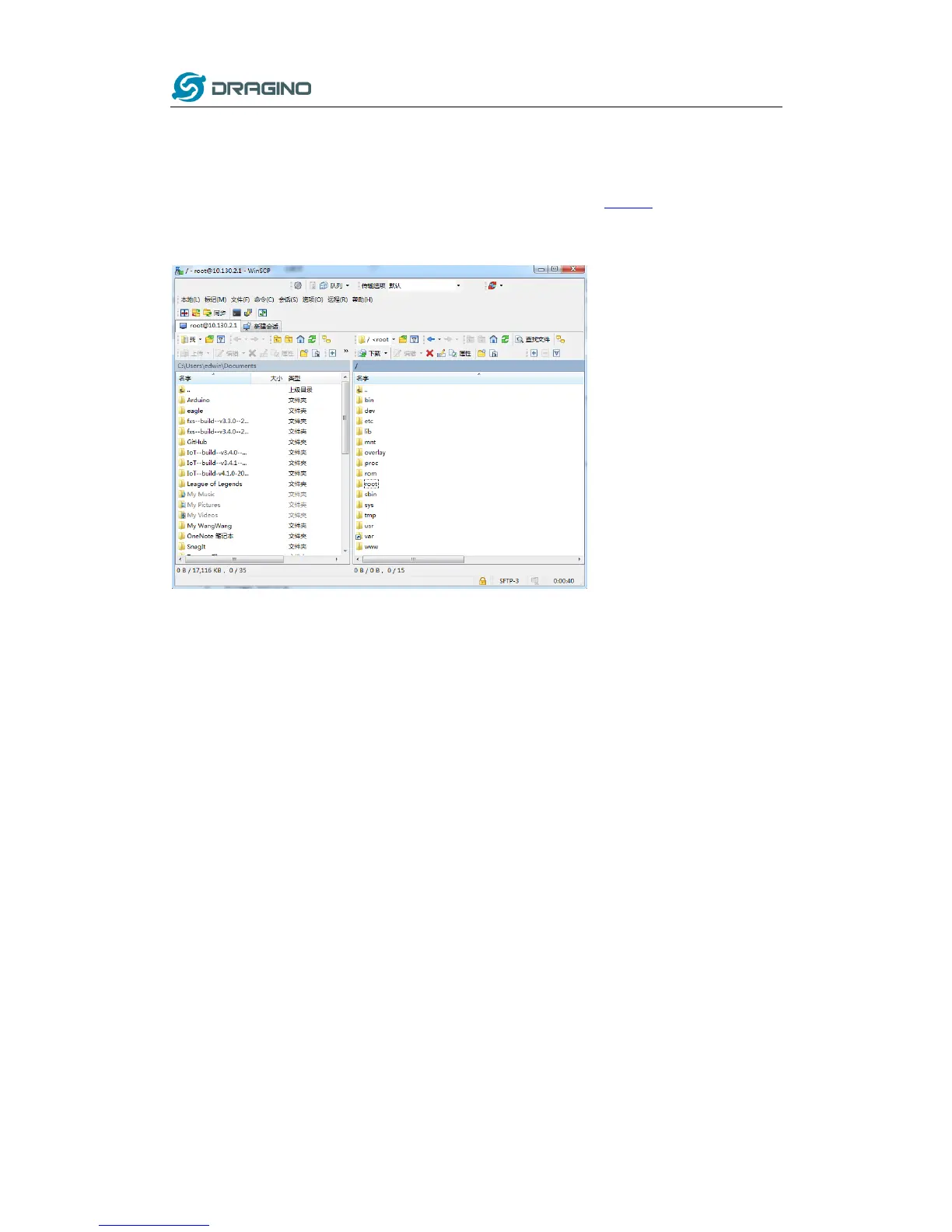

4.2 Edit and Transfer files
The LG01 support SCP protocol and has a built SFTP server. There are many ways to edit and
transfer files using these two protocols. One of the easiest is through WinSCP utility. After access
via WinSCP to the device, use can use a FTP alike window to drag / drop files to the LG01 or Edit
the files directly in the windows. Screenshot is as below:
4.3 File System
The LG01 has a 16MB flash and a 64MB RAM. The /var and /tmp directory are in the RAM, that
means content in /tmp and /var will be erase after reboot the device. Other directories are in the
flash and will keep after reboot.
The Linux system use around 8MB ~10MB flash size which means there is not much room for
user to store data in the LG01 flash. User can use an external USB flash to extend the size for
storage.
