Dragino LG01 LoRa User Manual

www.dragino.com
LoRa Gateway User Manual ---Update:2017-02-21 4 / 44
1 Introduction
1.1 Overview
1.2 What is LG01
The LG01 is an open source single channel LoRa Gateway. It lets you bridge LoRa wireless
network to an IP network base on WiFi, Ethernet, 3G or 4G cellular. LG01 runs on open source
embedded Linux system; it has USB host port and has full Ethernet and 802.11 b/g/n WiFi
capabilities. The USB host port can be used to connect cellular modules so LG01 is very flexible to
bridge LoRa Network to different kinds of network to fit user’s requirement.
1.3 Specifications
Hardware System:
Linux Part:
 400Mhz ar9331 processor
 64MB RAM
 16MB Flash
MCU Part:
 MCU: ATMega328P
 Flash: 32KB
 SRAM: 2KB
 EEPROM: 1KB
Interface:
 Power Input: 9 ~ 24v DC
 2 x RJ45 ports
 USB 2.0 Host port x 1
 Internal USB 2.0 Host Interface x 1

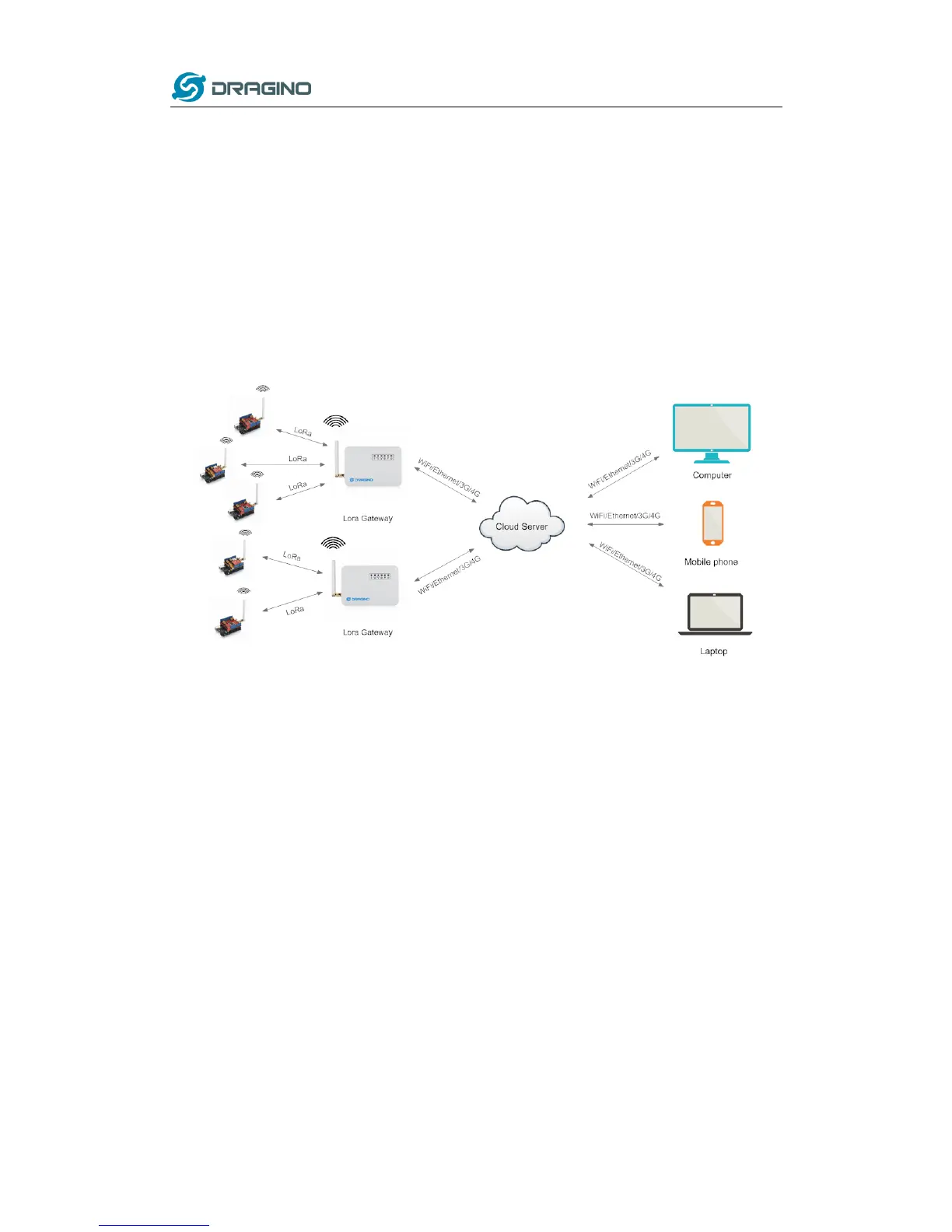

LG01 in an IoT Network
