Vigor2750 Series User’s Guide
54

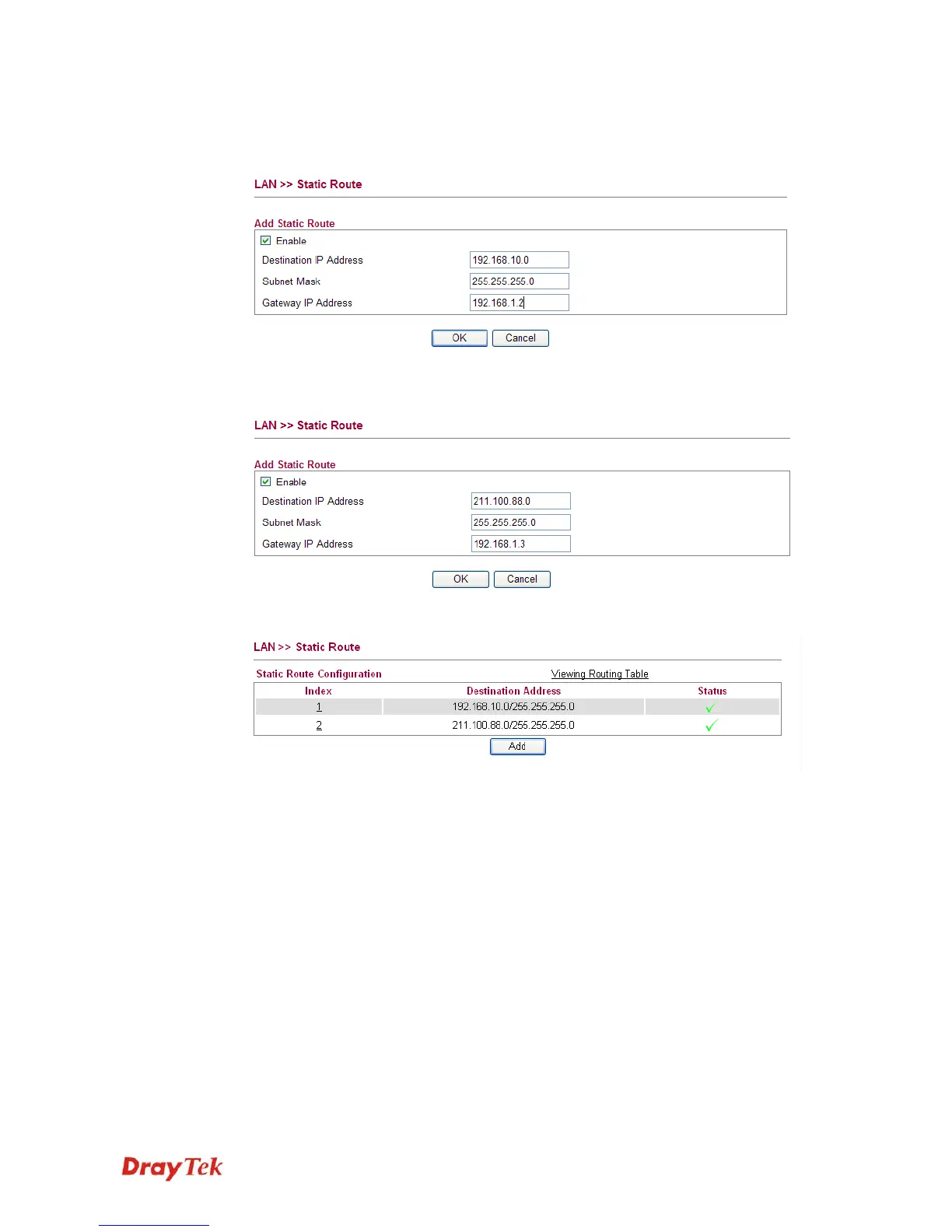

1. Click the LAN - Static Route and click Add. Check the Enable box. Please add a static
route as shown below, which regulates all packets destined to 192.168.10.0 will be
forwarded to 192.168.1.2. Click OK.
2. Return to Static Route page. Click Add again to add another static route as show below,
which regulates all packets destined to 211.100.88.0 will be forwarded to 192.168.1.3.
3. Verify current routing table.
3
3
.
.
3
3
.
.
7
7
B
B
i
i
n
n
d
d
I
I
P
P
t
t
o
o
M
M
A
A
C
C
This function is used to bind the IP and MAC address in LAN to have a strengthening control
in network. When this function is enabled, all the assigned IP and MAC address binding
together cannot be changed. If you modified the binding IP or MAC address, it might cause
you not access into the Internet.
Click LAN and click Bind IP to MAC to open the setup page.
