Delete
Remove the selected VLAN ID setting.
To delete a VLAN ID setting, simply select the one you want
to delete and click the Delete button.
Refresh
Renew current web page.
Profile Number Limit
Display the total number of the profiles to be created.
VLAN ID
Display the VLAN ID number.
Member
Display the LAN interface that is used to access into Internet
for such LAN profile with the VLAN ID number.
Untag
Display the LAN interface that packets transmitted to
Internet through such LAN profile with the VLAN ID
number is tagged or untagged.
H
H
o
o
w
w
t
t
o
o
a
a
d
d
d
d
a
a
n
n
e
e
w
w
8
8
0
0
2
2
.
.
1
1
Q
Q
V
V
L
L
A
A
N
N
p
p
r
r
o
o
f
f
i
i
l
l
e
e
1. Open LAN>>Switch and click the 802.1Q VLAN tab.
2. Click the Add button.

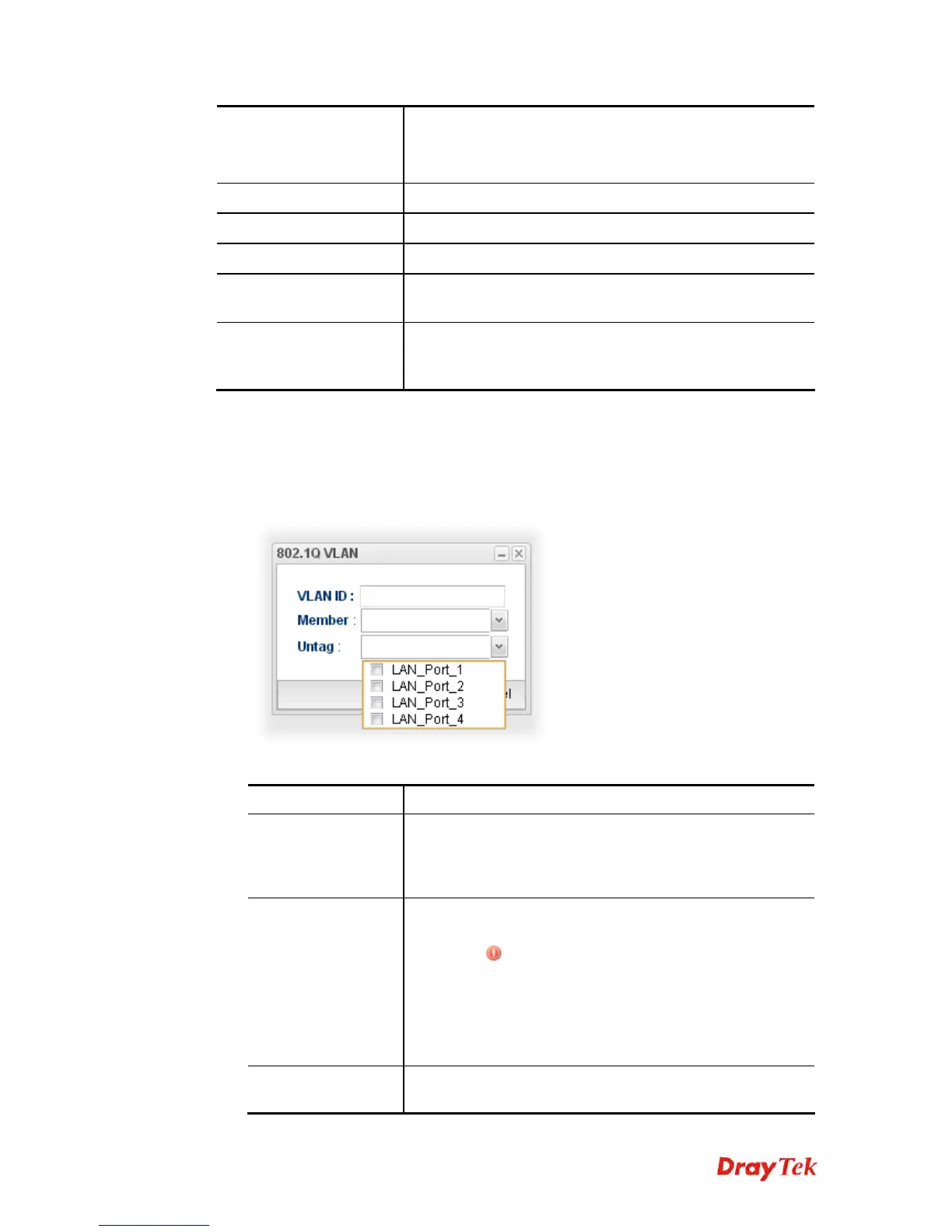

3. The following dialog will appear.
Available parameters are listed as follows:
Item Description
VLAN ID
Type the number as the VLAN ID. Type a number used for
identification on VLAN for your computer. Later, you have
to type the same ID number for each PC which wants to be
grouped within the same VLAN group.
Member
Determine which LAN interface can be used to access into
Internet for such LAN profile with the VLAN ID number.
If the icon
appears in front of the drop down list, it means
one of the selections has been chosen by other profile. You
cannot choose it. If you want to specify that one for such
profile, please exit this dialog to release that selection from
its original VLAN profile, than return this page and make the
selection again.
Untag
Determine if the packets transmitted to Internet through such
LAN profile with the VLAN ID number is tagged or not.
