Here provides an example about LAN to LAN IPsec tunnel established between Vigor2960
and Vigor2710.
C
C
o
o
n
n
f
f
i
i
g
g
u
u
r
r
i
i
n
n
g
g
V
V
i
i
g
g
o
o
r
r
2
2
9
9
6
6
0
0

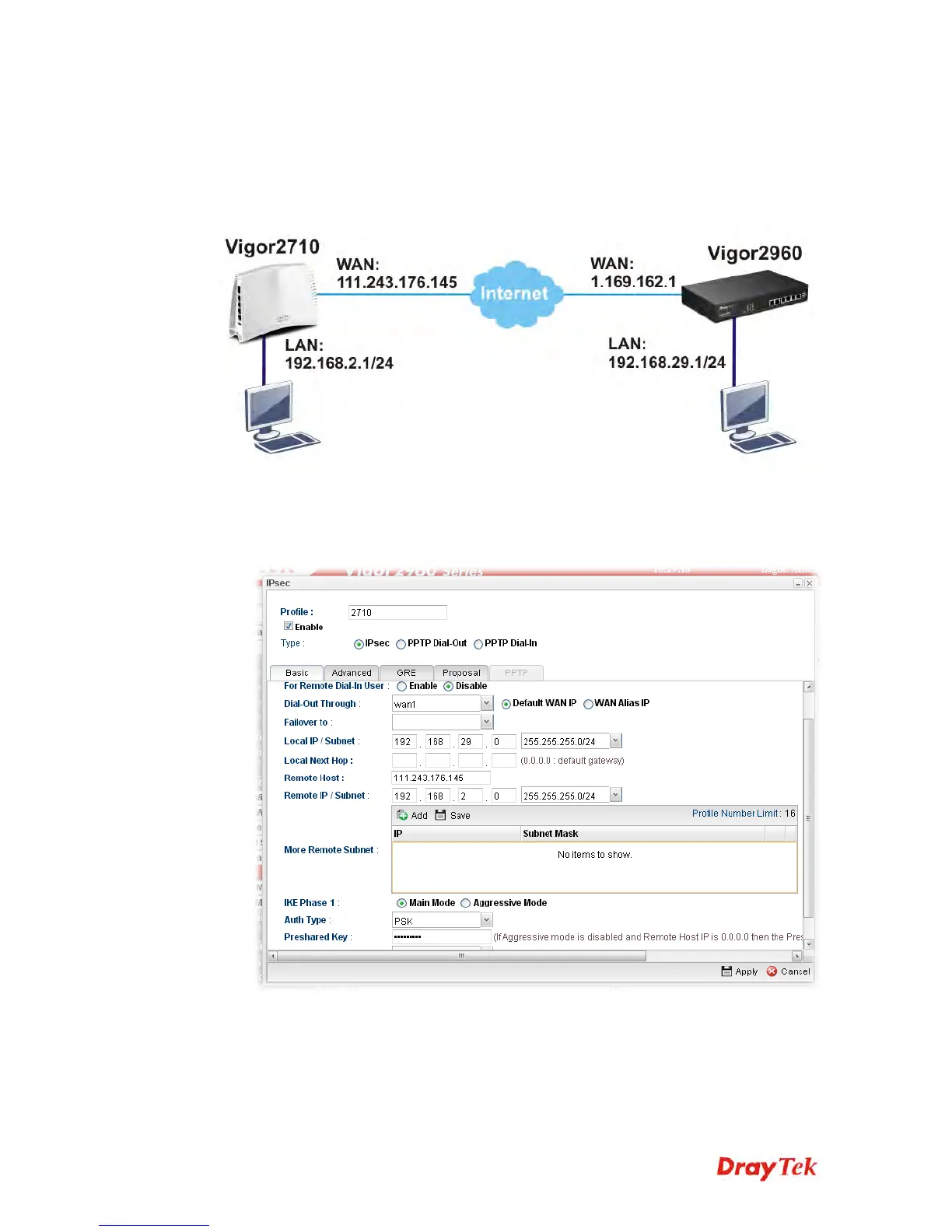

1. Access into the Web User Interfaceof Vigor2960 and open VPN and Remote Access
>> VPN Profiles to add a new VPN configuration.
Type the Pre-shared key and choose a WAN Profile. Specify Local IP/Subnet Mask
with 192.168.29.0/24. The Remote Host should be Vigor 2710's WAN IP address; And
the Remote IP/Subnet Mask should be192.168.2.0/24.
2. Click Apply to save the settings and return to previous page.
