For wall-mounting, the VigorAP has keyhole type mounting slots on the underside. You can
fit the AP at any axis (i.e. 12, 3, 6 or 9 O’Clock) to allow for cable entry from the most
convenient location if you are using side entry – note the position of the side entry cable
cutout.

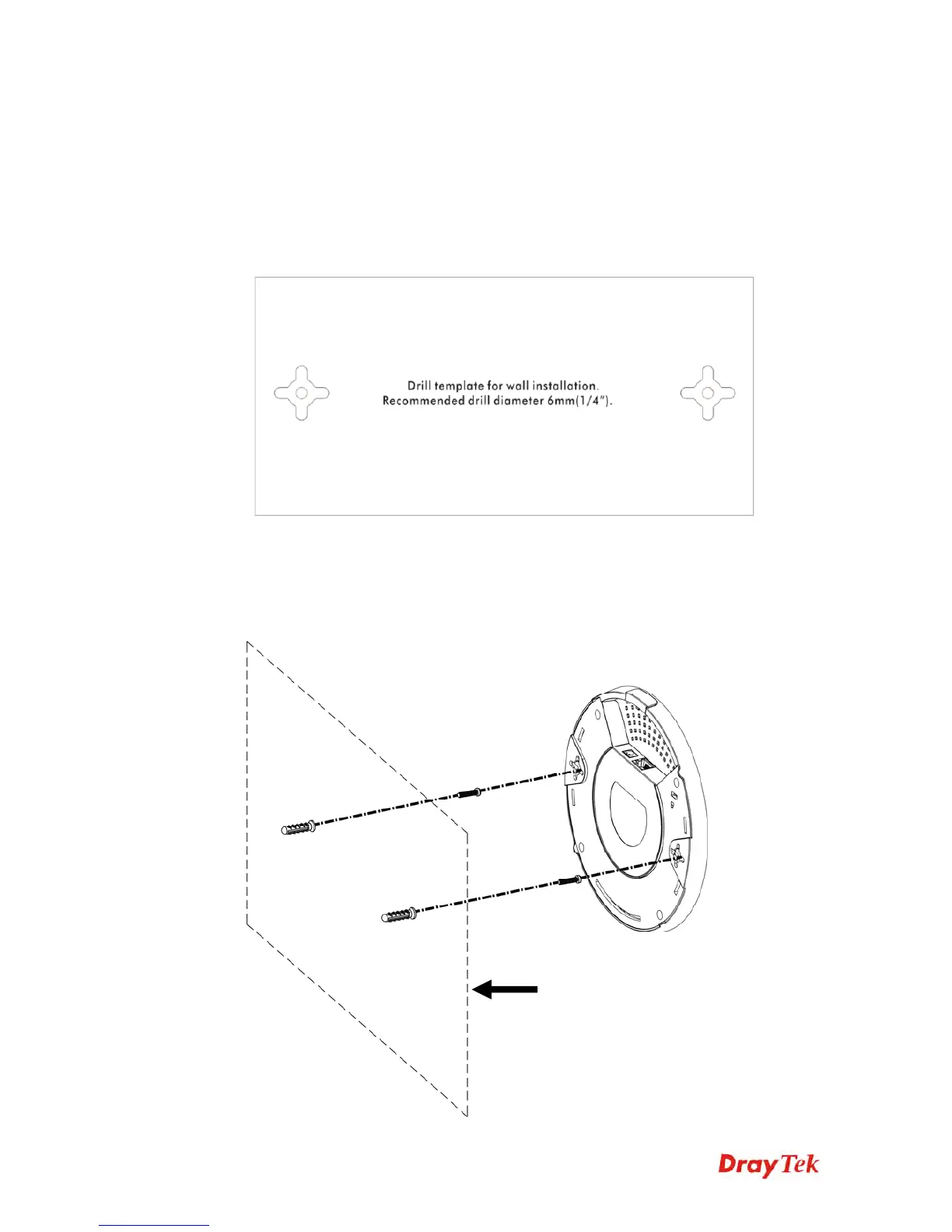

1. A template is provided on the VigorAP’s packaging box to enable you to space the
screws correctly on the wall
.
2. Place the template on the wall and drill the holes according to the recommended
instruction.
3. Fit screws into the wall using the appropriate type of wall plug (as shown in the ceiling
section) but do not use the ceiling bracket – the VigorAP hangs directly onto the
screws.
Wall (wooden, concrete,
plasterboard or others)
