LAG means Link Aggregation Group which groups some physical ports together to make a
single high-bandwidth data path. Thus it can implement traffic load sharing among the
member ports in a group to enhance the connection reliability.
I
I
I
I
-
-
4
4
-
-
1
1
L
L
A
A
G
G
S
S
e
e
t
t
t
t
i
i
n
n
g
g

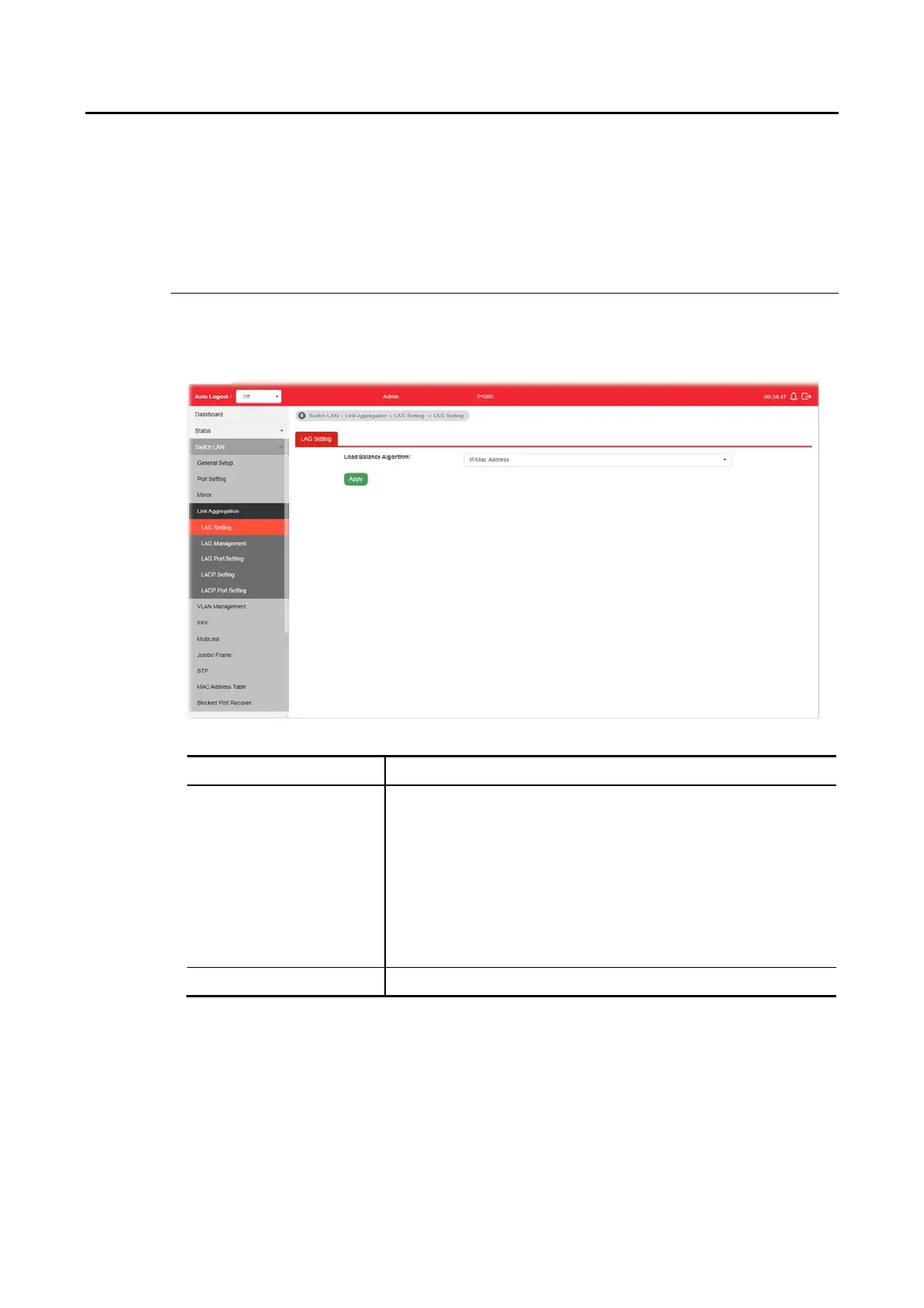

This page allows to configure Load Balance Algorithm for Link Aggregation.
Available settings are explained as follows:
Item Description
Load Balance Algorithm Select your Load balance algorithm.
 MAC address - Aggregated group will balance the traffic
based on different MAC addresses. Therefore, the
packets from different MAC addresses will be sent to
different links.
 IP/Mac Address - Aggregated group will balance the
traffic based on MAC addresses and IP addresses.
Therefore, the packets from same MAC addresses but
different IP addresses will be sent to different links.
Apply Apply the settings to the switch.
