EXT 1824G User’s Manual 2. Introduction
EXT 1824G-UM-COM-EN-03 16
2.2. System Configuration
2.2.1. Basic Configuration
Generally, the EXT 1824G detector is used in system configuration as illustrated below:

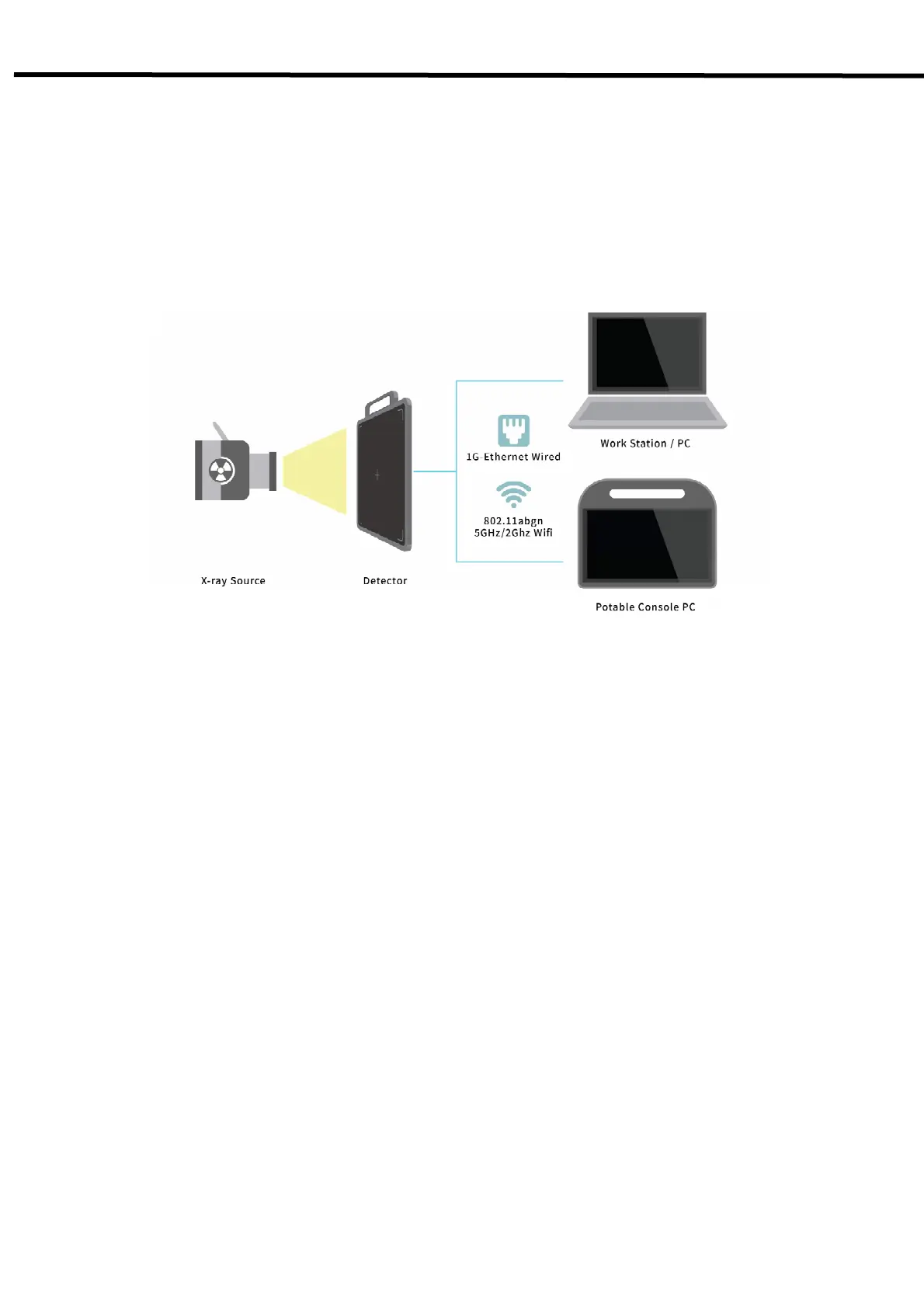

Figure 2.1 EXT 1824G System Configuration
