DRTECH EXT 1824G - Recommendation of Setting AED Sensing Area

EXT 1824G User’s Manual 6. Image Acquisition
EXT 1824G-UM-COM-EN-03 47
6.1.2.1. Recommendation of setting AED Sensing Area

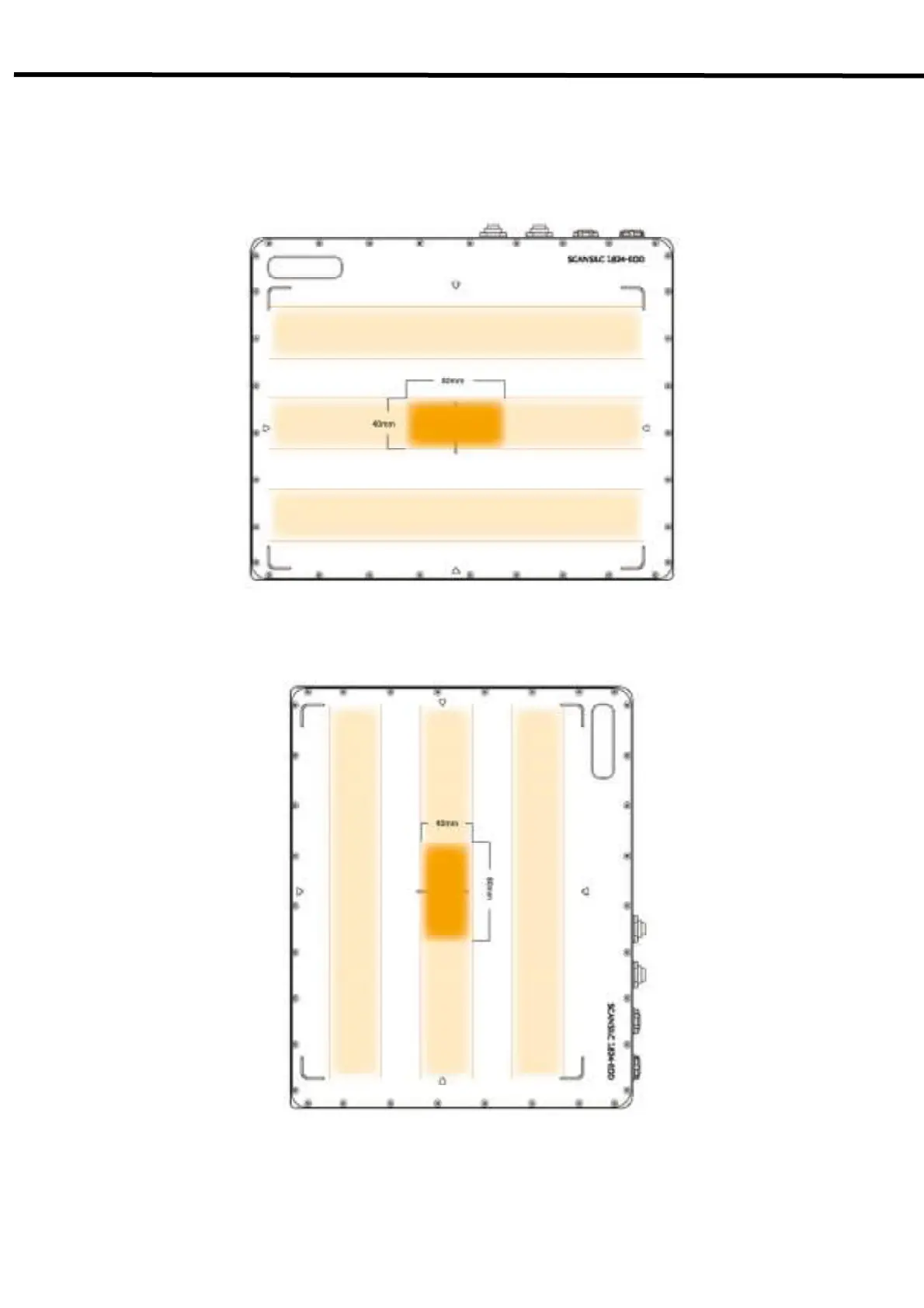

We suggest the collimated area on detector is wider than 4cm X 8cm, and keep along the vertical direction as shown
in figure 6.2 and 6.3.
Figure 6.2 Stand Environment with AED Mode
Figure 6.3. Stand Environment with AED Mode
