EXT 1824G User’s Manual 4. Detector Component
EXT 1824G-UM-COM-EN-03 29
4.3.2. Bluetooth Specification
Item Bluetooth Module
Standard Bluetooth 4.1
Data Rate 1 Mbps
Operating Frequency 2.4 ~ 2.48 GHz
Interface UART, PIO, AIO, SPI
Antenna PCB
Modulation GFSK
Power Consumption:
Depends on profiles,
12 mA typical
Security -
Operation Range
100 meters(depending on the customer’s design.)
Sensitivity -92.5 dBm at 0.1% BER

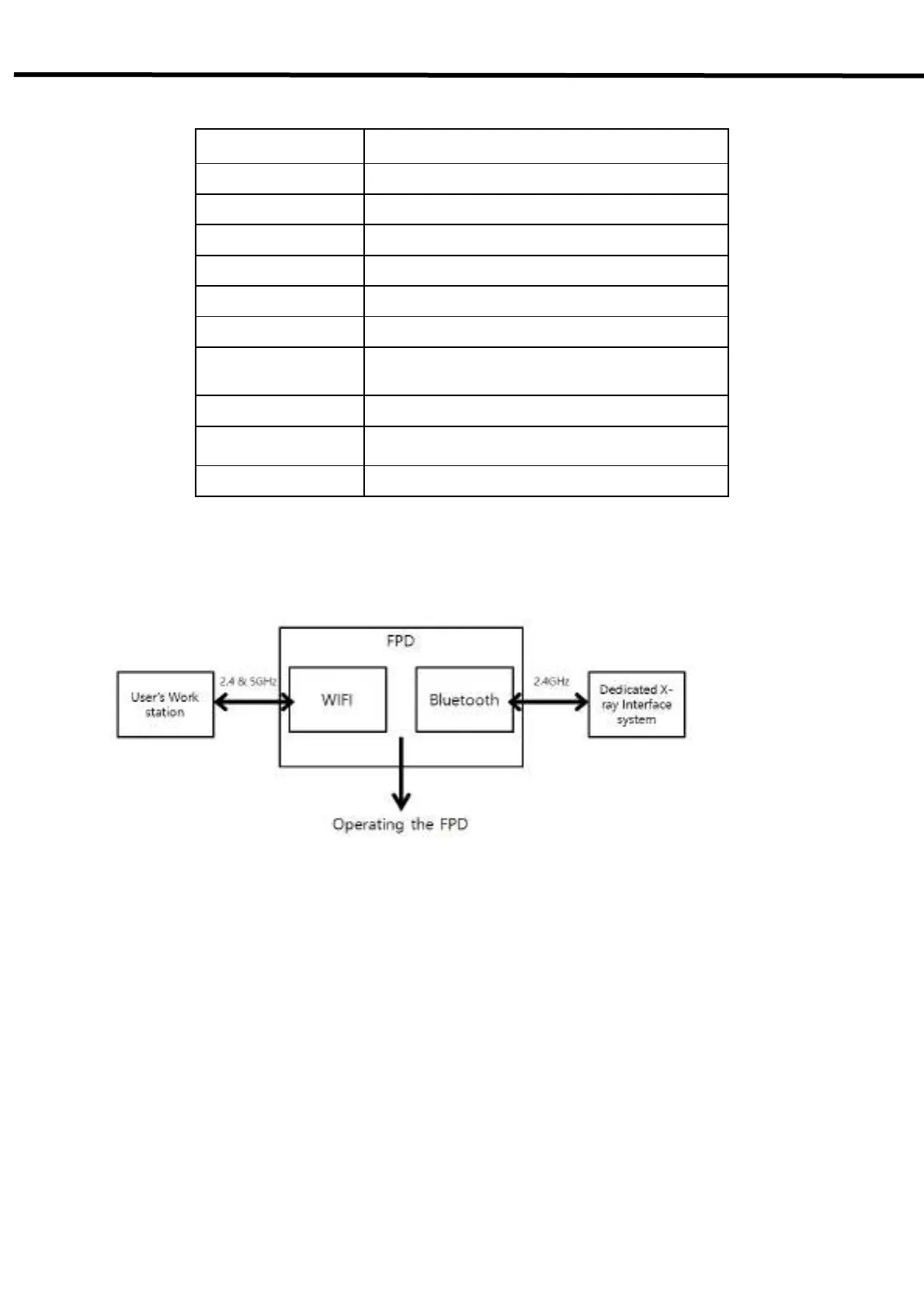

4.3.3. WIFI & Bluetooth Workflow
1. Give a signal from the dedicated x-ray interface to the bluetooth
2. FPD catches the signal from the bluetooth & X-ray
3. FPD operates and transmits images to the workstation
4. The workstation receives the images
