In the event of a breakdown
Dashboard fuses
The fusebox is located in the lower dashboard
(left-hand side).
To access the fuses, follow the same procedure
as that described for accessing the tools for
changing fuses.
For more information on Access to the tools,
refer to the corresponding section.

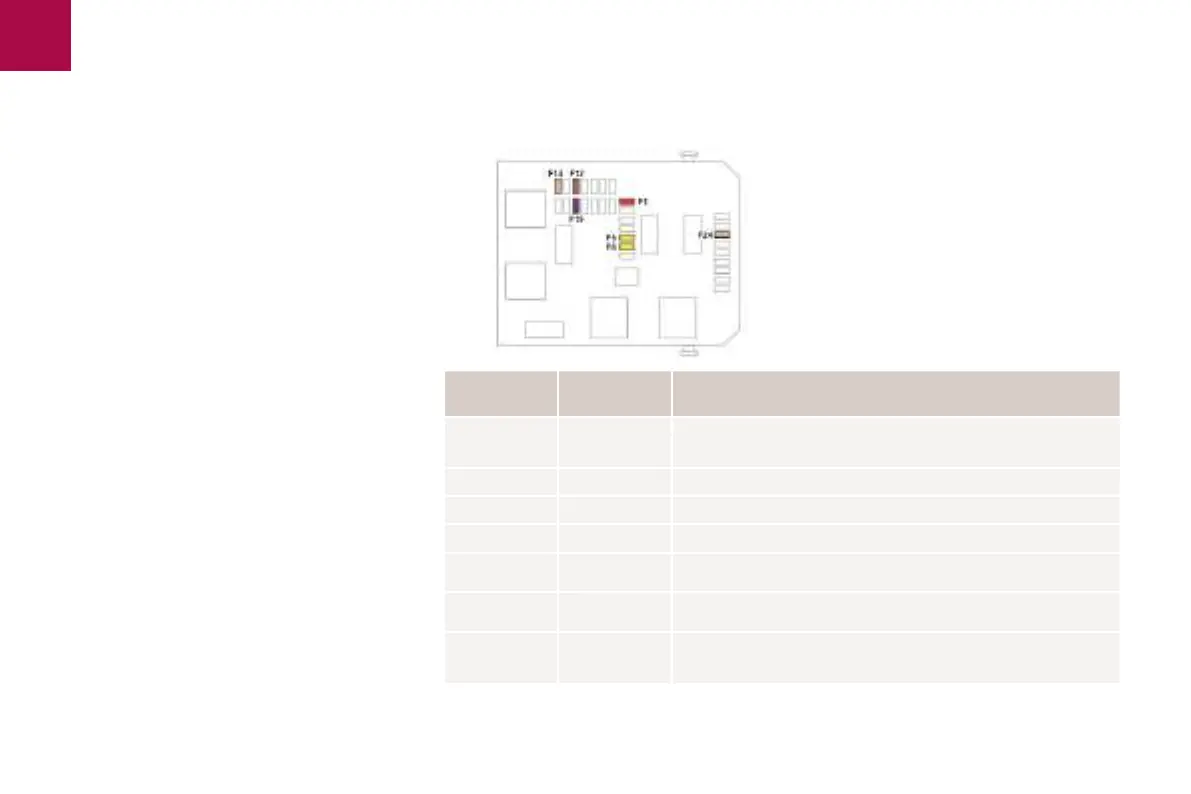

Fuse tables
Box 1
Fuse N° Rating (A) Functions
F1 10 A Electrochrome rear view mirror, radar, electric power steering.
F5 20 A Rear screenwash pump.
F6 20 A Front screenwash pump.
F12 7.5 A Diagnostic socket.
F14 5 A Emergency and assistance calls, alarm control unit.
F19 3
A Trailer interface unit, top of steering column.
F24 5 A Hi-Fi amplifier, parking sensors, camera, touch screen.
