DSC T-LINK TL250 User Manual

5
Section 3: Bell Follower Installation (Mode1)
3.1 Setup and Installation
3.1.1 Bell Follower Installation (Mode 1)
Install the T-Link TL250 in a DSC enclosure (model PC5003C) when used in a Bell Follower
configuration. Refer to section [036][99].
Connect the 12V
DC and GND terminals to the external 12V power source.
NOTE: Bell Follower mode can not be used in UL or ULC listed installations.
Refer to options [062] through [065].

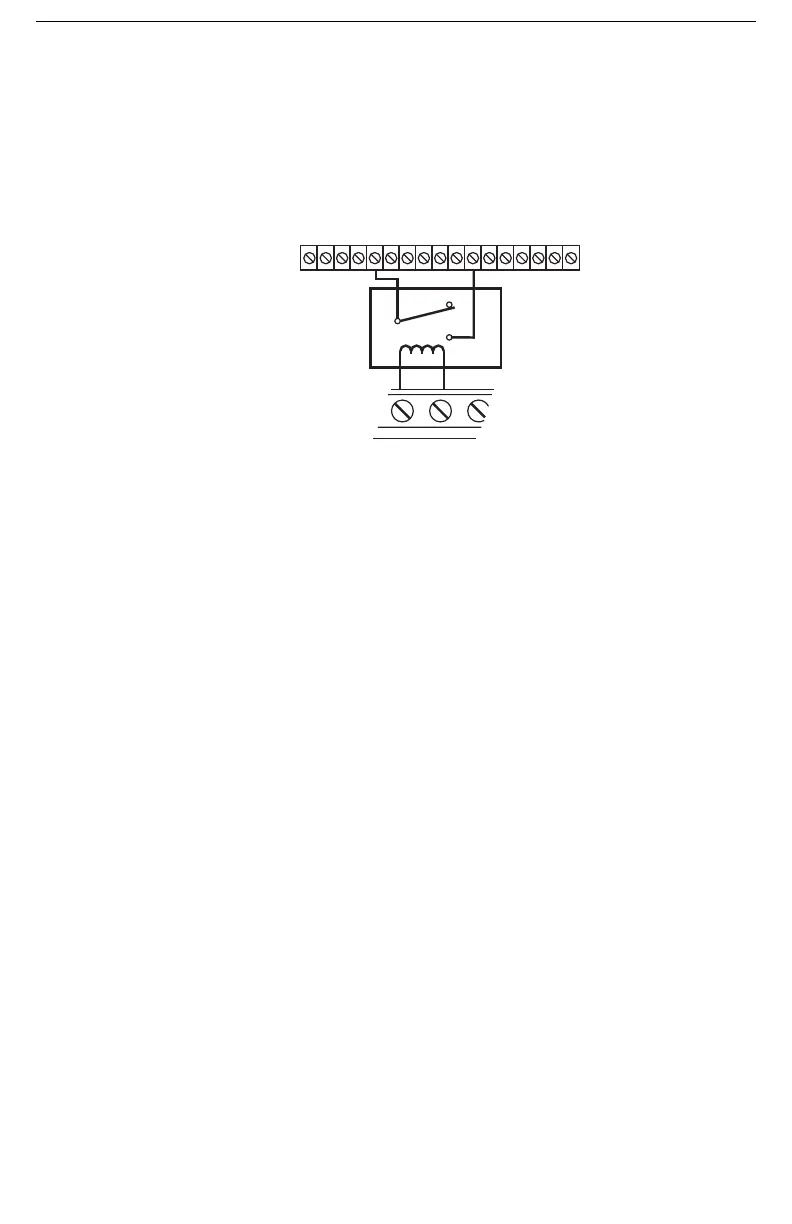

BELL+ BELL-
Alternate connection for
Control Panels where Bell
switches High
Relay
Com
NC
NO
+12V GND YX RX GND RED YEL GRN PGM1 PGM2 IN1 GND GNDIN2 IN3 IN4 EARTH
