Section 5: Standard Installation (Mode 4)

5.1 Power864 and Maxsys Panel Setup and Installation

Refer to the PC4020(CF) or PC5020(CF) Installation Manuals for control panel installations.

Mount the T-Link on the side wall of the PC4050C or PC4050CR cabinet. Refer to appendix C

for Network Protection installation instructions.

Remove power from the control panel before any connections are made to the T-Link TL250.

Connect the 12V

DC and GND terminals to the panel auxiliary power output. Connect the sup-

plied cable from the T-Link TL250 white connector to the PC-Link header of the control panel.

The black wire of the PC-Link cable is pin 1 on the PC-Link header for the PC5020 v3.2 or

higher control panels. The PC-Link header is polarized on the PC4020 v3.31 or higher control

panel. Connect the e-ground to a proper earth-ground connection.

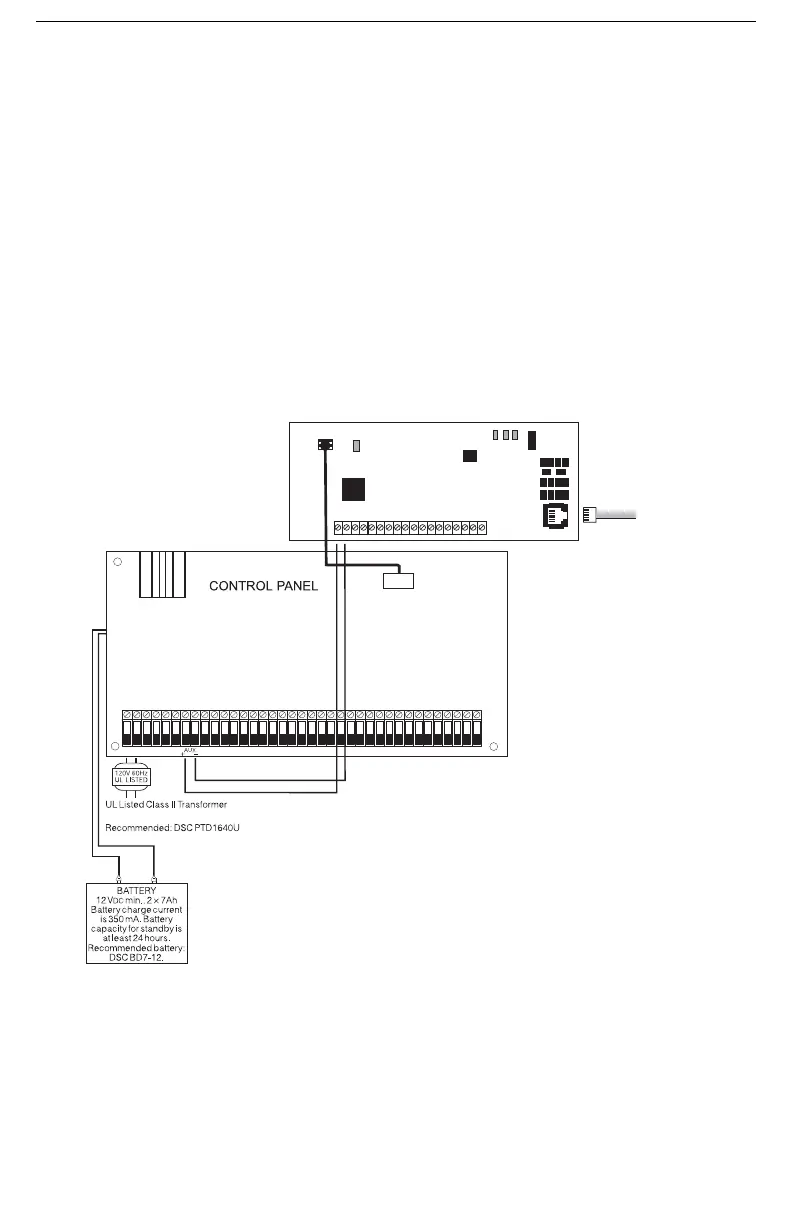

5.2 Standard Connection with PC4020(CF)/PC5020(CF)

CAUTION: All circuits are supervised and power limited. Refer to section 5.4, UL Listed Com-

mercial Fire Systems diagram for wire routing. Do NOT route any wiring over the circuit

boards. Maintain at least 1” (25.4mm) separation between circuit board and wiring.

A minimum of 1/4” (7mm) separation must be maintained at all points between non power lim-

ited wiring and power limited wiring.

+12V GND TX RX GND RED BLK YEL GRN PGM1PGM2 IN1 GND IN2 IN3 GND IN4 EARTH

Network

PC-LINK

SUPERVISED

STAT

Network Connection

Use only CAT5 cable

(300ft / 100m max.)

Supervised

WARNING!: Do not connect transformer

to receptacle controlled by a switch. The

transformer must be UL Listed and have

a restraining means.

V = 12VDC

I = 250mA (275mA with PGM or PC5108)

RED

BLK

ACT

SPD

16.0V@40VA
