DSE 5210 - Installation Instructions for DSE 5210; Panel Cut-Out Dimensions; Cooling and Ventilation Requirements

DSE Model 5210 Automatic Start Engine Management and Instrumentation System Operators Manual
26 057-011 5210 OPERATING MANUAL ISSUE 5.1 18/06/2007 AM
8 INSTALLATION INSTRUCTIONS
The model DSE 5210 Module has been designed for front panel mounting. Fixing is by 4 clips for easy assembly.

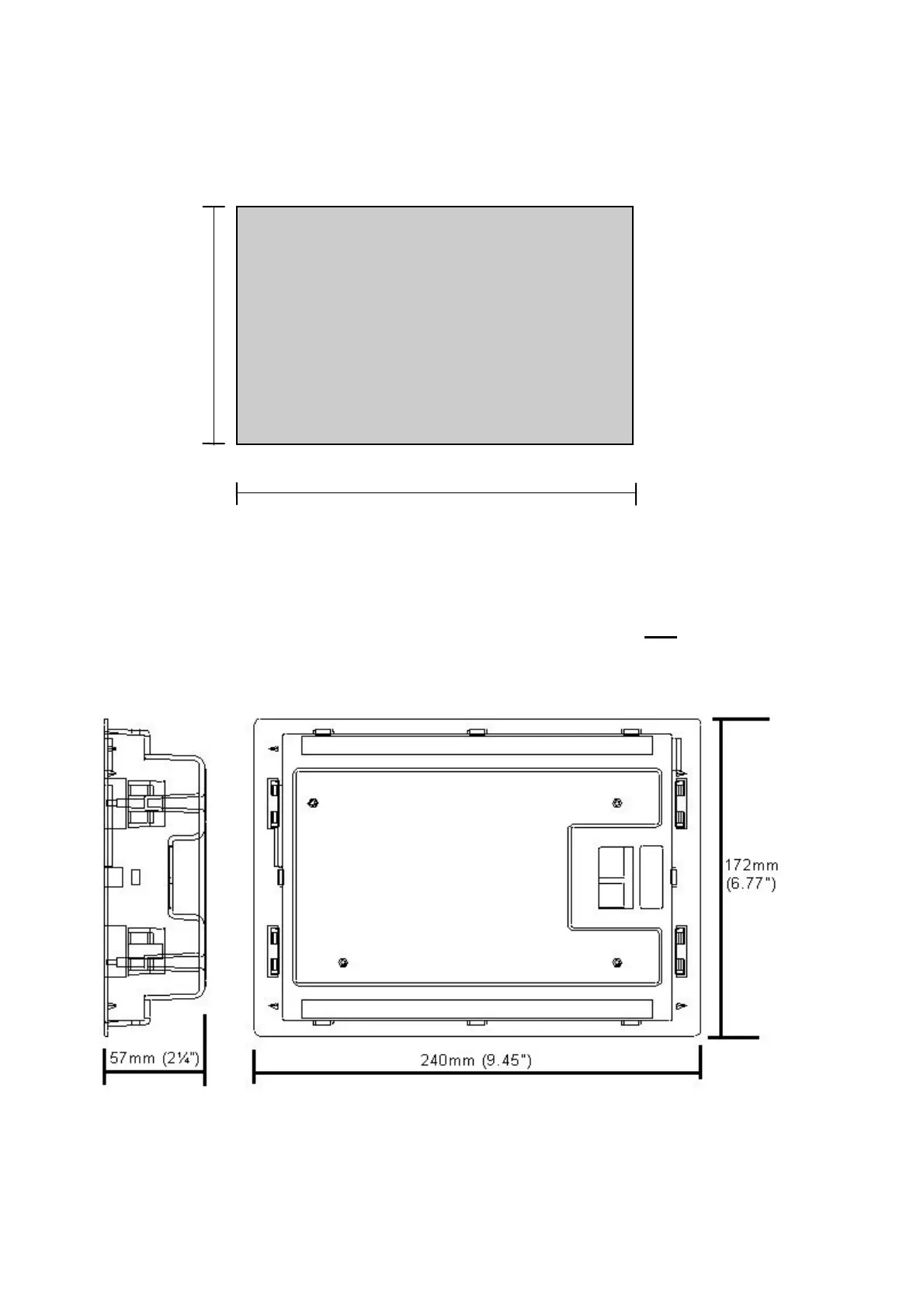

8.1 PANEL CUT-OUT
220.00mm
(8.7”)
Maximum panel thickness – 8mm (0.3”)
In conditions of excessive vibration the module should be mounted on suitable anti-vibration mountings.
8.2 COOLING
The module has been designed to operate over a wide temperature range -30 to +70º C. Allowances should be
made for the temperature rise within the control panel enclosure. Care should be taken NOT
to mount possible
heat sources near the module unless adequate ventilation is provided. The relative humidity inside the control
panel enclosure should not exceed 95%.
8.3 UNIT DIMENSIONS
Panel cut-out 220mm x 160mm ( 8.7” x 6.3”)
160.00mm
(6.3”)
