DSE 5210 - 5210 IDMT Tripping Curves

DSE Model 5210 Automatic Start Engine Management and Instrumentation System Operators Manual
057-011 5210 OPERATING MANUAL ISSUE 5.1 18/06/2007 AM 43

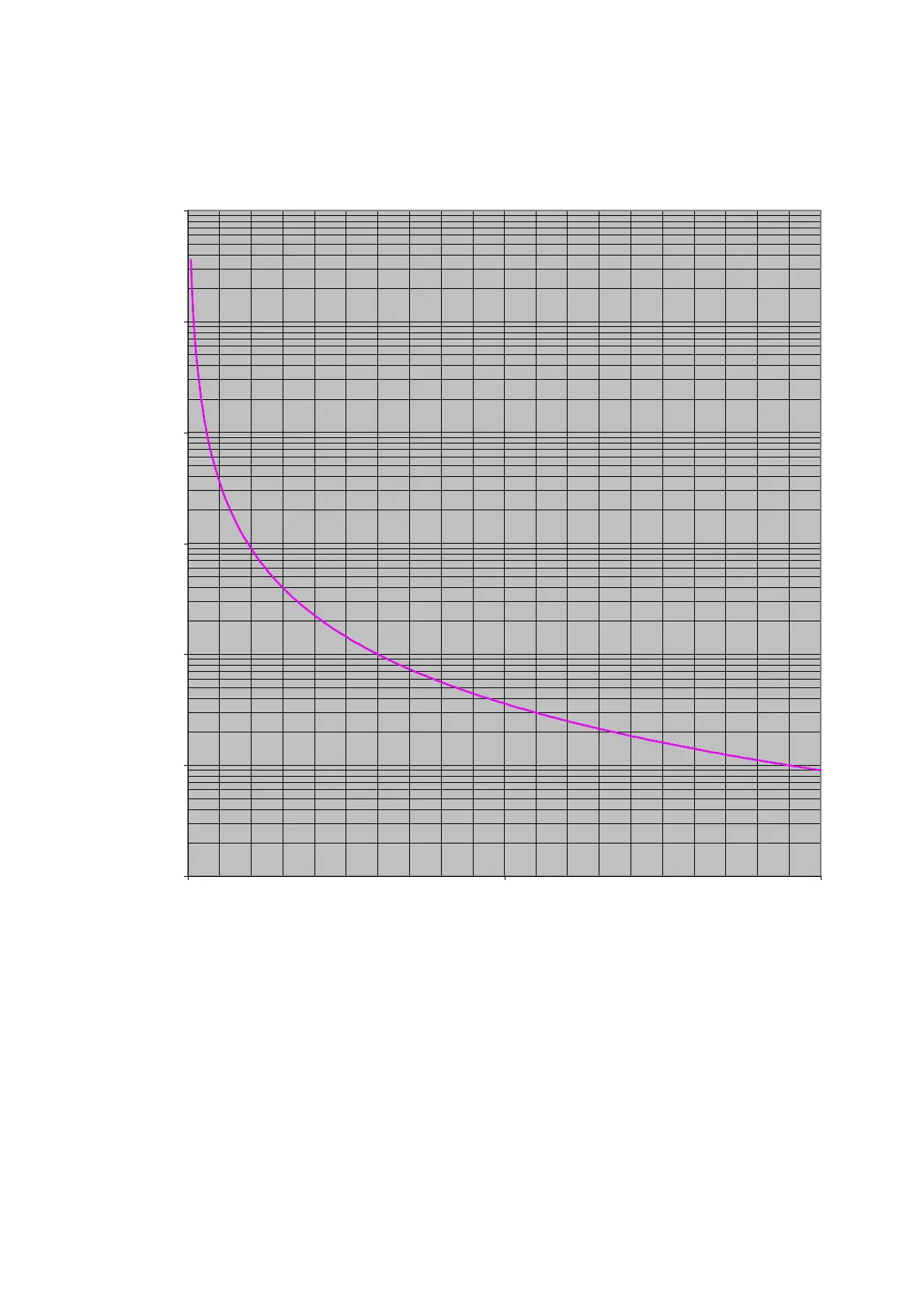

16.2 5210 IDMT TRIPPING CURVES (TYPICAL)
5210 Delayed over-current protection
1
10
100
1000
10000
100000
1000000
123
Current as a multiple of the trip-point setting (tripping curve = 36)
Tripping time in seconds
