DSE Model 5210 Automatic Start Engine Management and Instrumentation System Operators Manual
6 057-011 5210 OPERATING MANUAL ISSUE 5.1 18/06/2007 AM
3 OPERATION
The following description details the sequences followed by a module containing the standard ‘factory
configuration’. Always refer to your configuration source for the exact sequences and timers observed by any
particular module in the field.

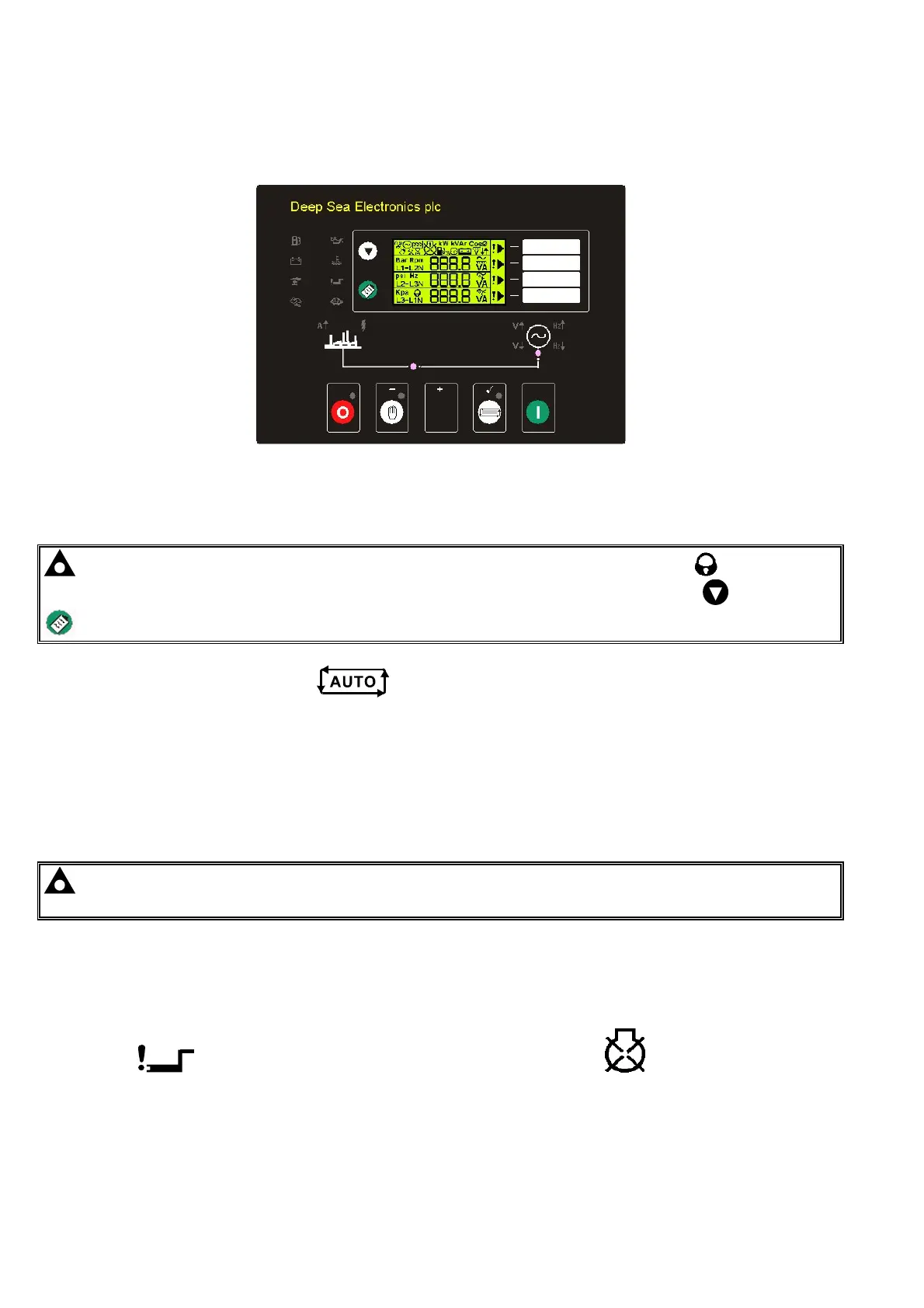

3.1 AUTOMATIC MODE OF OPERATION
NOTE:- If a digital input configured to panel lock is active, the LCD will display the
icon. When in panel lock, changing module modes will not be possible. Viewing the instruments and event logs
is NOT affected by panel lock.
This mode is activated by pressing the pushbutton. An LED indicator beside the button confirms this
action.
When a Remote Start signal is applied to the remote start input, the following sequence is initiated:-
The Remote Start Active indicator illuminates (if configured).
To allow for false signals the Start Delay timer is initiated. After this delay, if the pre-heat output option is selected
then the pre-heat timer is initiated, and the corresponding auxiliary output (if configured) will energise.
NOTE:- If the Remote Start signal is removed during the Start Delay timer, the unit will return to a
stand-by state.
After the above delays, the Fuel Solenoid is energised, and then one second later, the Starter Motor is engaged.
The engine is cranked for a pre-set time period. If the engine fails to fire during this cranking attempt then the
starter motor is disengaged for the pre-set rest period. Should this sequence continue beyond the set number of
attempts, the start sequence will be terminated and
Fail to Start
fault will be displayed accompanied by a flashing shutdown symbol.
