9 MAINTENANCE ALARM
Depending upon module configuration one or
more levels of maintenance alarm may occur
based upon a configurable schedule.
There are three maintenance alarms in the
DSE86xx/DSE86xx series V3 and above, and
one level of maintenance alarm in prior
versions.
Example 1

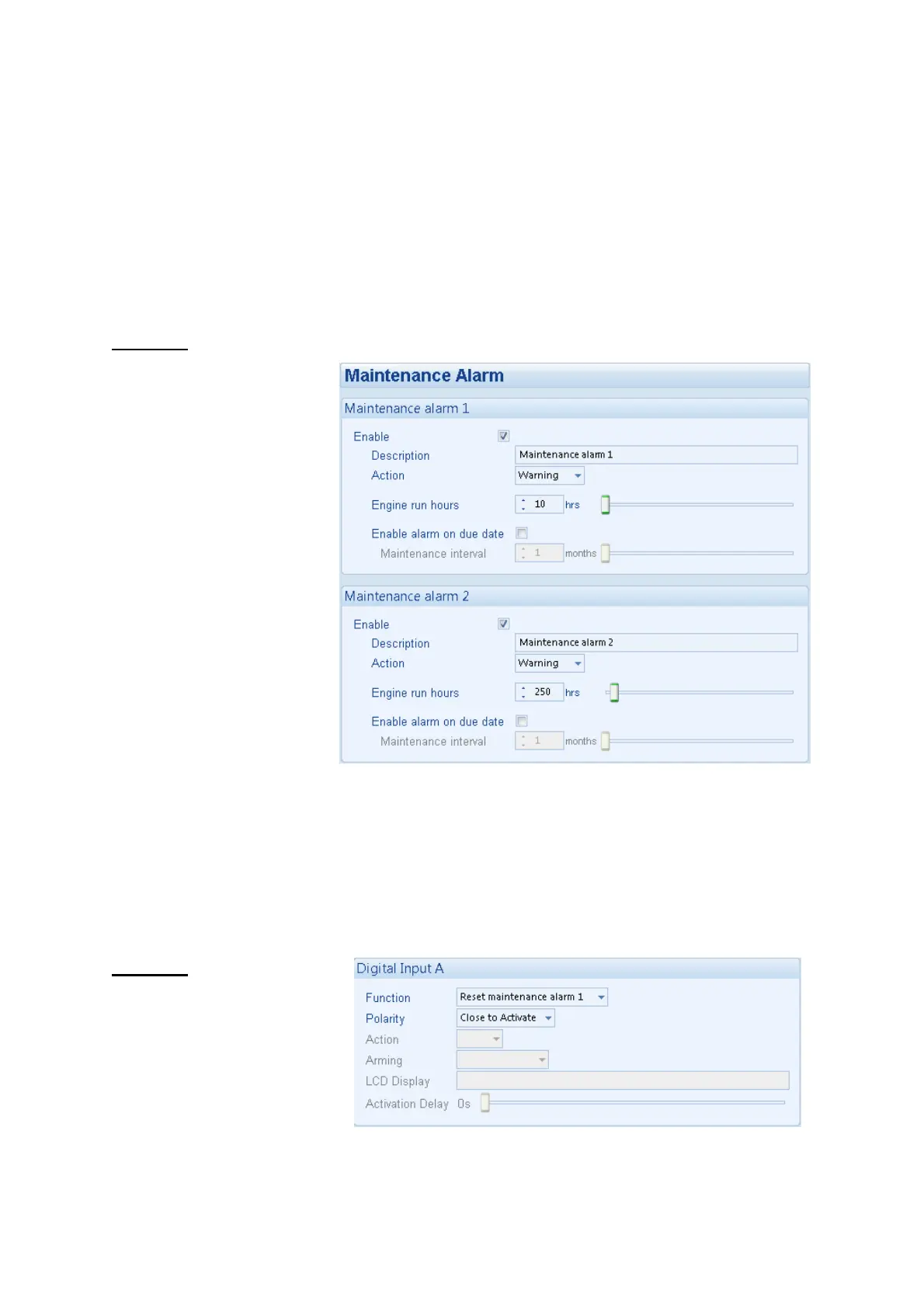

Screen capture from DSE
Configuration Suite Software
showing the configuration of
Maintenance Alarm 1 and
Maintenance Alarm 2.
When activated, the
maintenance alarm can be
either a warning (set
continues to run) or shutdown
(running the set is not
possible).
The site service engineer
normally performs resetting
the maintenance alarm after
performing the required
maintenance.
The method of reset is either
by:
• Activating an input that has been configured to maintenance x reset, where x is the number of
the maintenance alarm (1 to 3).
• Pressing the maintenance reset button in the DSE Configuration Suite, Maintenance section.
• Maintenance reset on module front panel, on the display Engine, maintenance alarm x, by
pressing the Stop button till it resets.
Example 2
Screen capture from DSE
Configuration Suite Software
showing the configuration of a
digital input for Reset
Maintenance Alarm 1.
