DSEGenset DSE8610 User Manual

Protections
90
8.2 INDICATIONS
Indications are non-critical and often status conditions. They do not appear on the LCD of the module
as a text message. However, an output or LED indicator can be configured to draw the operator’s
attention to the event.

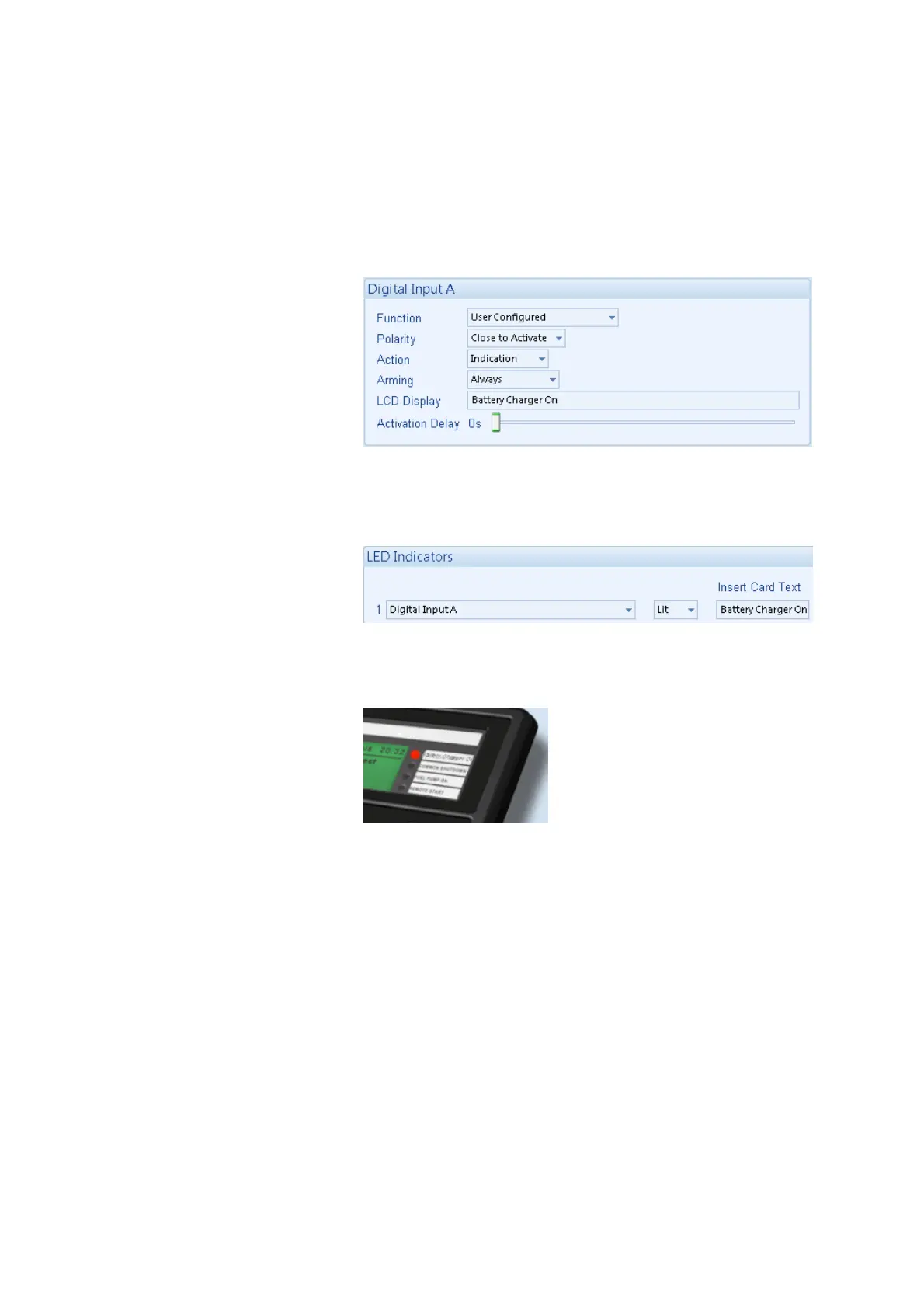

Example
• Input configured for
indication.
• The LCD text will not
appear on the module
display but can be added
in the configuration to
remind the system
designer what the input is
used for.
• As the input is configured
to Indication there is no
alarm generated.
• LED Indicator to make
LED1 illuminate when
Digital Input A is active.
• The Insert Card Text
allows the system
designer to print an insert
card detailing the LED
function.
• Sample showing
operation of the LED.
