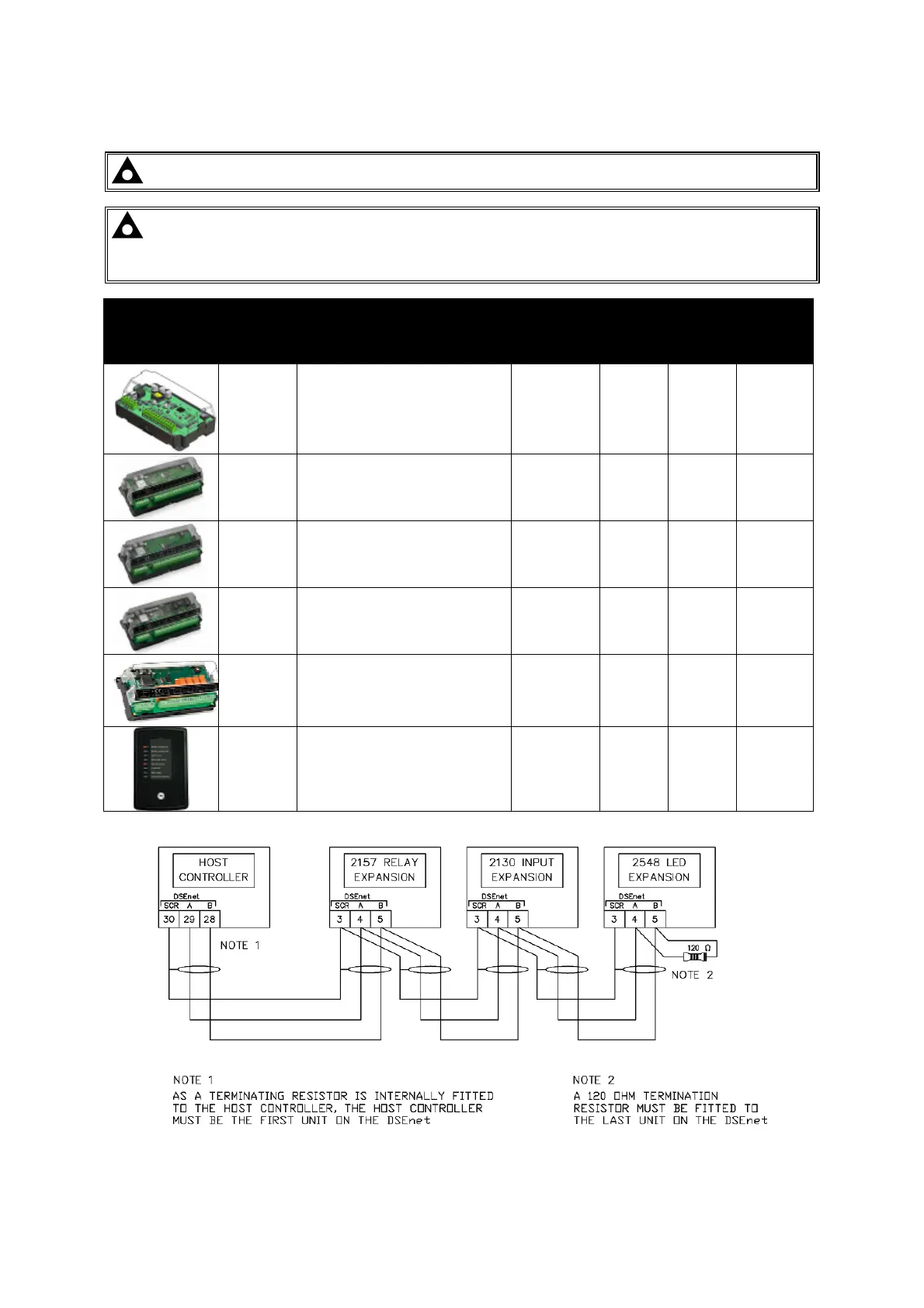

15.4 DSENET EXPANSION MODULES
NOTE: A maximum of twenty (20) expansion modules can be connected to the DSENet®.
NOTE: DSENet® utilises an RS485 connection. Using Belden 9841 (or equivalent) cable
allows for the expansion cable to be extended to a maximum of 1.2km.
DSE Stock and supply Belden 9841 cable. DSE Part Number 016-030.
Item Description
DSE Part numbers
Max No.
supported
Model order
number
Sales
literature
Operator
manual
Installation
Instruction
s
4
Model DSE2130 expansion input module
provides additional analogue and digital
inputs for use with the DSE8600 series
controller.
2130-001-00 055-060 057-082 053-033
4
Model DSE2131 Ratio-metric input
expansion module provides additional
restive, digital, 0-10V and 4-20ma inputs
for use with the controller.
2131-001-00 055-115 057-139 053-125
4
Model DSE2133 RTD/Thermocouple
input expansion module provides
additional RTD and thermocouple inputs
for use with the controller.
2133-001-00 055-114 057-140 053-126
4
Model DSE2152 Ratio-metric output
expansion module provides additional 0-
10V and 4-20ma outputs for use with the
controller.
2152-001-00 055-112 057-141 053-134
10
Model DSE2157 expansion relay module
provides eight additional voltage free
relays for use with the DSE8600 series
controller
2157-001-00 055-061 057-083 053-034
10
Model DSE2548 expansion LED module
provides additional LED indications,
internal sounder and remote lamp
test/alarm mute for use with the
DSE8600 series controller.
2548-001-00 055-062 057-084 053-032
