3.8.10 CONNECTION TO COMPANY INFRASTRUCTURE ETHERNET
Requirements
• DSE8610
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• PC with Ethernet port and Windows Internet Explorer 6 or above, Firefox
Ethernet cable wiring detail
10baseT/100baseT
Pin Connection 1 (T568A) Connection 2 (T568A)
1
white/green stripe white/green stripe
2
green solid green solid
3
white/orange stripe white/orange stripe
4
blue solid blue solid
5
white/blue stripe white/blue stripe
6
orange solid orange solid
7
white/brown stripe white/brown stripe
8
brown solid brown solid
NOTE: DSE Stock a 2m (2yds) Ethernet Cable – Part number 016-137. Alternatively they
can be purchased from any good PC or IT store.

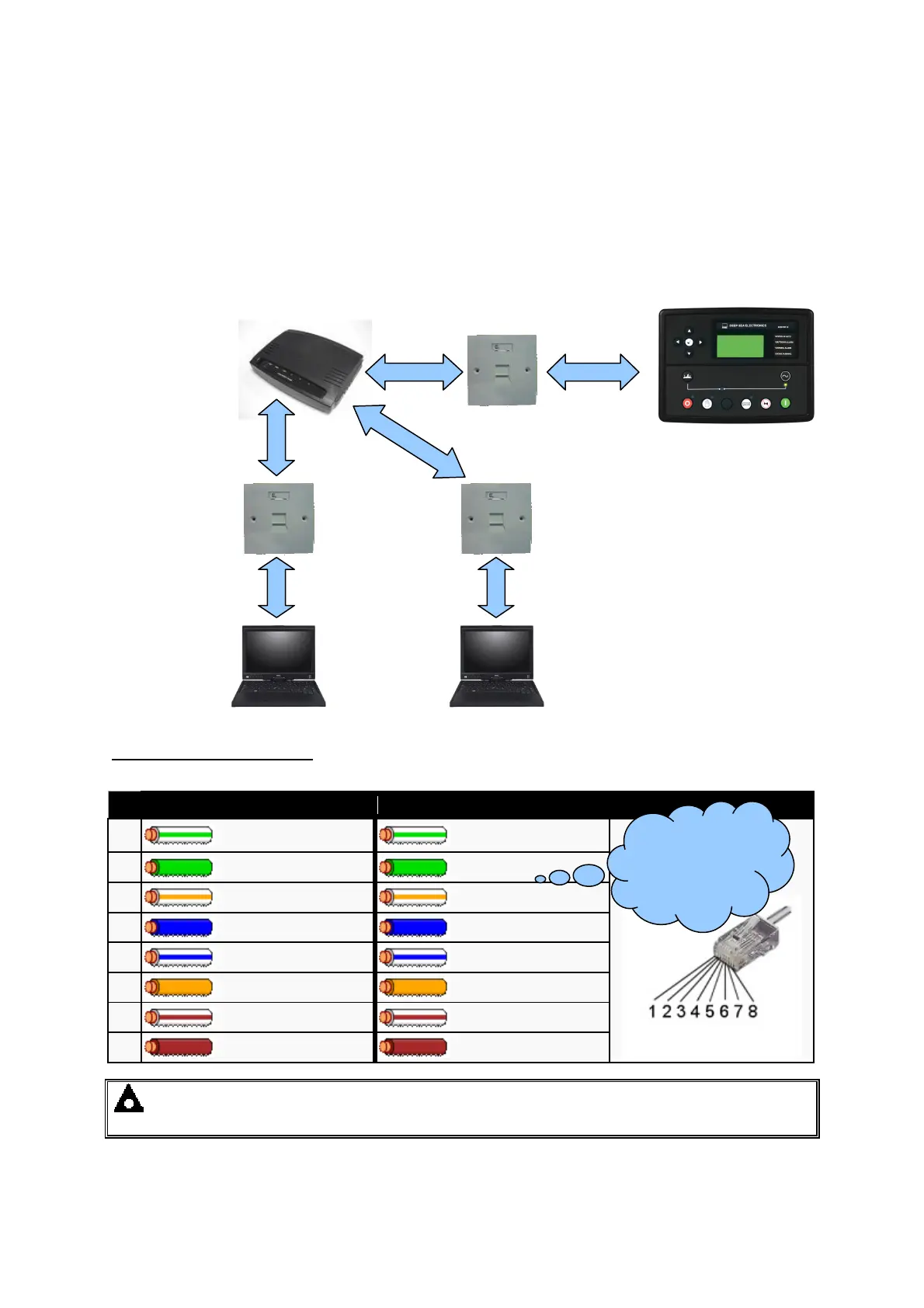

Ethernet cable
PC Network
wall connection
sockets
Ethernet router
or ADSL router
For the advanced
Engineer, this cable
has both ends
terminated as T568A
(as shown below) or
T568B.

DSEGenset DSE8610 Specifications

General

Brand	DSEGenset
Model	DSE8610
Category	Controller
Language	English
